Wichard Marine Self-Locking Long D Shackle 8mm Diameter - 5/16 Inch for Industrial Applications

Self-Locking Long D Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.146

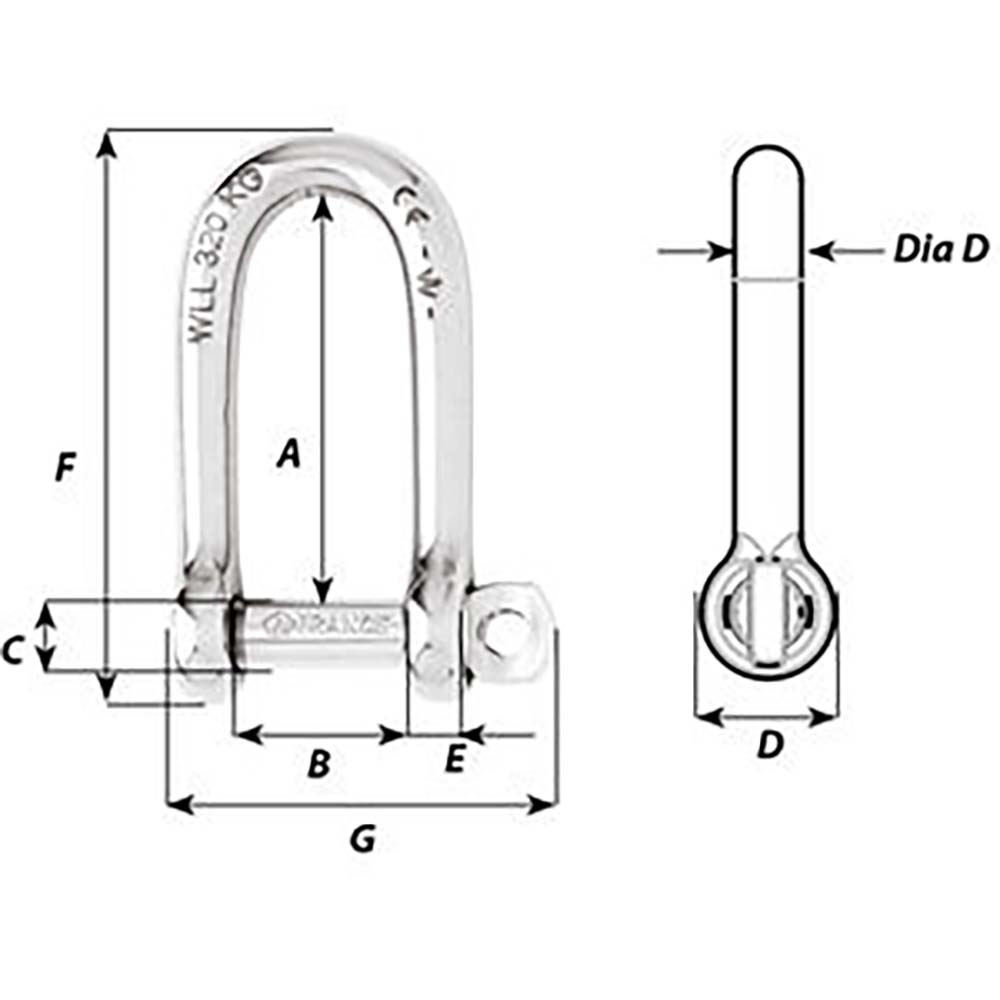

Dimensions (see 2nd image):

• A (inch) 1-49/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-33/64"
• G (inch) 1-39/64"

The Wichard Marine Self-Locking Long D Shackle, part number 1214W, is crafted from durable grade 316L stainless steel, ensuring superior corrosion resistance and strength for demanding industrial use. This shackle features a self-locking mechanism where the pin is securely engaged into one of the indentations, eliminating the risk of loosening due to vibrations. Its robust construction provides outstanding working and breaking loads, making it suitable for heavy-duty applications where safety and reliability are paramount. With a working load limit of 1,190 pounds and a breaking load of 5,950 pounds, this shackle is designed to withstand significant stress in various industrial environments. The compact weight of approximately 0.33 pounds allows for easy handling and installation without compromising strength or durability. This shackle is ideal for standard applications requiring additional length, as well as attachment tasks involving blocks or heads, providing versatile functionality across multiple scenarios. Its CE marking and batch number attest to compliance with industry standards, ensuring quality and safety. The dimensions of the shackle, including an overall length of about 2-33/64 inches and a width of 5/8 inch, make it compatible with a wide range of rigging and lifting setups. Whether used in marine, industrial, or construction environments, the Wichard Marine Self-Locking Long D Shackle offers a reliable, secure connection solution built to endure harsh conditions and heavy loads.

Features:

• Self-locking mechanism: pin secures into one of the indentations for enhanced safety

• Material: forged grade 316L stainless steel for corrosion resistance

• High load capacity: working load limit of 1,190 pounds and breaking load of 5,950 pounds

• Design: long D shape with 5/16 inch diameter for versatile applications

• Standards: CE marked with batch number for quality assurance

• Application: suitable for standard and attachment applications such as blocks and heads

• Lightweight: approximately 0.33 pounds for ease of handling
