SKU:97631

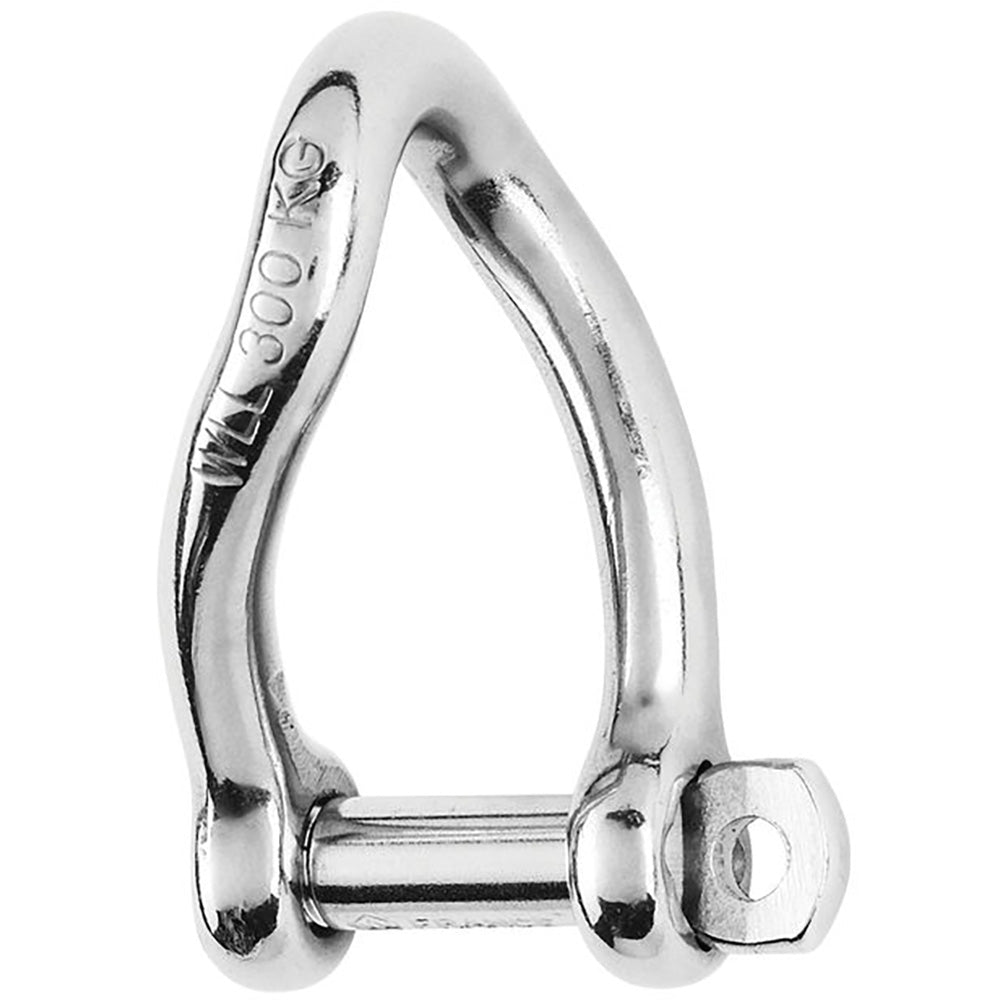

Wichard Marine Self-Locking Twisted Shackle 10mm Diameter Part 1225W

Wichard Marine Self-Locking Twisted Shackle 10mm Diameter Part 1225W

Regular price $71.04 USD
Sale price $71.04 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for applications where a 90 angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load: (lb) 9920 / (kg) 4500
  • Weight: (lb) 0.28 / (g) 127

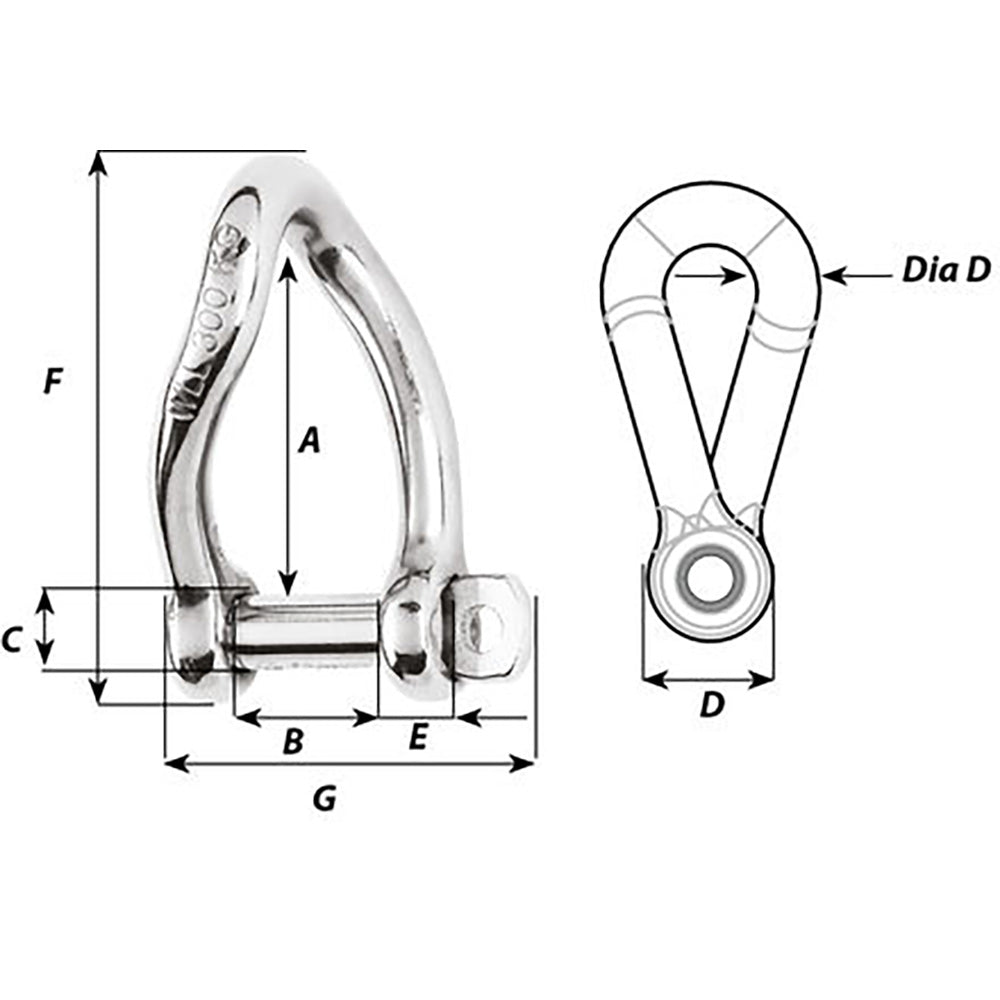

Dimensions:

  • A: (inch) 1 31/32" / (mm) 50
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 3/4" / (mm) 19
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 23/64" / (mm) 9
  • F: (inch) 2 29/32" / (mm) 74

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Twisted Shackle, with a 10mm (13/32 inch) diameter, offers a secure and reliable connection for demanding applications. Crafted from high-grade 316L stainless steel, this shackle provides exceptional corrosion resistance, making it ideal for marine environments. Its self-locking pin engages securely into one of the indentations, eliminating the risk of loosening due to vibrations and ensuring safety during operation. This feature makes it particularly suitable for applications requiring a 90-degree twist setup, such as attaching unarticulated parts like blocks on a rail or other rigging components. The robust construction supports a working load of 3,170 pounds (1,440 kg) and a breaking load of 9,920 pounds (4,500 kg), offering a high margin of safety for heavy-duty tasks. Weighing approximately 0.28 pounds (127 grams), the shackle is compact yet durable, designed to withstand significant forces in demanding environments. Its dimensions facilitate easy installation and secure fastening, with key measurements including a length of about 1 31/32 inches (50 mm) and a width of 25/32 inches (20 mm). The design incorporates a D diameter of 25/64 inches (10 mm) and an overall height of 23/64 inches (9 mm), ensuring compatibility with various rigging setups. The Wichard 1225W is equipped with a working load limit (WLL) suitable for industrial applications, calculated with a safety factor of five times the breaking load, providing confidence in its performance. Whether used on boats, in industrial settings, or for other heavy-duty applications, this self-locking twisted shackle combines strength, safety, and ease of use to meet rigorous demands. Sold individually, it is a reliable choice for professionals needing a high-quality, corrosion-resistant fastening component.

Features:

  • Self-locking pin forged from grade 316L stainless steel for secure connection
  • Engages into indentations to prevent loosening caused by vibrations
  • Supports high working and breaking loads suitable for demanding environments
  • Ideal for applications requiring a 90-degree twist setup, such as marine rigging
  • Compact design with precise dimensions for easy installation and reliable fastening

Only 4 piece in stock!
