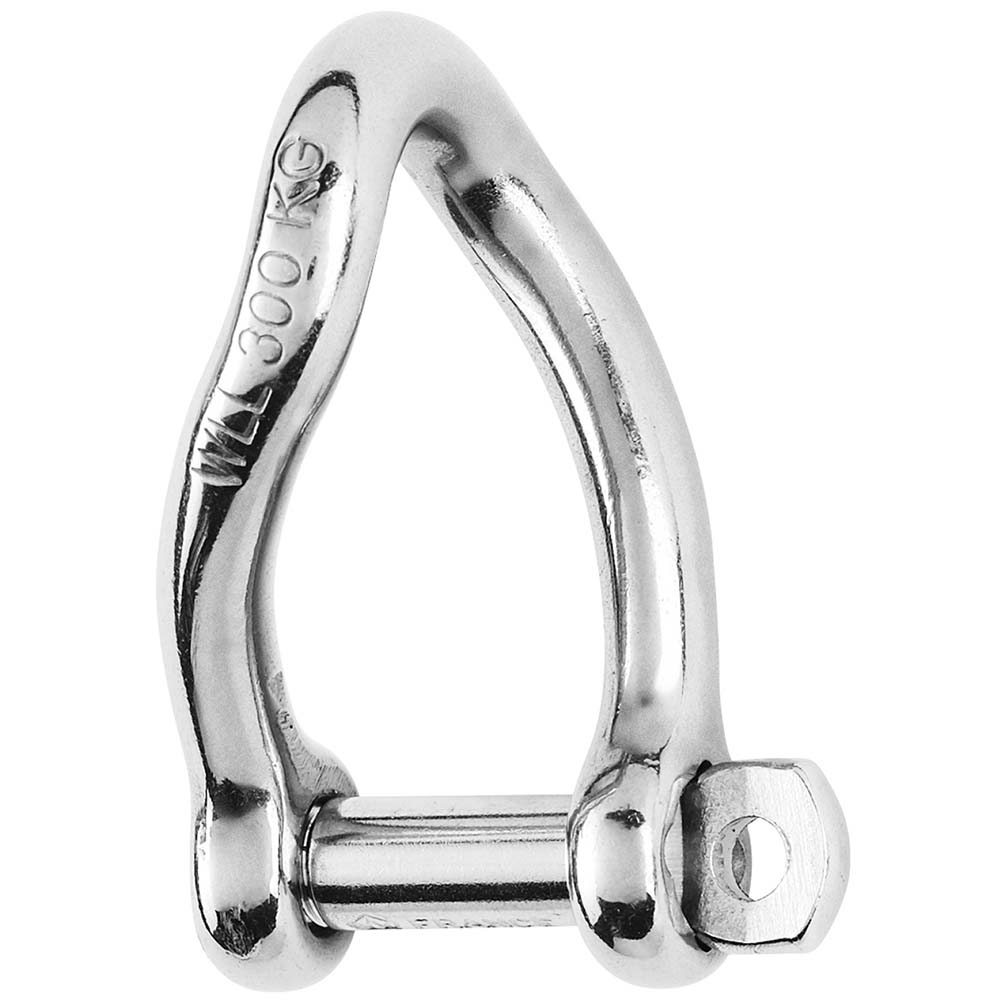

Wichard Marine Self-Locking Twisted Shackle 8mm (5/16 inch) Grade 316L Stainless Steel Part 1224W

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.148

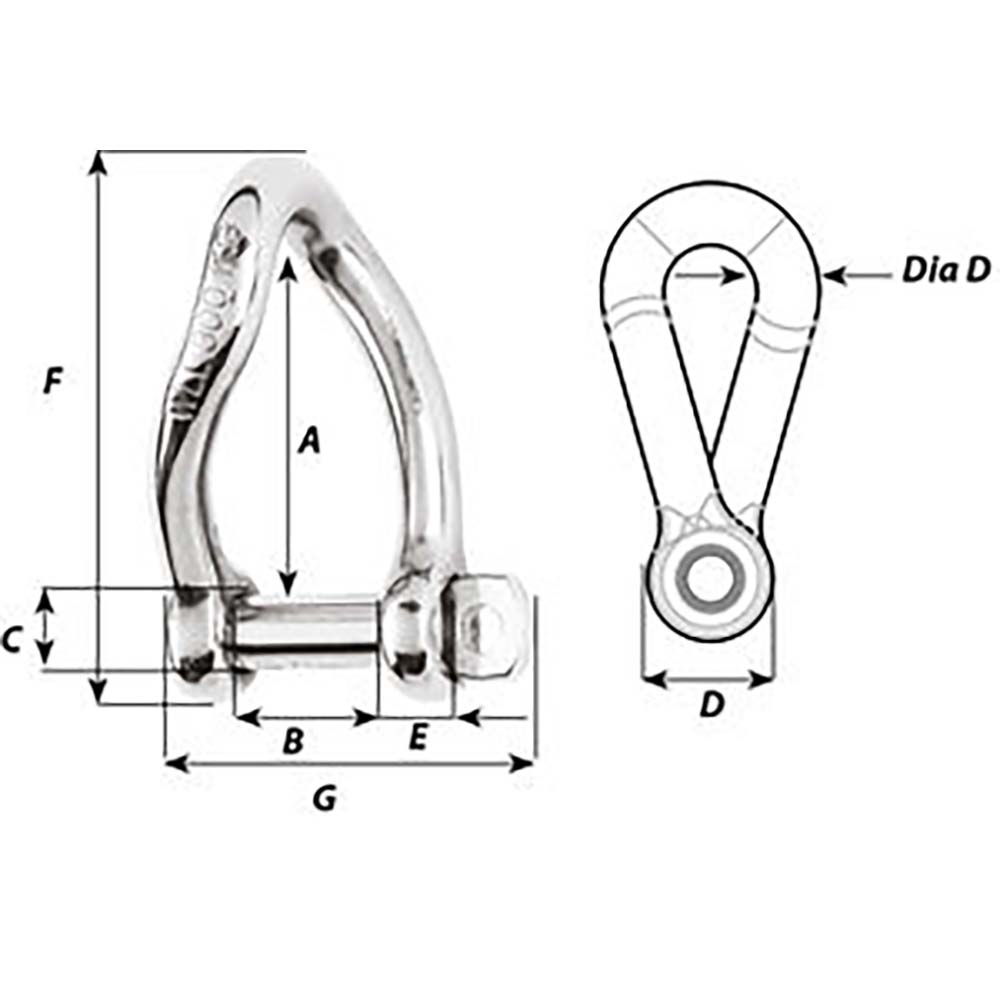

Dimensions (see 2nd image):

• A (inch)1-37/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-23/64"

The Wichard Marine Self-Locking Twisted Shackle, part number 1224W, is a high-strength marine-grade hardware piece designed for demanding applications. Made from durable grade 316L stainless steel, this 8mm (5/16 inch) diameter shackle offers excellent corrosion resistance and longevity in harsh environments. Its self-locking mechanism ensures the pin remains securely engaged, eliminating risks of loosening due to vibrations, which is crucial for safety and reliability in marine and industrial settings. The shackle's design allows for a secure connection at a 90-degree twist setup, making it ideal for attaching unarticulated parts such as blocks on rails or for purchase arrangements. With outstanding working and breaking loads—2200 pounds and 6610 pounds respectively—this shackle provides a robust solution for heavy-duty applications. Its compact weight of approximately 0.15 pounds makes it suitable for various projects without adding unnecessary bulk. The dimensions are engineered for versatility, with the length measuring around 2.4 inches and the width at 5/8 inch, ensuring a snug fit for many standard rigging configurations. This shackle's precision engineering and durable materials make it an essential component for marine, industrial, and rigging applications where strength, safety, and reliability are paramount.

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel

• Pin locks into one of the indentations for secure engagement

• Designed to prevent loosening due to vibrations

• High working load capacity of 2200 pounds

• Robust breaking load of 6610 pounds

• Ideal for 90-degree twist setups in rigging

• Suitable for attaching unarticulated parts or on purchases

• Made from corrosion-resistant 316 stainless steel

• Compact and lightweight design
