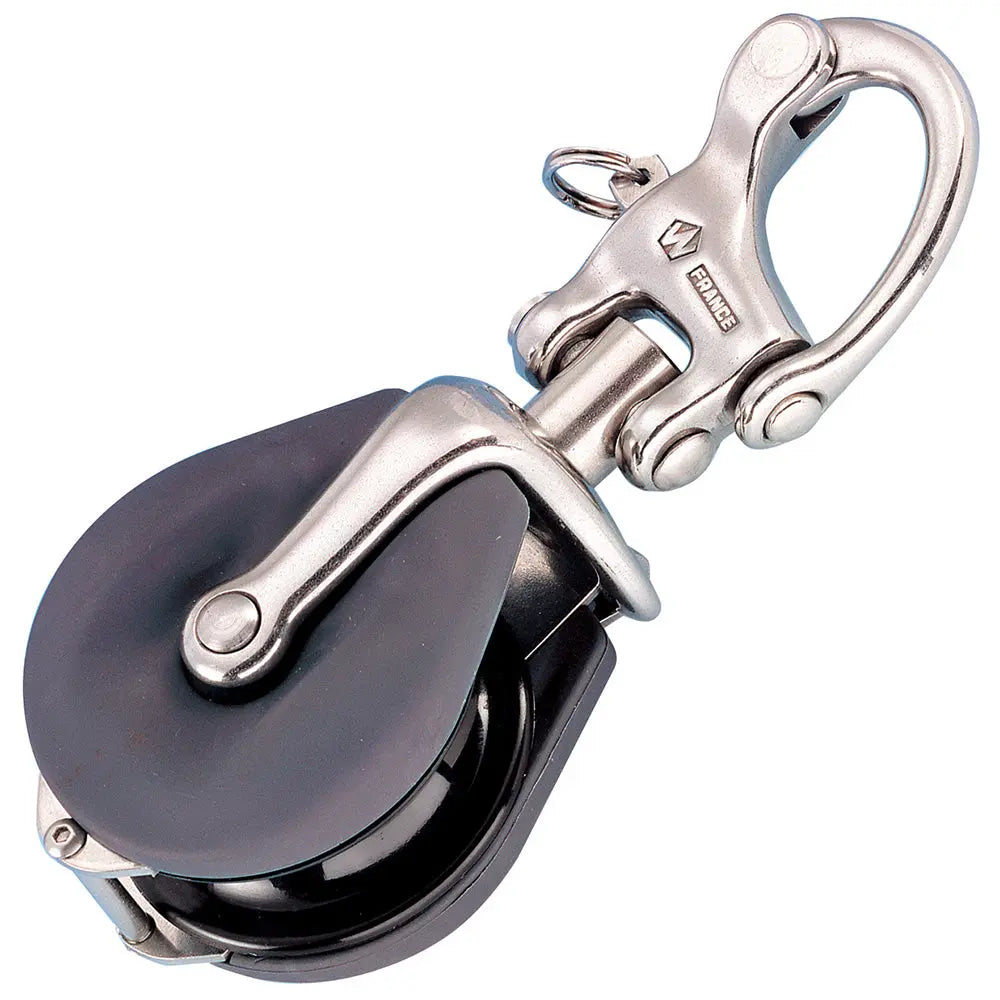

Wichard Marine Snatch Block with Snap Shackle for 12mm Ropes - Model 34500W

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 15/32" / (mm) 12
• Length: (inch) 5 45/64" / (mm) 145
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 11/16" / (mm) 43
• Working Load: (lb) 1580 / (kg) 720
• Breaking Load: (lb) 2860 / (kg) 1300
• Weight: (lb) 0.56 / (g) 254

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Snatch Block with Snap Shackle (Part Number 34500W) offers a reliable and efficient solution for managing ropes up to 12mm (15/32 inches) in diameter. Crafted with high-strength materials, this snatch block features a forged stainless steel arm made from HR 17.4 PH stainless steel, ensuring durability and corrosion resistance in marine environments. The elastomer molded cheeks provide shock absorption and scratch resistance, protecting both the block and the rope during operation. The composite sheave facilitates smooth rope movement and reduces wear, making it suitable for various nautical applications. Designed with a quick-release snap shackle, it allows for free rotation and easy opening by simply pulling on the plunger pin, simplifying adjustments and setup. This versatile component is ideal for changing sheets and spinnaker sheet deflector blocks, offering both strength and ease of use in demanding conditions. With a working load limit of approximately 720 pounds and a breaking load of 1300 pounds, the Wichard Snatch Block ensures safety and reliability during sailing or industrial tasks. Its compact size and lightweight design make it easy to handle and install, providing an excellent balance of performance and convenience for sailors and professionals alike. Whether for recreational sailing, racing, or industrial applications, this snatch block delivers consistent, high-quality performance, backed by Wichard Marine’s reputation for engineering excellence. Note that the working load is intended for nautical use, with an industrial safety factor of five times the breaking load. Sold individually, this product is a durable and indispensable component for any rigging setup.

Features:

• Free rotation thanks to snap shackle

• Very strong closing system

• Easy opening by simply pulling on the plunger pin

• Shock and scratch-resistant thanks to elastomer molded cheeks
