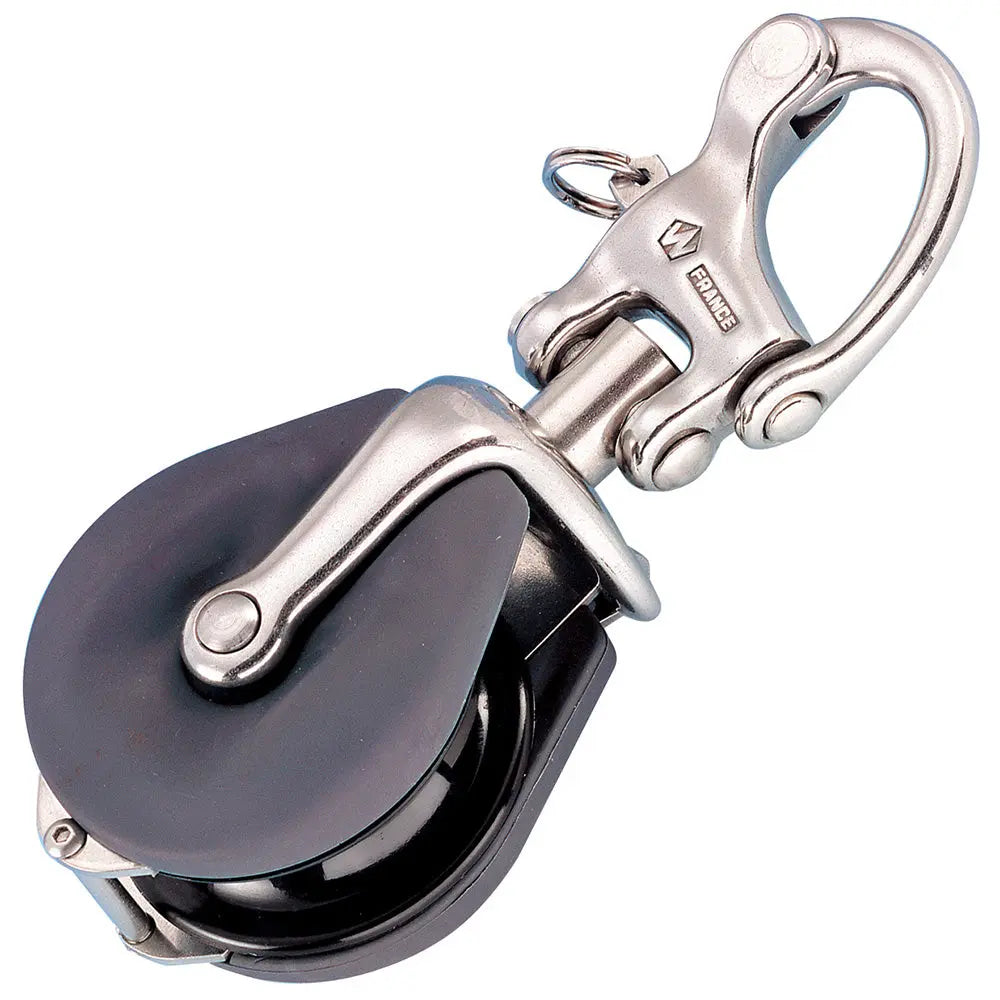

Wichard Marine Snatch Block with Snap Shackle – Max Rope Size 18mm (23/32") for Marine and Industrial Use

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 23/32" / (mm) 18
• Length: (inch) 6 7/64" / (mm) 155
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 59/64" / (mm) 49
• Working Load: (lb) 2640 / (kg) 1200
• Breaking Load: (lb) 5510 / (kg) 2500
• Weight: (lb) 0.913 / (g) 414

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Snatch Block with Snap Shackle, part number 35500W, is designed for reliable performance in both nautical and industrial applications. Crafted from high-strength HR 17.4 PH forged stainless steel, it features a composite sheave that ensures durability and smooth operation. The elastomer molded cheeks provide shock and scratch resistance, extending the lifespan of the block in harsh environments. With a working load limit of 1,200 kilograms (2,640 pounds), this snatch block offers robust support for lifting and sailing tasks involving ropes up to 18mm (23/32 inch) in diameter. Its compact design includes a length of approximately 6 1/4 inches, width of about 2 1/4 inches, and a thickness close to 2 inches, making it suitable for various rigging configurations. The snap shackle allows for free rotation, simplifying the process of changing sheets or adjusting spinnaker sheet deflector blocks, while the easy-to-open plunger pin ensures quick handling. Weighing approximately 0.91 pounds, this piece combines strength with portability. The product is ideal for maritime professionals and enthusiasts seeking a durable, easy-to-operate snatch block that maintains performance under high loads and tough conditions. Please note that the working load is intended for nautical use, whereas the working load limit applies to industrial settings, with a safety factor of five times the breaking load, which is 2,500 kilograms (5,510 pounds). Sold as an individual unit, the Wichard Snatch Block with Snap Shackle is a versatile addition to any sailing or industrial rigging setup.

Features:

• Free rotation thanks to snap shackle

• Very strong closing system

• Easy opening by simply pulling on the plunger pin

• Shock and scratch-resistant thanks to the elastomer molded cheeks
