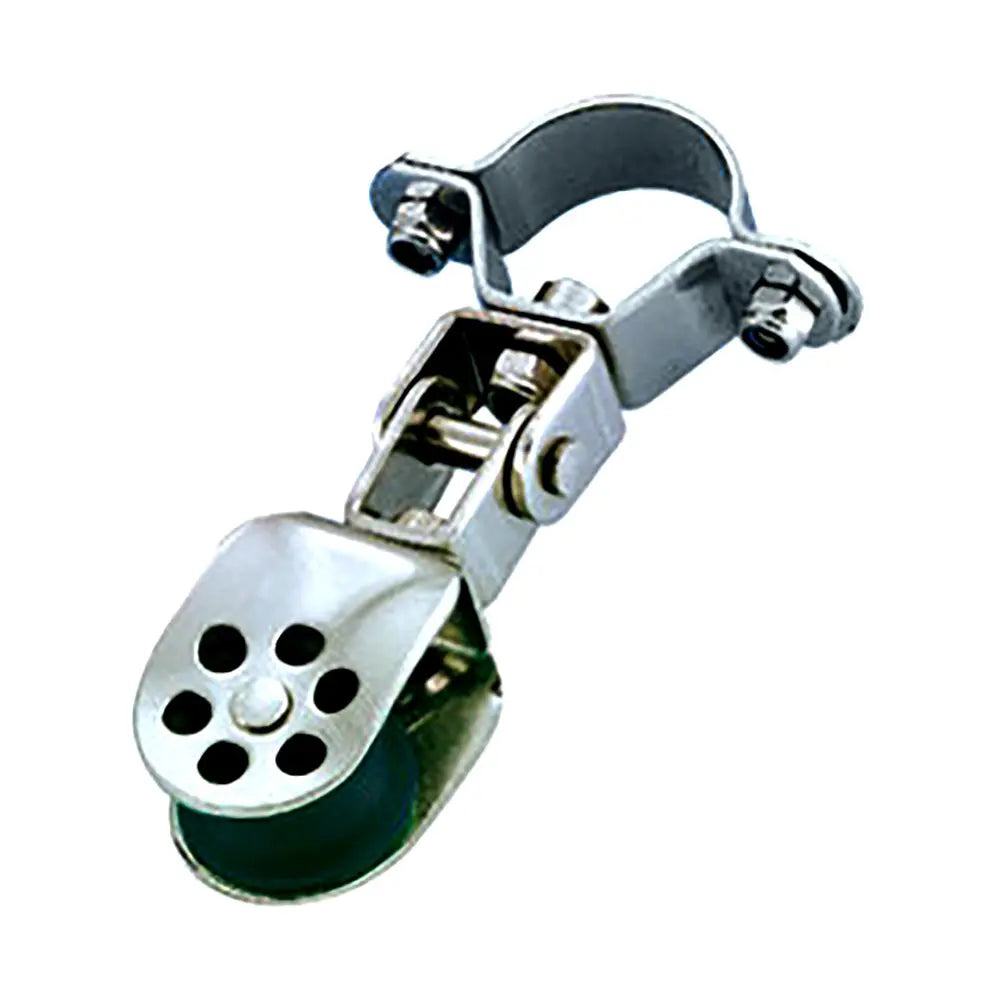

Wichard Marine Stainless Steel Single Block with 25mm Sheave for Stanchion Pivoting

Stainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting

• A single block intended for use on a dinghy. The block is light, reliable, and has good performance.

Applications:

• For stanchion applications - furling system line

Specifications:

• Materials Composite sheave and 316L stainless steel grade cheeks
• Rope size: (inch) 5/16"-25/64" / (mm) 8-10
• Length: (inch) 3 47/64" / (mm) 95
• Width: (inch) 2 3/32" / (mm) 53
• Thickness: (inch) 53/64" / (mm) 21
• Sheave Diameter: (inch) 63/64" / (mm) 25
• Working load: (lb) 610 / (mm) 280
• Breaking load: (lb) 880 / (mm) 400
• Weight: (lb) 0.154 / (g) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Stainless Steel Single Block with a 25mm sheave diameter is designed for reliable and efficient performance on dinghies and small sailing vessels. Crafted with a composite sheave and 316L stainless steel cheeks, this block provides durability, corrosion resistance, and smooth operation for line handling. Its compact size and lightweight construction make it ideal for applications where space and weight are critical considerations, such as furling systems and stanchion pivots. The design ensures secure line guidance with a working load capacity of up to 610 pounds and a breaking load of 880 pounds, offering a robust solution for demanding nautical environments. Its material construction and engineering make it suitable for both recreational and professional sailing, providing a blend of strength and longevity.

Features:

• Material: Composite sheave and 316L stainless steel cheeks for durability and corrosion resistance

• Sheave Diameter: 25mm (1 inch) for effective line management

• Line Compatibility: Suitable for ropes ranging from 5/16" to 25/64" (8-10mm)

• Compact Design: Length of approximately 3 47/64 inches for space-saving installation

• Lightweight: Weighs about 0.154 pounds for ease of handling and installation

• High Working Load: Supports up to 610 pounds for nautical applications

• Breakage Load: Designed to withstand up to 880 pounds for safety and reliability

• Pivoting Stanchion Mount: Ideal for furling systems and line control on stanchions

• Brand: Wichard Marine, Part Number: 30125W for easy identification
