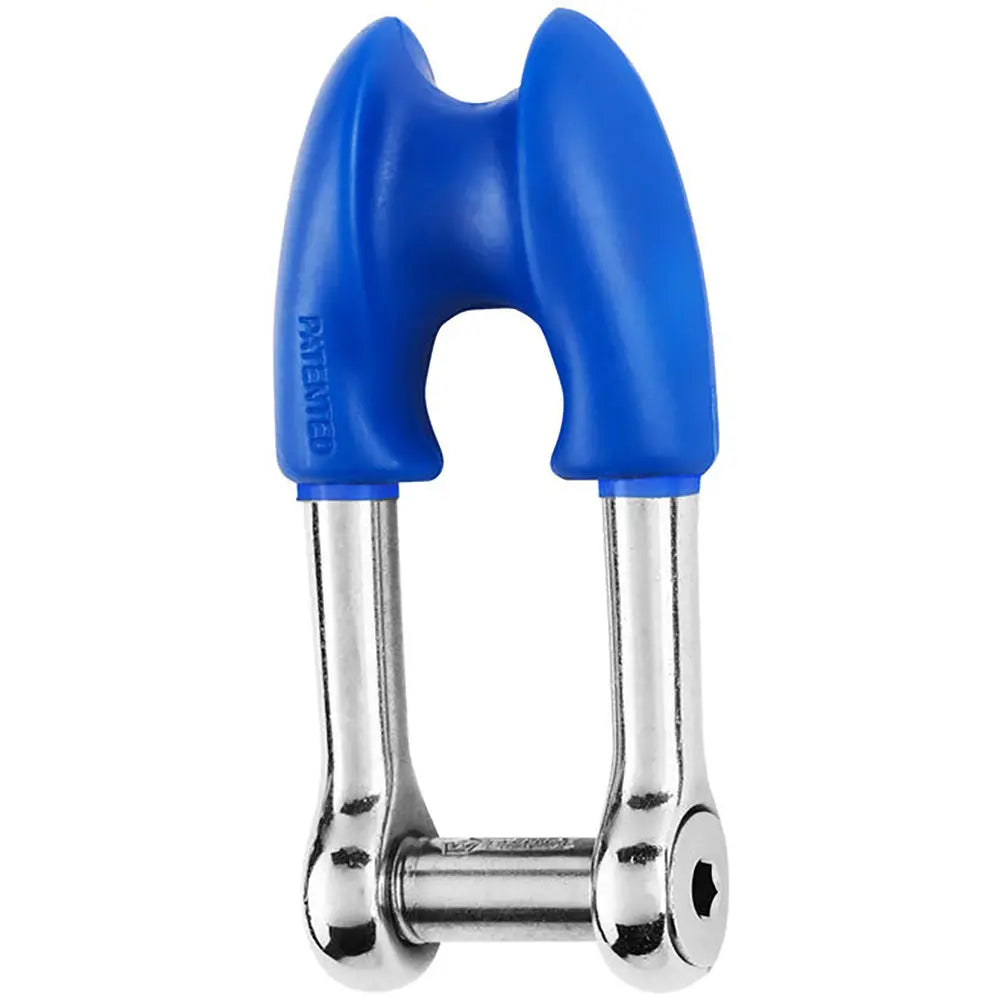

Wichard Marine Thimble Shackle with Allen Head Pin – 10mm Diameter, 13/32 Inch

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

• Thimble shackle with allen head pin forged in grade 316L stainless steel
• Allows a rope to be spliced without adding and additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 16 mm

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3350 / (kg) 1520
• Breaking load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.313 / (g) 142

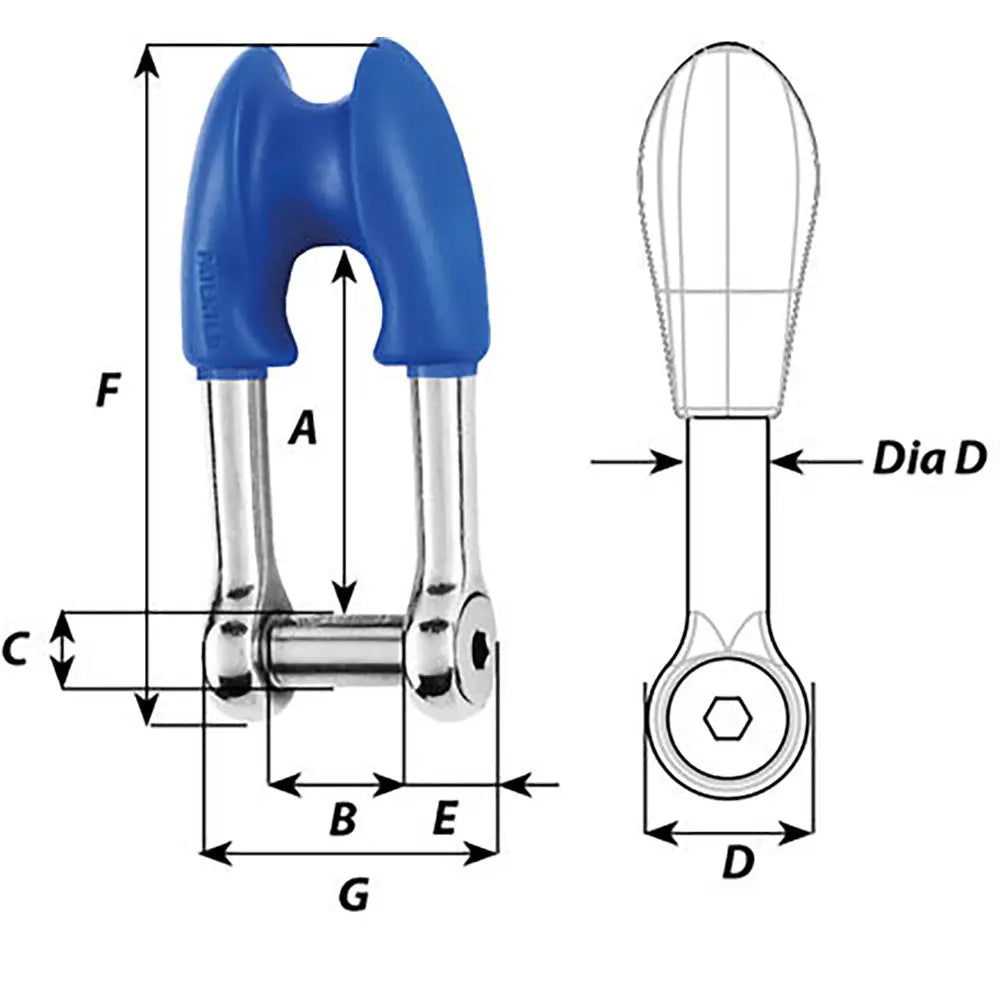

Dimensions:

• A: (inch) 2 1/64" / (mm) 51
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 5/16" / (mm) 8
• F: (inch) 3 25/32" / (mm) 96
• G: (inch) 1 39/64" / (mm) 41

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Thimble Shackle with Allen Head Pin is a high-quality hardware component designed for demanding nautical and industrial applications. Constructed from durable grade 316L stainless steel, this shackle offers exceptional resistance to corrosion, making it ideal for use in harsh marine environments. The forged design ensures outstanding strength and reliability, with a working load capacity of up to 3,350 pounds and a breaking load of 11,020 pounds. Its innovative allen head pin is captive, reducing the risk of loss during operation and simplifying maintenance. This shackle enables a rope to be spliced directly without the need for an additional thimble, saving space and reducing hardware complexity. The compact dimensions and robust construction make it suitable for mainsheet halyards and other rigging needs with rope sizes up to 16 mm (approximately 5/8 inch).
