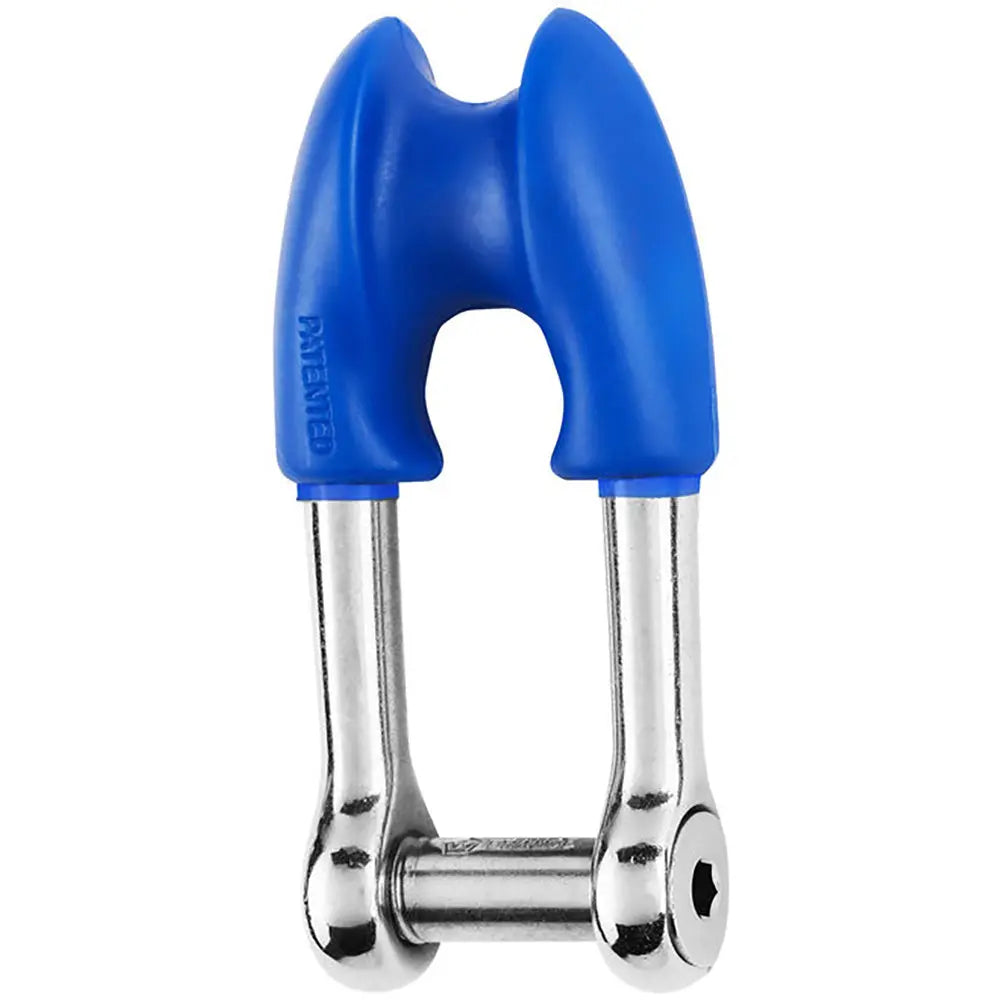

Wichard Marine Thimble Shackle with Allen Head Pin - 8mm Diameter, 5/16 inch

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"

Features:

• Thimble shackle with allen head pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding and additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 12 mm

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2200 / (kg) 1000
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.168 / (g) 76

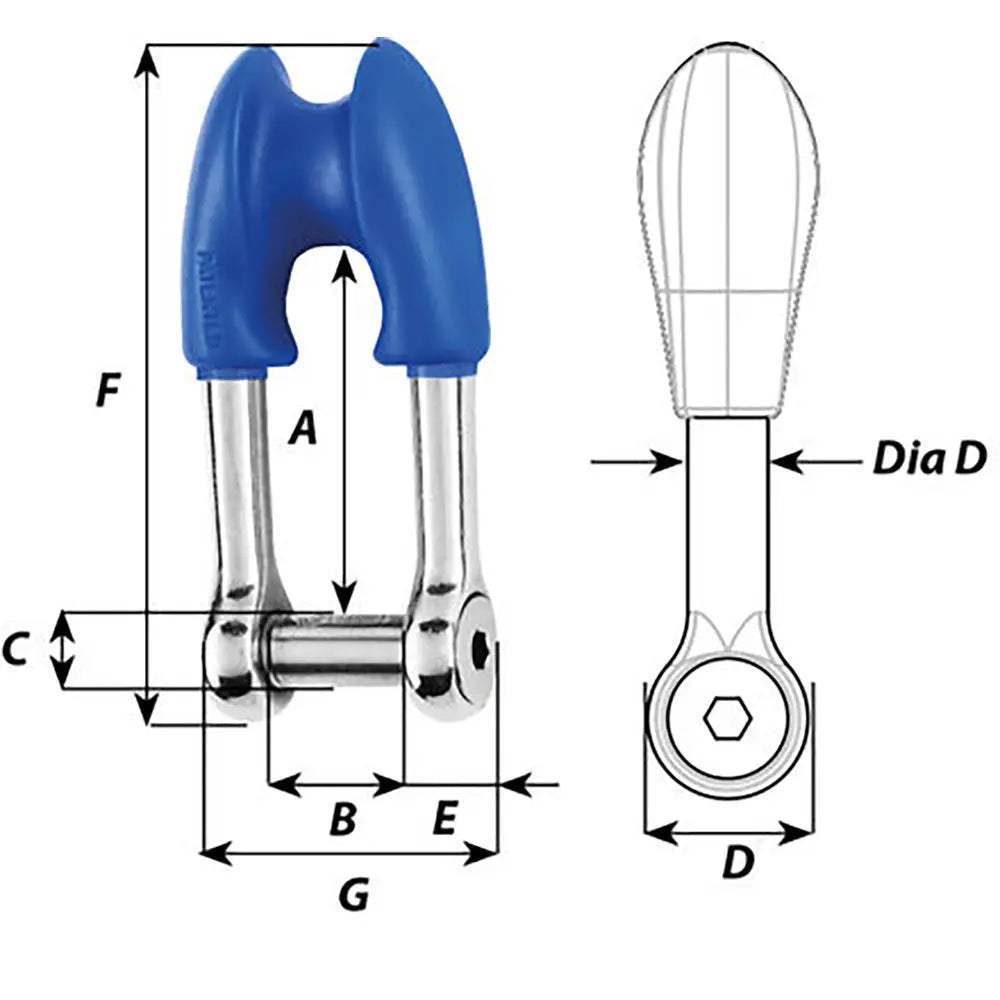

Dimensions:

• A: (inch) 1 39/64" / (mm) 41
• B: (inch) 5/8" / (mm) 16
• C: (inch) 5/16" / (mm) 8
• D: (inch) 5/8" / (mm) 16
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 9/32" / (mm) 7
• F: (inch) 2 63/64" / (mm) 76
• G: (inch) 1 19/64" / (mm) 33

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Thimble Shackle with Allen Head Pin is crafted from durable grade 316L stainless steel, ensuring high strength and corrosion resistance ideal for marine and industrial use. This shackle features an innovative design that allows you to splice a rope without the need for an additional thimble, simplifying installation and reducing component count. The captive pin design prevents accidental loss, providing peace of mind during operation and maintenance. With outstanding working and breaking loads, this shackle is suitable for demanding applications such as mainsheet halyards and other rigging systems.
Constructed from high-grade 316 stainless steel, this shackle offers a reliable solution for securing ropes with a maximum size of 12mm (approximately 1/2 inch). Its robust construction provides a working load limit of 1,000 kg (2,200 lbs) and a breaking load of 3,000 kg (6,610 lbs), making it suitable for both recreational and professional marine environments. The compact design features precise dimensions for easy integration into existing systems, with an overall length of approximately 2 63/64 inches and a width of 5/8 inch. Its lightweight profile, weighing around 1.68 ounces, ensures minimal impact on the overall rigging setup.
Designed for durability and ease of use, this shackle can be employed effectively in applications requiring high strength and corrosion resistance. Whether used in sailing, industrial rigging, or other load-bearing scenarios, the Wichard Marine Thimble Shackle with Allen Head Pin delivers reliable performance. The product is sold individually, making it easy to replace or upgrade existing hardware without bulk purchasing. Its engineering specifications meet the demanding standards of nautical and industrial environments, providing a safe and effective connection point for various rigging configurations.

Features:

• Thimble shackle forged from grade 316L stainless steel for corrosion resistance and durability

• Allen head pin design allows secure fastening and easy removal

• Enables rope splicing without additional thimbles, simplifying installation

• Captive pin prevents accidental loss during operation

• High working load limit and breaking load suitable for demanding applications
