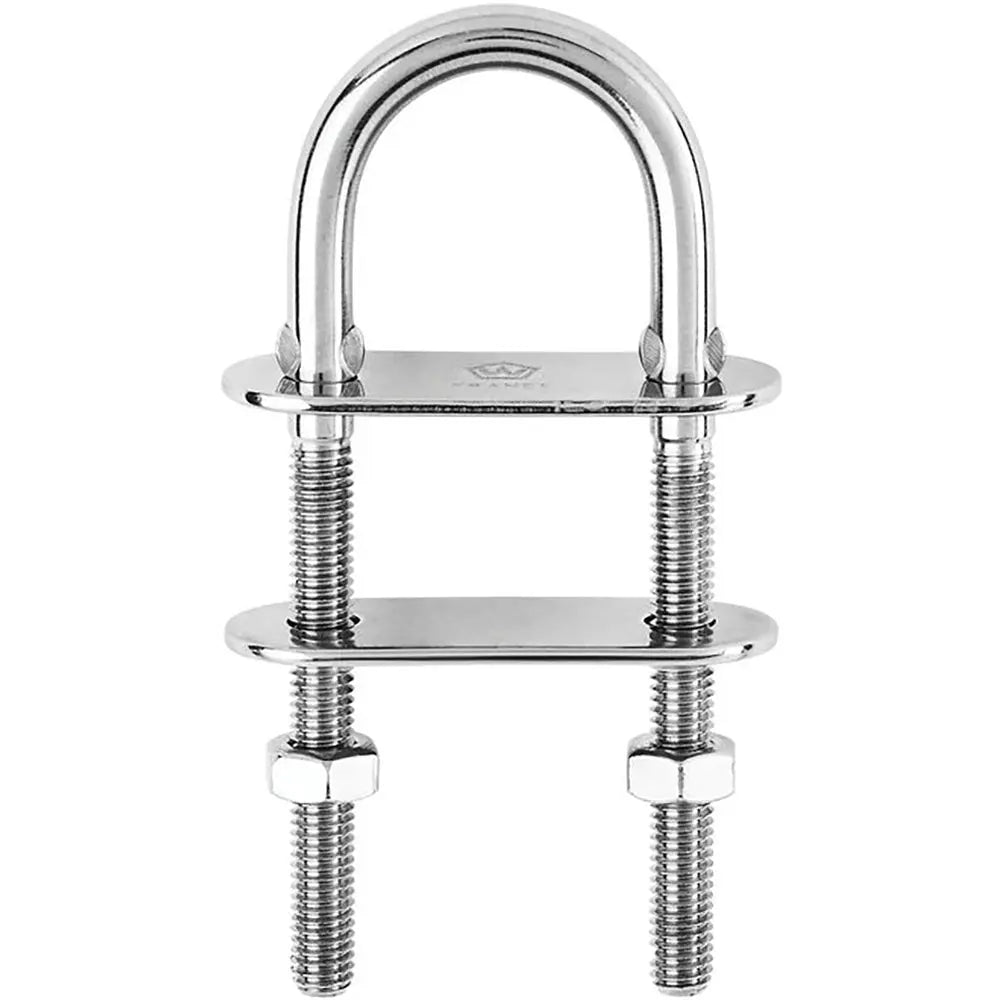

Wichard Marine U-Bolt Pad Eye 10mm Diameter, 90mm Length for Marine and Industrial Use

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.441 / (g) 200

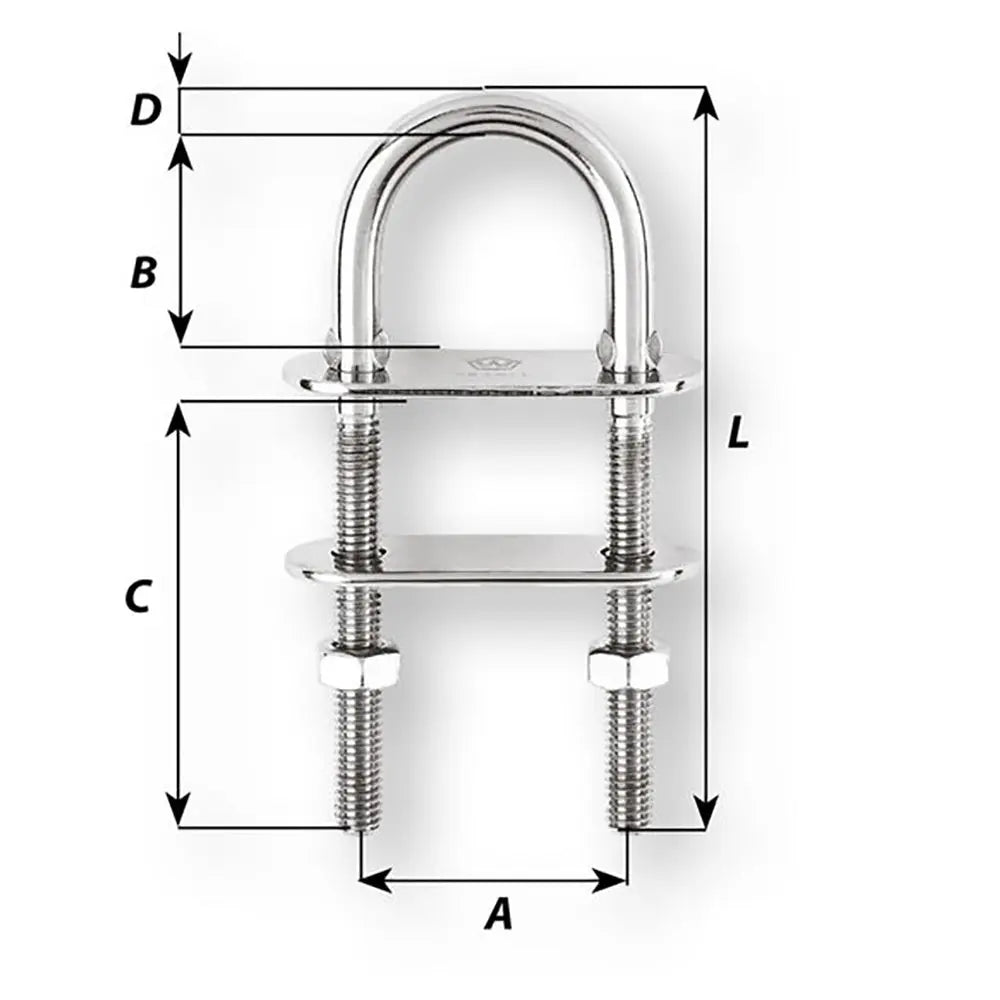

Dimensions:

• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10
• Length: (inch) 3 35/64" / (mm) 90
• Caption:
• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6515W, is a robust attachment point crafted from high-quality 316L stainless steel, ensuring durability and corrosion resistance in demanding environments. Fully drop forged for enhanced strength, this pad eye offers outstanding working and breaking loads, making it suitable for a variety of fastening applications such as shrouds, lifelines, and blocks on both marine vessels and industrial setups. Delivered complete with bolts and a counter-plate, it simplifies installation and provides reliable performance under heavy loads. The maximum tightening torque is 36 Nm, ensuring secure attachment during operation. Designed for versatility, this pad eye features a 10mm diameter eyelet with an overall length of approximately 3-3/8 inches, making it compatible with a wide range of rigging and fastening needs. Its high working load limit of around 7,930 pounds and breaking load of approximately 15,430 pounds underscore its capacity to handle substantial forces safely. The construction and specifications adhere to strict standards, making it suitable for both nautical and industrial applications, with a safety factor of five times the working load limit. Whether used in sailing, rigging, or industrial fastening, the Wichard Marine U-Bolt Pad Eye provides a reliable and durable solution for secure attachment points. Its compact weight of about 0.44 pounds ensures ease of handling and installation, while its corrosion-resistant properties promise long-term performance in harsh environments.

Features:

• Fully drop forged stainless steel construction for maximum strength and durability

• Outstanding working and breaking loads suitable for heavy-duty applications

• Versatile application for shrouds, lifelines, blocks, and other fastening needs

• Delivered with bolts and a counter-plate for straightforward installation

• Maximum tightening torque of 36 Nm ensures secure fastening
