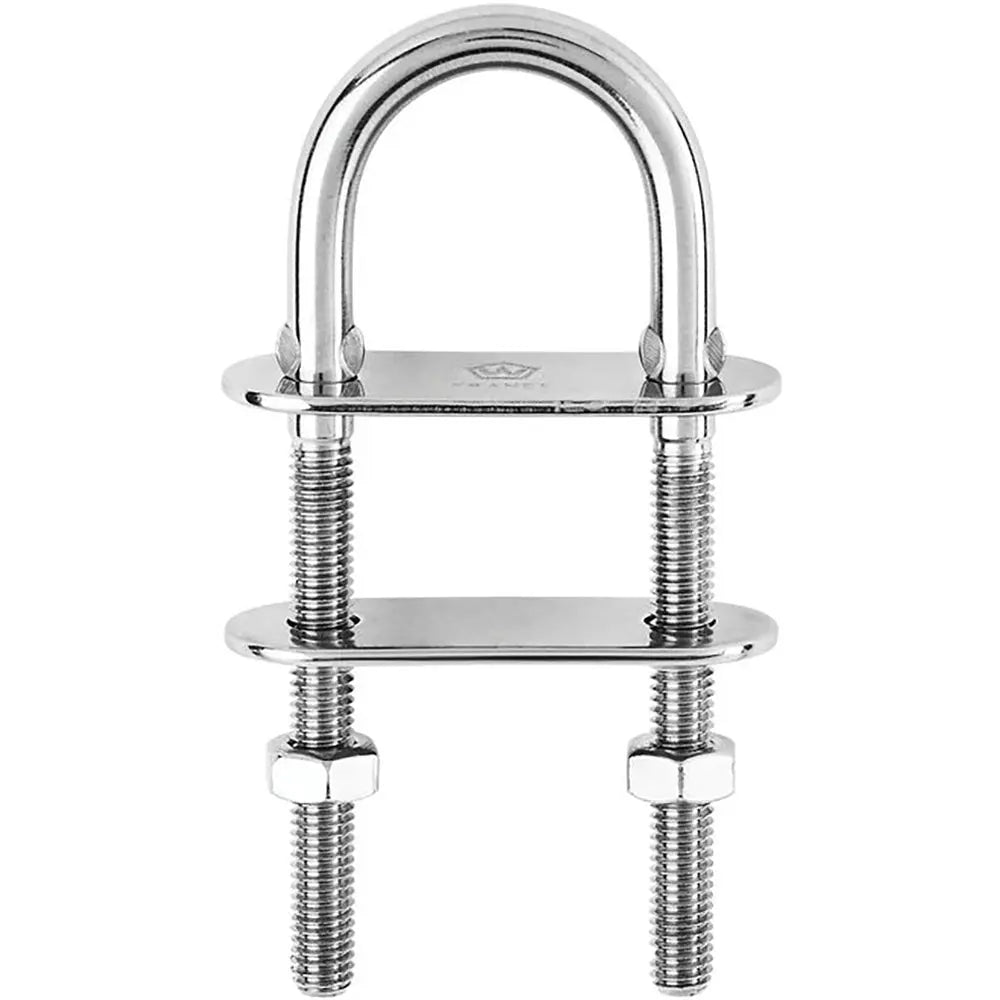

Wichard Marine U-Bolt Pad Eye 12mm Diameter, 110mm Length for Nautical & Industrial Use

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.703 / (g) 319

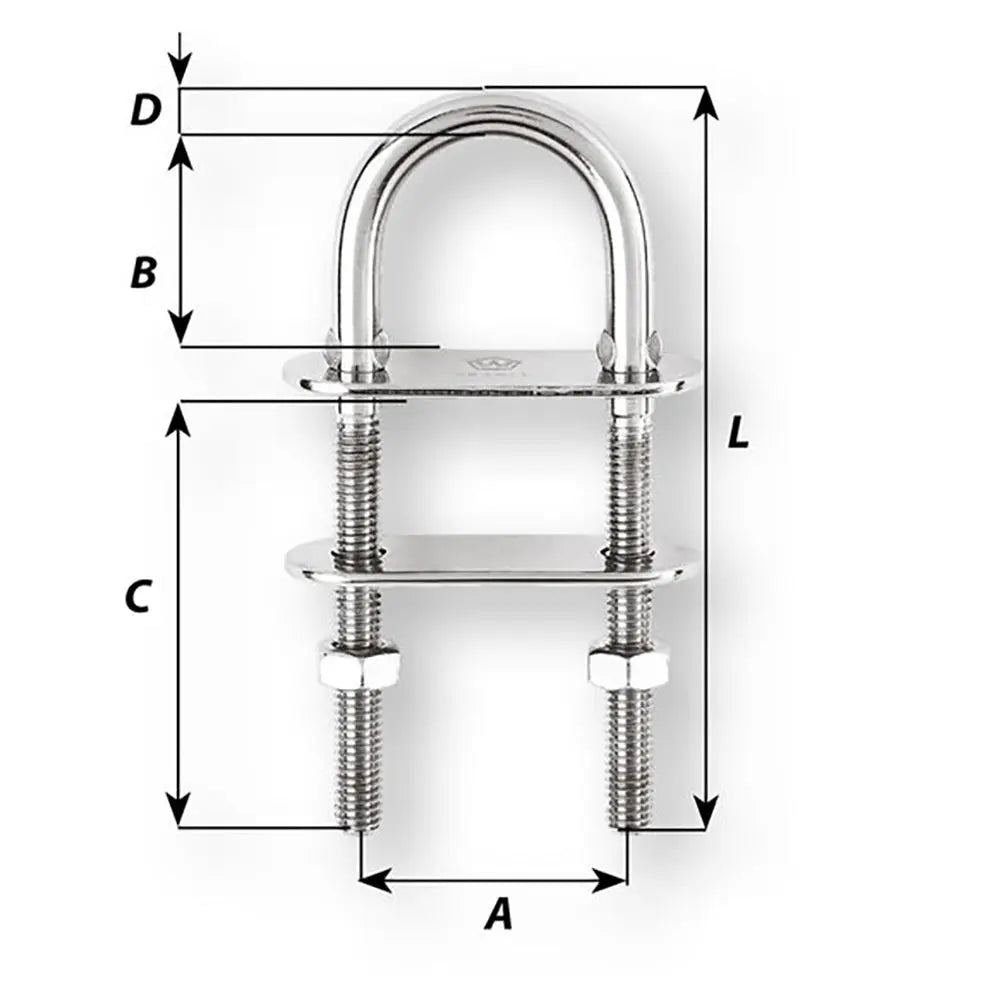

Dimensions:

• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 11/32" / (mm) 34
• C: (inch) 1 31/32" / (mm) 50
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6516W, is a robust and versatile fastening component crafted from high-quality 316L stainless steel. Designed for demanding applications, this fully drop-forged pad eye offers exceptional strength with outstanding working and breaking loads, making it suitable for both nautical and industrial environments. Its corrosion-resistant material ensures durability in harsh conditions, whether used for shrouds, lifelines, or blocks. Delivered complete with bolts and a counter-plate, this pad eye facilitates secure and reliable fastening with a maximum tightening torque of 60 Nm.

Ideal for marine and industrial use, the Wichard U-Bolt Pad Eye provides a high working load capacity of approximately 14,100 pounds and a breaking load of around 22,040 pounds, ensuring safety and performance under heavy loads. Its dimensions are engineered for compatibility with various fittings, featuring a length of 4-21/64 inches (110mm) and a diameter of 15/32 inches (12mm). The design incorporates precise measurements for optimal fit and strength, including mounting points and load-bearing surfaces.

This pad eye is suitable for multiple applications such as securing shrouds, lifelines, or blocks, where reliable attachment points are essential. Its construction adheres to strict standards, and it is sold as an individual unit, making it convenient for custom installations or replacements. The component’s high-grade stainless steel ensures longevity and resistance to corrosion, even in marine environments, contributing to safety and peace of mind during use. Whether for recreational boating, commercial shipping, or industrial rigging, the Wichard Marine U-Bolt Pad Eye offers dependable performance and ease of installation.

Features:

• Fully drop-forged construction with high-quality 316L stainless steel

• Outstanding working and breaking load capacities

• Suitable for various fastening applications including shrouds, lifelines, and blocks

• Delivered with bolts and counter-plate for easy installation

• Maximum tightening torque of 60 Nm ensures secure fastening
