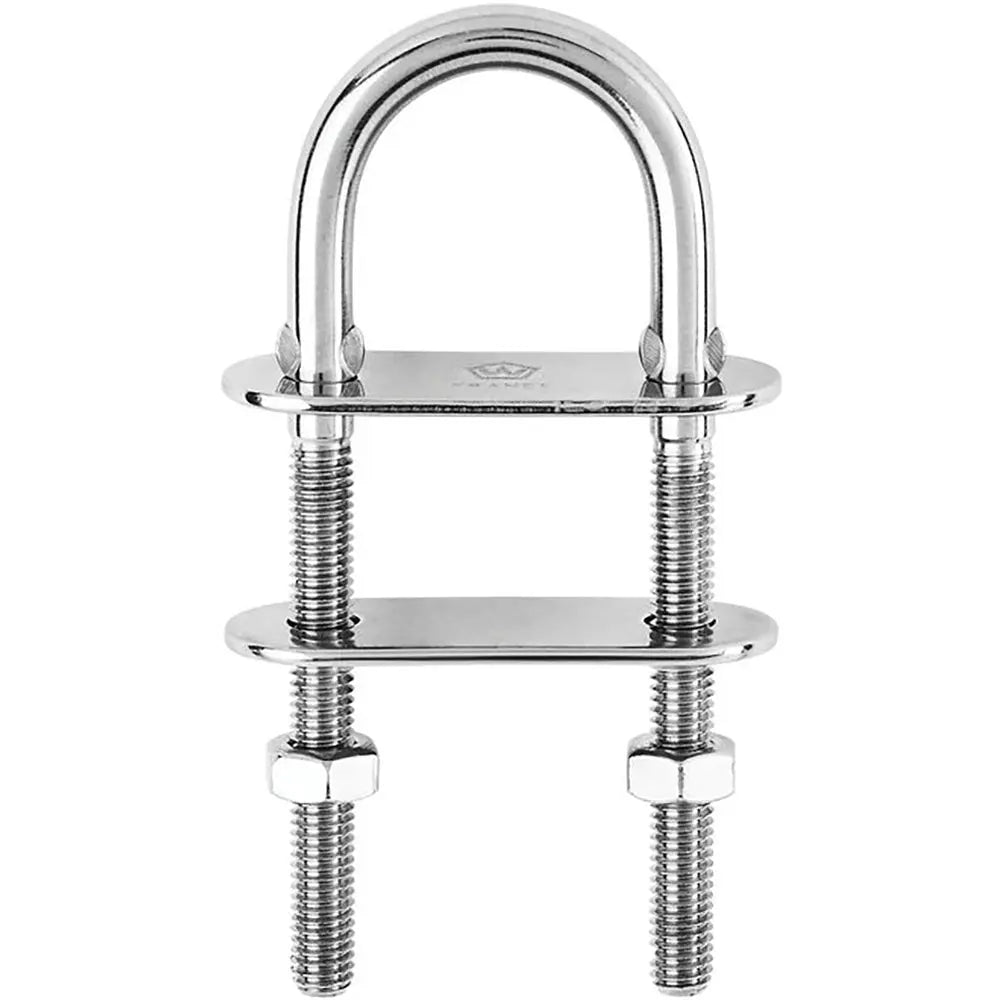

Wichard Marine U-Bolt Pad Eye - 4mm Diameter, 5/32 Inch Stainless Steel

U-Bolt Pad Eye - 4mm Diameter - 5/32"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 2.3 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 1050 / (kg) 480
• Breaking load: (lb) 2200 / (kg) 1000
• Weight: (lb) 0.049 / (g) 22

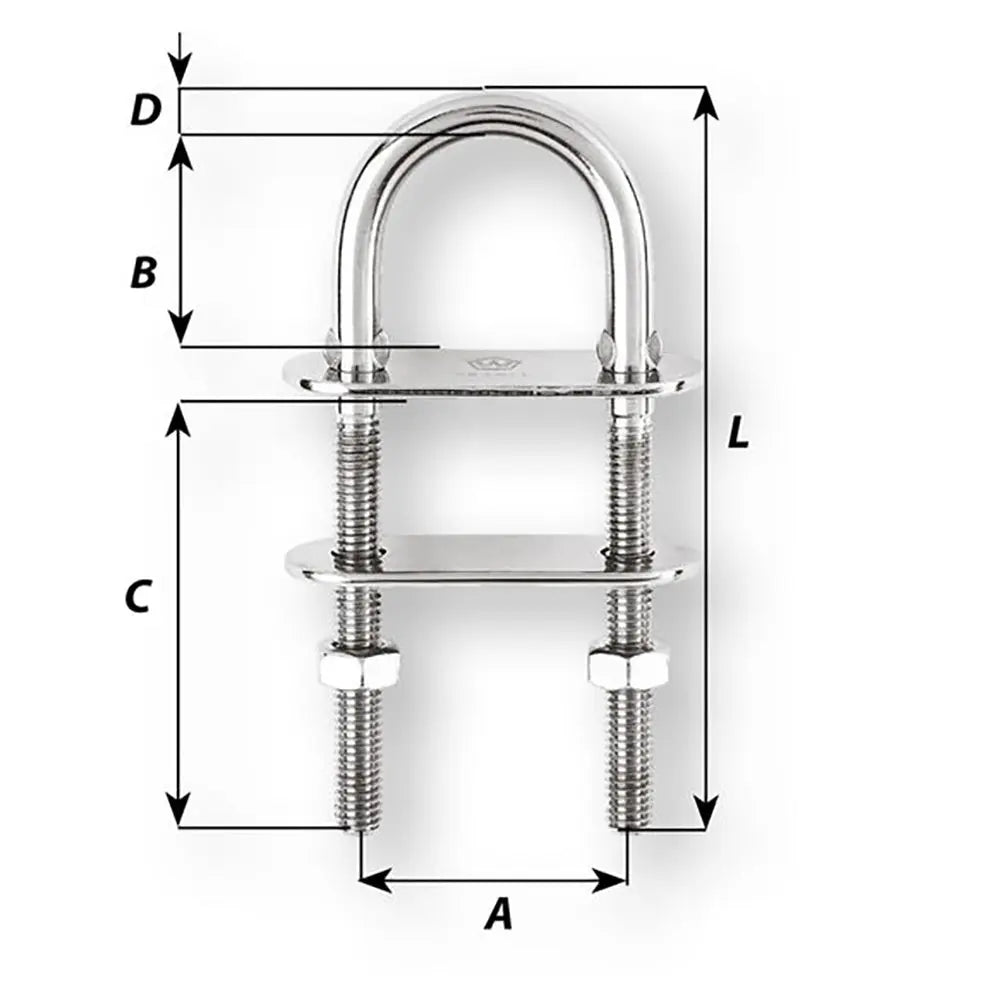

Dimensions:

• A: (inch) 15/16" / (mm) 24
• B: (inch) 53/64" / (mm) 21
• C: (inch) 1 1/16" / (mm) 27
• D diameter: (inch) 5/32" / (mm) 4
• Length: (inch) 1 31/32" / (mm) 50

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6511W, is a robust and reliable fastening component designed for a variety of marine and industrial applications. Crafted from high-quality 316L stainless steel, this fully drop-forged pad eye offers exceptional strength and durability for demanding environments. Its corrosion-resistant properties make it ideal for use in nautical settings, where exposure to moisture and salt is common. This pad eye is suitable for securing shrouds, lifelines, blocks, and other rigging or fastening needs, ensuring a secure and stable connection.
The product features a working load limit of 1,050 pounds and a breaking load of 2,200 pounds, providing a significant safety margin for critical applications. It is supplied with bolts and a counter-plate, simplifying installation and ensuring a secure fit. The maximum tightening torque is 2.3 Nm, allowing for proper fastening without damaging the component. Its compact design and lightweight construction—just under 0.05 pounds—make it easy to handle and install in tight spaces.
The dimensions of the pad eye include a length of approximately 1.9 inches and a width of 0.83 inches, with a mounting hole diameter of 5/32 inch. The overall height measures around 1.06 inches, making it suitable for various configurations and setups. This versatile hardware component is engineered to withstand the rigorous demands of both nautical and industrial environments, providing long-lasting performance and safety. Whether used in life-saving rigging or industrial fastening, the Wichard U-Bolt Pad Eye delivers dependable strength and corrosion resistance for your projects.

Features:

• Fully drop-forged stainless steel construction for high strength and durability

• Outstanding working and breaking loads suitable for demanding applications

• Designed for fastening applications including shrouds, lifelines, and blocks

• Delivered with bolts and counter-plate for easy installation

• Maximum tightening torque of 2.3 Nm ensures secure fastening
