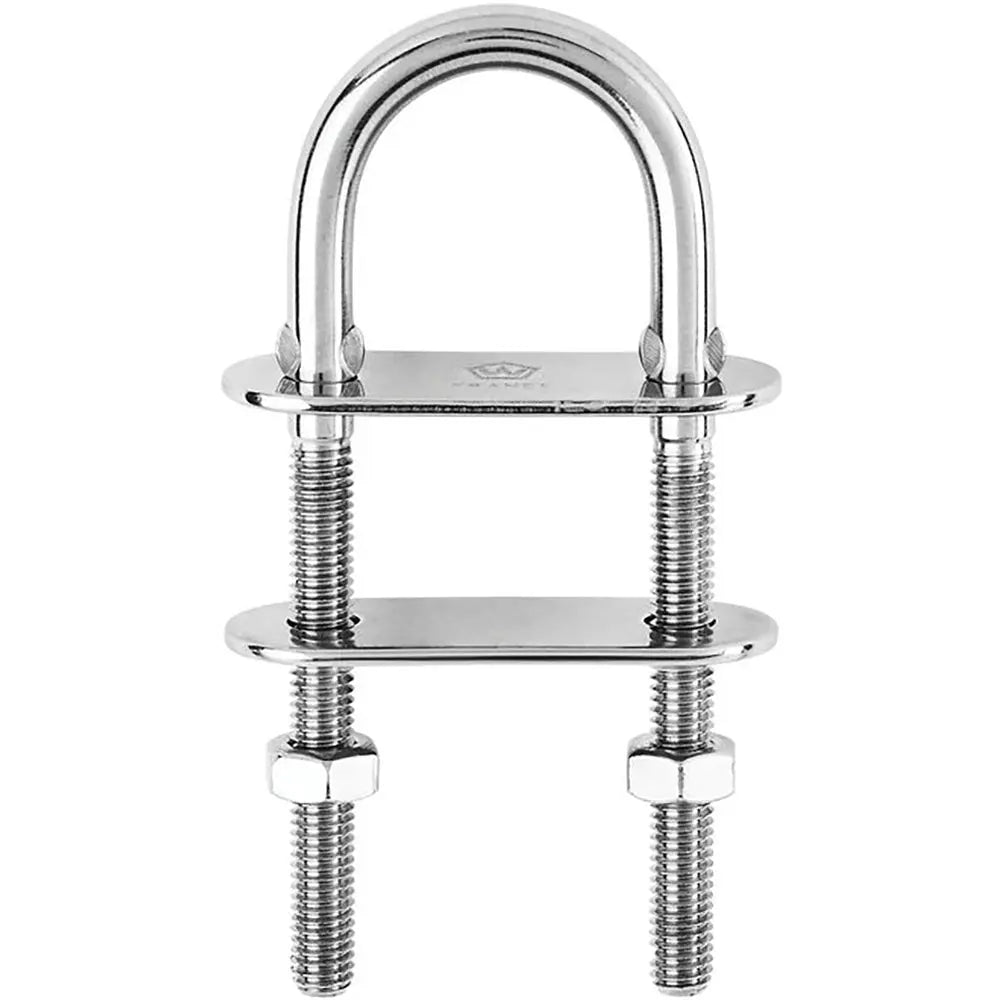

Wichard Marine U-Bolt Pad Eye 6mm Diameter, 2-3/4 inch Length for Marine and Industrial Use

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.132 / (g) 60

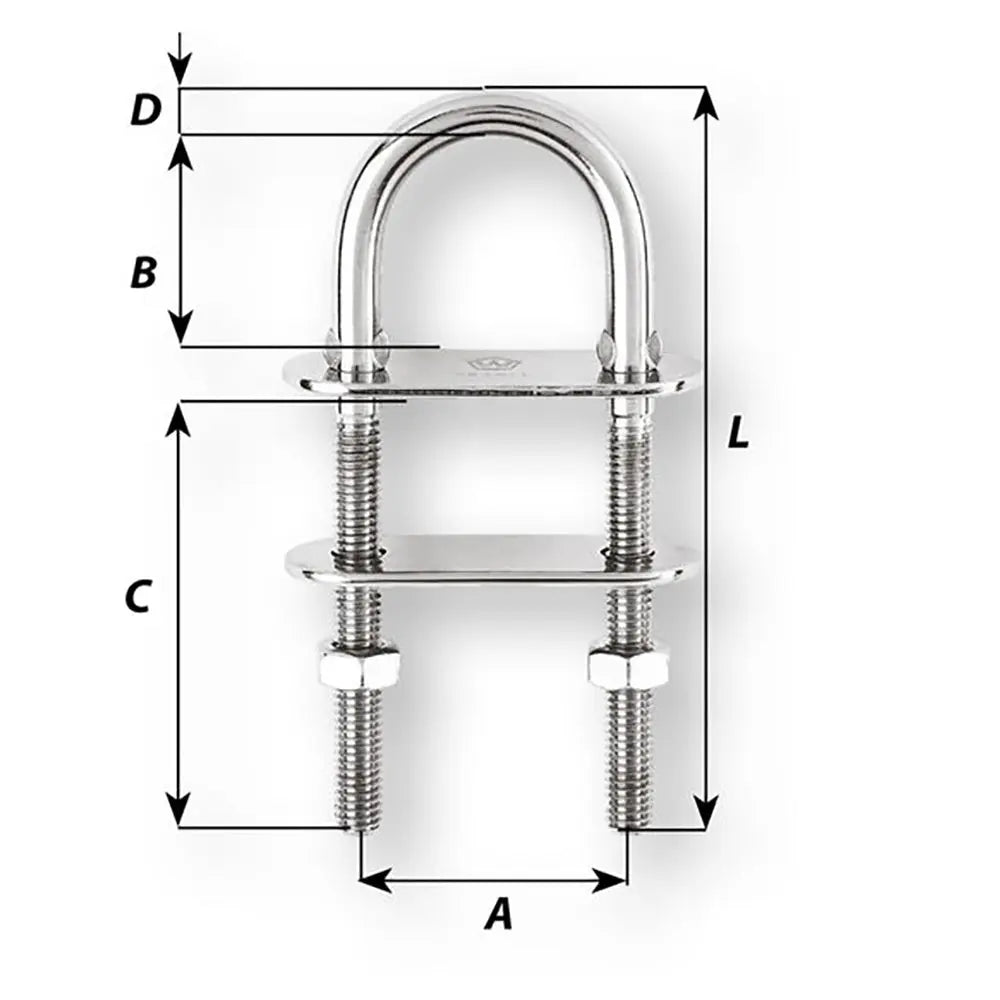

Dimensions:

• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 3/8" / (mm) 35
• D diameter: (inch) 15/64" / (mm) 6
• Length: (inch) 2 3/4" / (mm) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye with part number 6513W is a robust fastening component crafted from high-quality 316L stainless steel, ensuring durability and corrosion resistance in demanding environments. Fully drop forged for maximum strength, this pad eye features a 6mm diameter bolt and measures approximately 2-3/4 inches in length, making it suitable for various marine and industrial applications that require secure attachment points. Its design incorporates outstanding working and breaking loads, with a working load limit suitable for nautical use and a higher breaking load capacity for industrial safety margins. Delivered complete with bolts and a counter-plate, this pad eye simplifies installation and ensures reliable performance under heavy loads. The maximum tightening torque is 7.5 Nm, ensuring proper fastening without risking damage to the component. Ideal for applications such as shrouds, lifelines, and blocks, the Wichard U-Bolt Pad Eye offers versatility and strength for both marine and industrial environments. Its specifications include a working load of approximately 1,280 kg (2,820 lbs) and a breaking load of about 3,000 kg (6,610 lbs). Weighing only around 60 grams (0.132 pounds), it is both lightweight and sturdy. The dimensions include an overall length of approximately 70mm (2-3/4 inches), with key measurements for mounting and fitting. This product is sold individually, providing a reliable solution for securing loads and attachments in demanding applications.

Features:

• Fully drop forged stainless steel construction for maximum strength and durability

• Outstanding working and breaking load capacities suitable for demanding applications

• Versatile for various fastening tasks including shrouds, lifelines, and blocks

• Delivered with bolts and a counter-plate for easy installation

• Maximum tightening torque of 7.5 Nm for secure fastening
