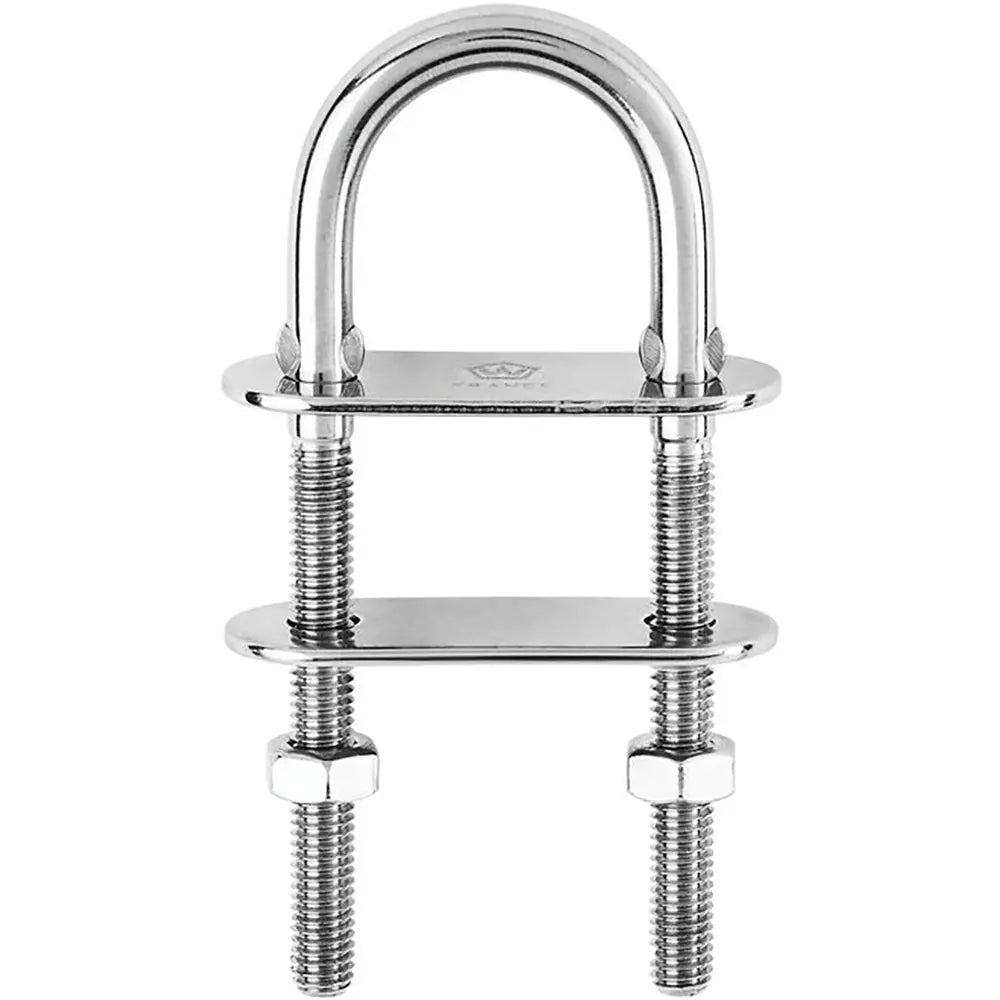

Wichard Marine U-Bolt Pad Eye 8mm Diameter, 5/16 Inch, 100mm Length – Heavy-Duty Stainless Steel Anchor Point

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.28 / (g) 127

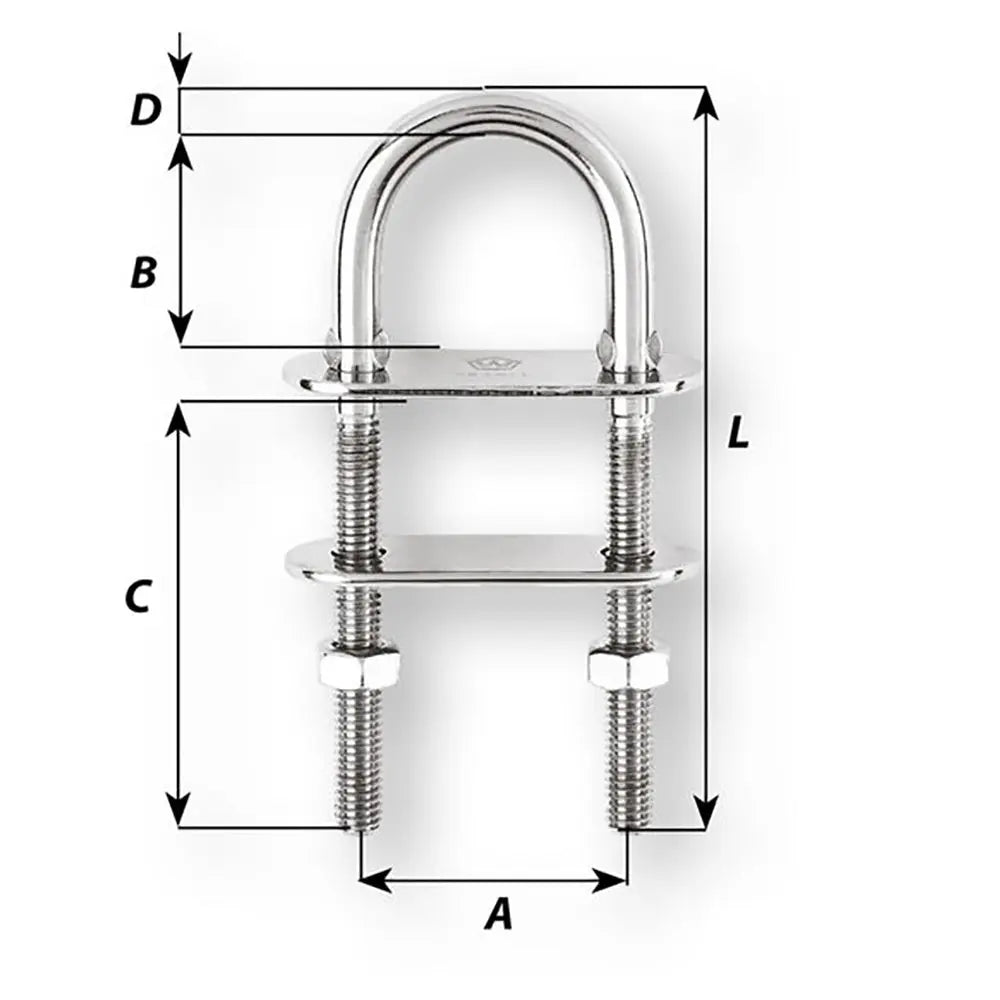

Dimensions:

• A: (inch) 1 27/64" / (mm) 36
• B: (inch) 1 3/16" / (mm) 30
• C: (inch) 2 23/64" / (mm) 60
• D diameter: (inch) 5/16" / (mm) 8
• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye (Part Number 6524W) is a robust and reliable fastening component designed for demanding maritime and industrial applications. Crafted from high-quality 316L stainless steel, this pad eye offers exceptional strength and durability, making it ideal for securing shrouds, lifelines, blocks, and other hardware. Its drop-forged construction ensures outstanding working and breaking loads, providing safety and peace of mind during critical operations. The U-bolt measures 3-15/16 inches in length with a diameter of 5/16 inch (8mm), and features a compact profile suitable for various installation points. Delivered with bolts and a counter-plate, this pad eye simplifies installation and ensures a secure connection with a maximum tightening torque of 18 Nm. Whether used in nautical or industrial settings, the Wichard Marine U-Bolt Pad Eye is engineered to meet rigorous load requirements, supporting a working load of up to 2,400 kg (5,290 lbs) and a breaking load of 4,800 kg (10,580 lbs). Its corrosion-resistant stainless steel construction makes it suitable for harsh environments, including saltwater exposure. The design incorporates precise dimensions for compatibility with standard fittings and hardware, with key measurements including a length of approximately 3-15/16 inches, width of 1-3/16 inches, and a mounting plate distance of about 2-23/64 inches. The pad eye’s versatile design allows it to serve multiple applications, from securing lifelines on boats to industrial anchoring points. It is sold individually, ensuring flexibility in installation and maintenance. This component is essential for professionals seeking a high-quality, dependable pad eye that combines strength, corrosion resistance, and ease of use in demanding environments.

Features:

• Entirely drop forged with high-quality 316L stainless steel for superior durability

• Outstanding working and breaking load capacities for safety in demanding conditions

• Suitable for a variety of fastening applications including shrouds, lifelines, and blocks

• Delivered with bolts and a counter-plate for straightforward installation

• Maximum tightening torque of 18 Nm ensures secure fastening without over-tightening
