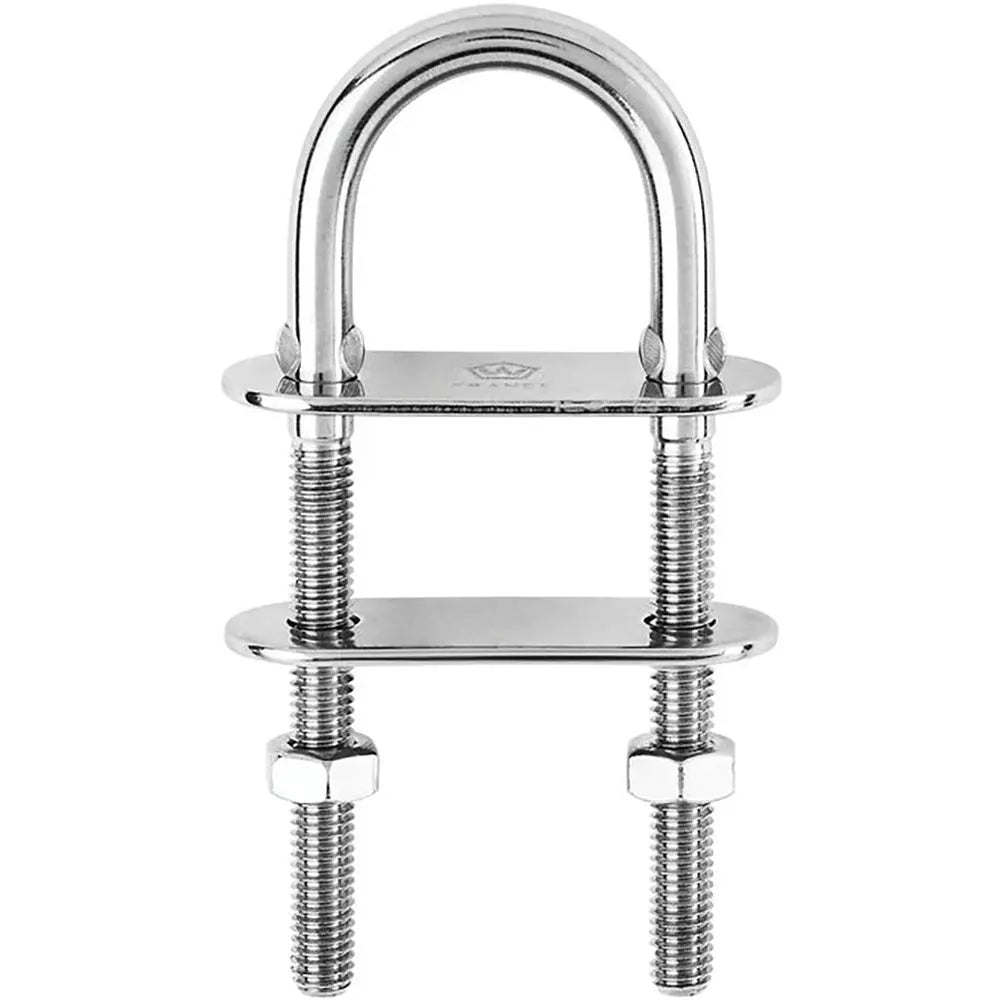

Wichard Marine U-Bolt Pad Eye 8mm Diameter, 5/16 Inch, 80mm Length for Heavy-Duty Marine and Industrial Fastening

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 mm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.251 / (g) 114

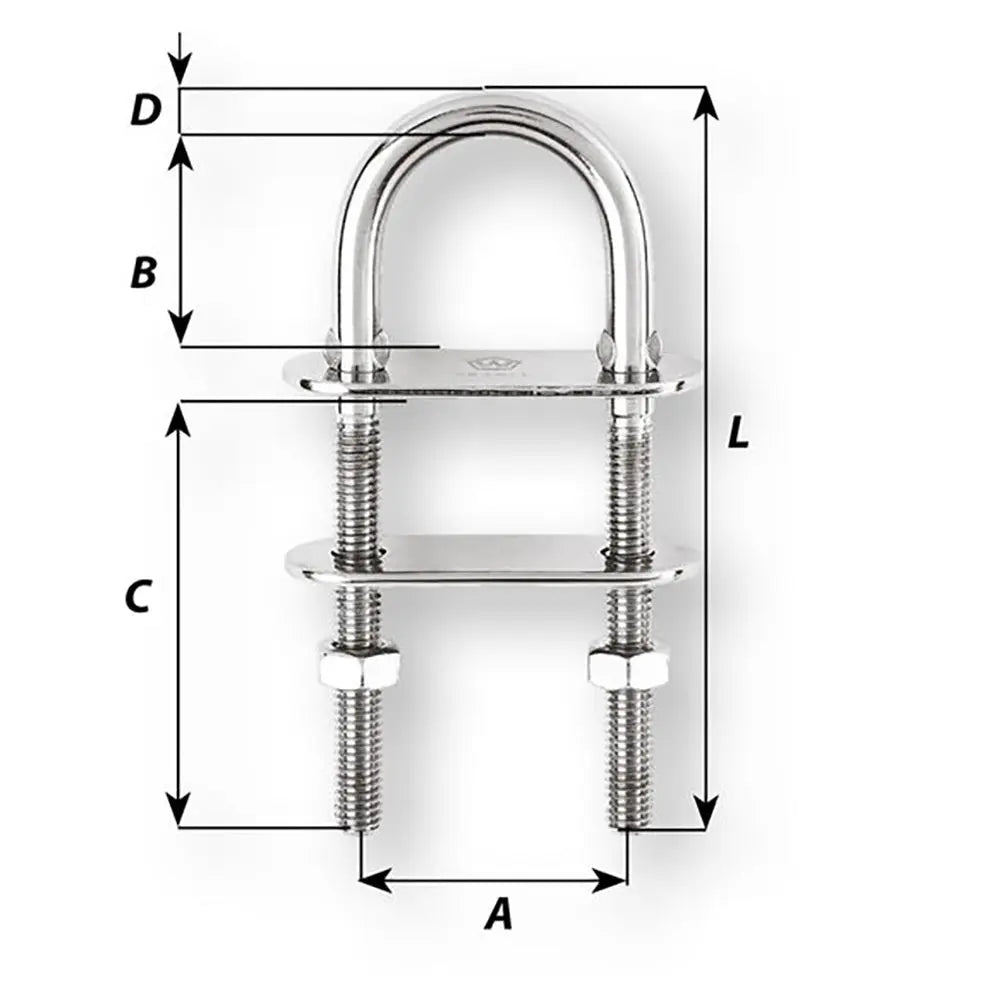

Dimensions:

• A: (inch) 1 27/64" / (mm) 36
• B: (inch) 1 3/16" / (mm) 30
• C: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 5/16" / (mm) 8
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye Part Number 6514W is crafted from high-quality 316L stainless steel, ensuring superior corrosion resistance and durability in demanding environments. Fully drop forged, this pad eye provides exceptional strength and reliable performance for a variety of fastening applications including shrouds, lifelines, and blocks. Its robust construction delivers outstanding working and breaking loads, making it suitable for both maritime and industrial use. The pad eye is supplied with bolts and a counter-plate, simplifying installation and ensuring secure fastening. Designed for versatility, it can handle a maximum tightening torque of 18 mm, offering flexibility for different setup requirements.

Features:

• Fully drop forged product with high-quality stainless steel for durability and strength

• Outstanding working load of 5,290 lbs (2,400 kg) and breaking load of 10,580 lbs (4,800 kg)

• Ideal for various fastening applications such as shrouds, lifelines, and blocks

• Delivered with bolts and a counter-plate for easy installation

• Max tightening torque: 18 mm for secure fastening
