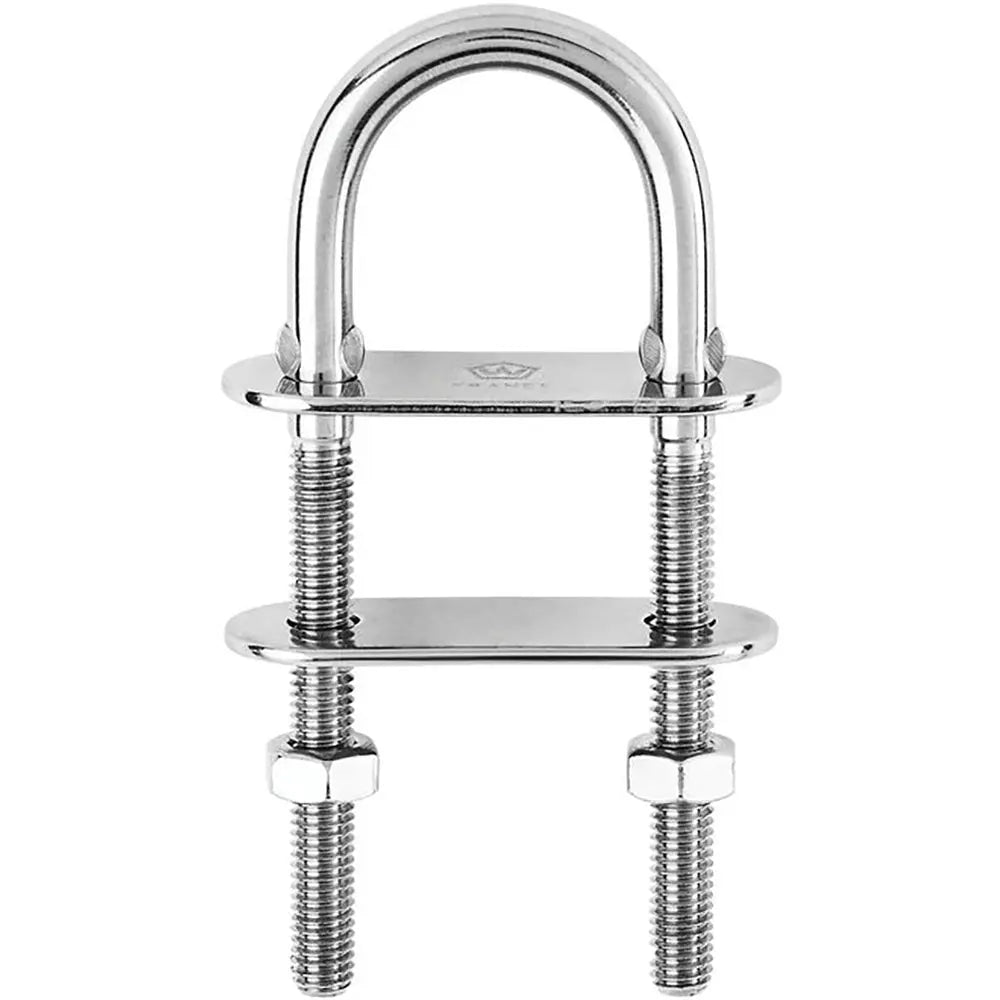

Wichard Marine U-Bolt Pad Eye with 12mm Diameter and 130mm Length

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.769 / (g) 349

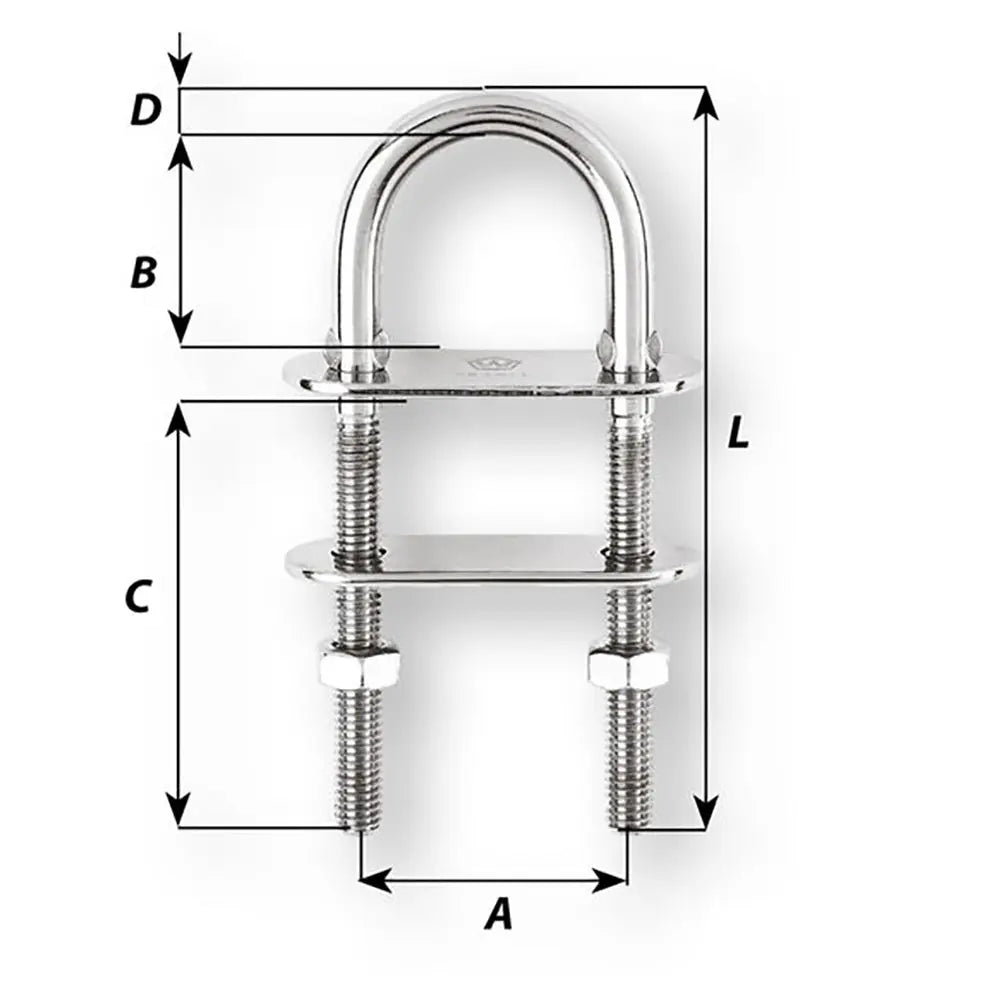

Dimensions:

• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 11/32" / (mm) 34
• C: (inch) 2 3/4" / (mm) 70
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 5 1/8" / (mm) 130

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6526W, is crafted from high-quality 316L stainless steel, ensuring durability and corrosion resistance suitable for demanding maritime environments. This drop-forged component features a 12mm (15/32 inch) diameter and a total length of 5-1/8 inches (130mm), making it ideal for various rigging and fastening applications including shrouds, lifelines, and blocks. Its robust design provides outstanding working and breaking loads, with a working load capacity of approximately 14,100 pounds (6,400 kg) and a breaking load of around 22,040 pounds (10,000 kg). Delivered complete with bolts and a counter-plate, this pad eye is engineered for secure fastening with a maximum tightening torque of 60 Nm, ensuring safety and reliability during use. The versatile application range and high load capacity make this pad eye suitable for both nautical and industrial settings, where safety factors and load limits are critical. Its compact dimensions allow for easy installation in tight spaces, providing a strong anchor point for various rigging and lifting operations. Designed to meet rigorous standards, the Wichard Marine U-Bolt Pad Eye combines strength, durability, and ease of use, making it a dependable choice for professionals and maritime enthusiasts alike.

Features:

• Entirely drop forged product with high-quality stainless steel

• Outstanding working and breaking loads for demanding applications

• Suitable for fastening applications such as shrouds, lifelines, and blocks

• Delivered with bolts and a counter-plate for easy installation

• Maximum tightening torque of 60 Nm for secure fastening
