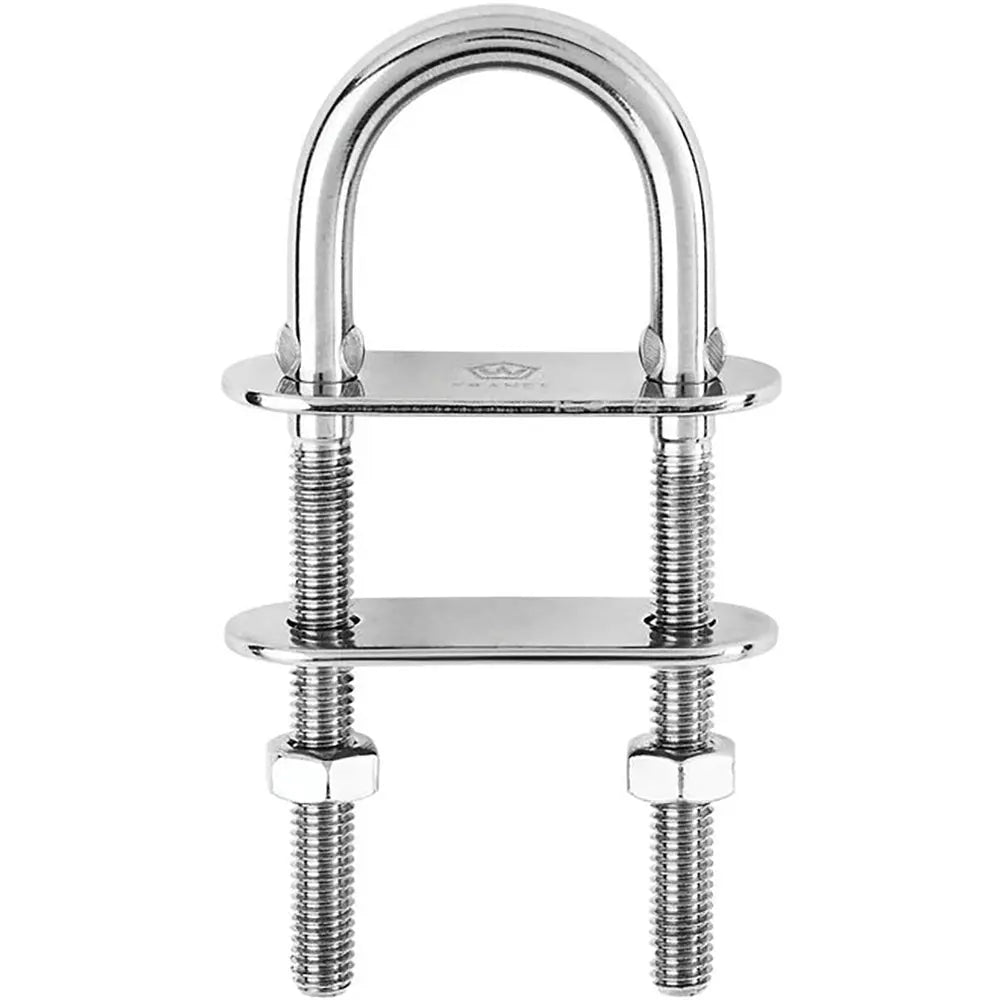

Wichard Marine U-Bolt Pad Eye with 5mm Diameter - 60mm Length for Nautical and Industrial Use

U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 4.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 1410 / (kg) 640
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.077 / (g) 35

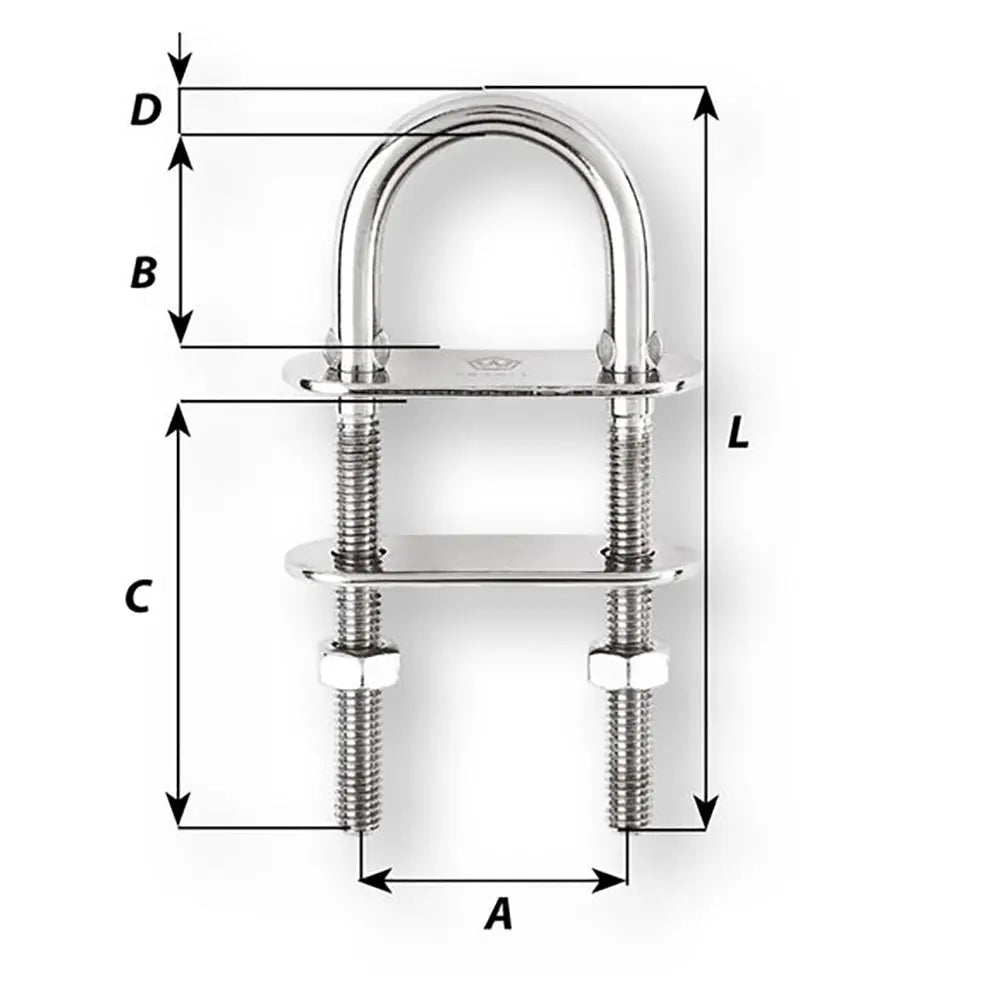

Dimensions:

• A: (inch) 1 7/64" / (mm) 28
• B: (inch) 15/16" / (mm) 24
• C: (inch) 1 3/16" / (mm) 30
• D diameter: (inch) 13/64" / (mm) 5
• Length: (inch) 2 23/64" / (mm) 60

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6512W, is a robust and versatile fastening component designed for demanding applications both in nautical and industrial environments. Crafted from high-quality 316L stainless steel, this fully drop-forged pad eye offers exceptional strength and durability, making it suitable for securing shrouds, lifelines, blocks, and other critical load-bearing connections. Its corrosion-resistant properties ensure reliable performance even in harsh marine conditions, providing peace of mind during prolonged use.

This pad eye features a 5mm diameter eyelet with a total length of approximately 2.4 inches, making it adaptable to various installation needs. It is supplied with bolts and a counter-plate for straightforward assembly, and is engineered to withstand working loads up to 640 kg (1,410 lbs) with a maximum breaking load of 2,000 kg (4,400 lbs). The design emphasizes safety and efficiency, with a recommended maximum tightening torque of 4.5 Nm to prevent over-tightening and maintain structural integrity. Its compact weight of around 35 grams (0.077 lbs) ensures minimal added load to the overall setup.

Ideal for both marine and industrial applications, this pad eye's dimensions and high load thresholds make it suitable for securing ropes, cables, and hardware in various structures. The safety factor of 5 times the breaking load for industrial use ensures a high margin of safety, while the working load limit for nautical applications aligns with industry standards. Whether used in rigging, lifting, or anchoring systems, the Wichard U-Bolt Pad Eye provides a reliable and durable solution for demanding fastening needs.

Features:

• Fully drop-forged stainless steel construction for enhanced strength and durability

• Outstanding working and breaking load capacities for demanding applications

• Suitable for securing shrouds, lifelines, blocks, and other fastenings

• Delivered with bolts and counter-plate for easy installation

• Maximum tightening torque of 4.5 Nm ensures proper assembly
