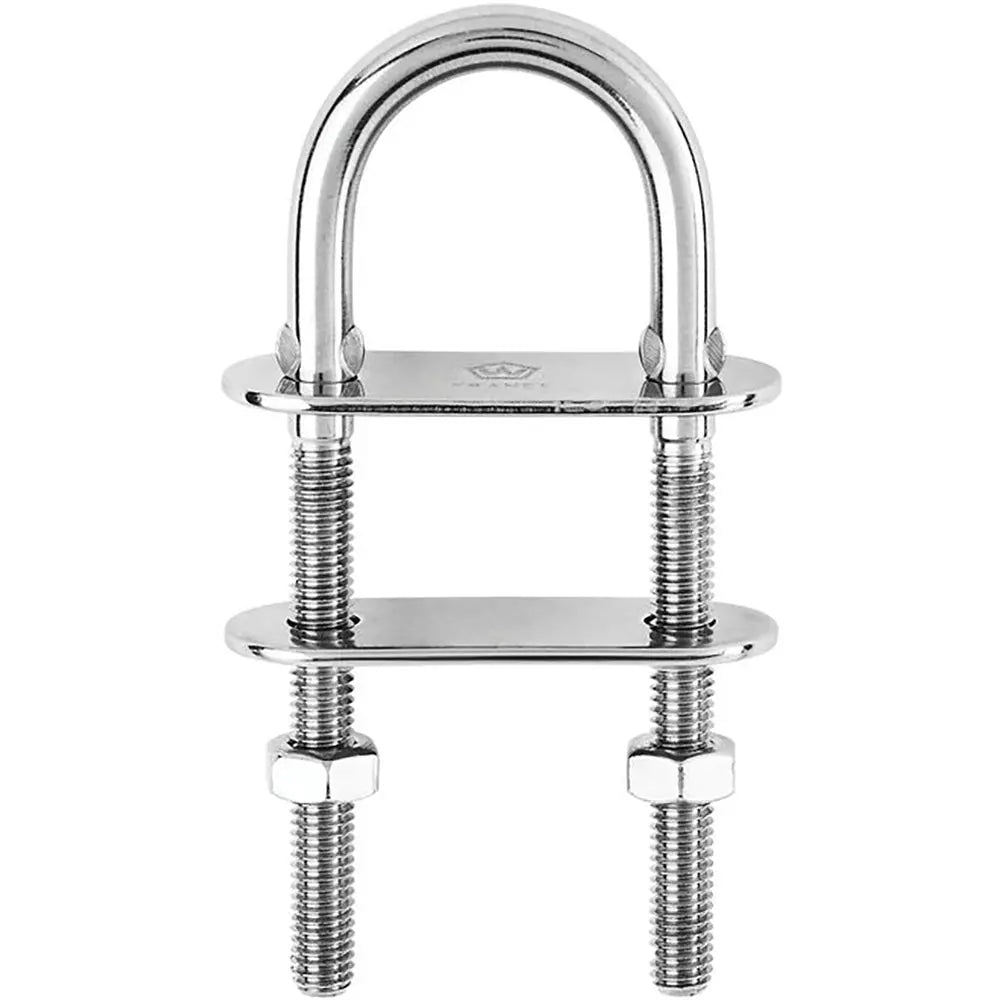

Wichard Marine U-Bolt Pad Eye with 6mm Diameter, 90mm Length, Part Number 6523W

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.148 / (g) 67

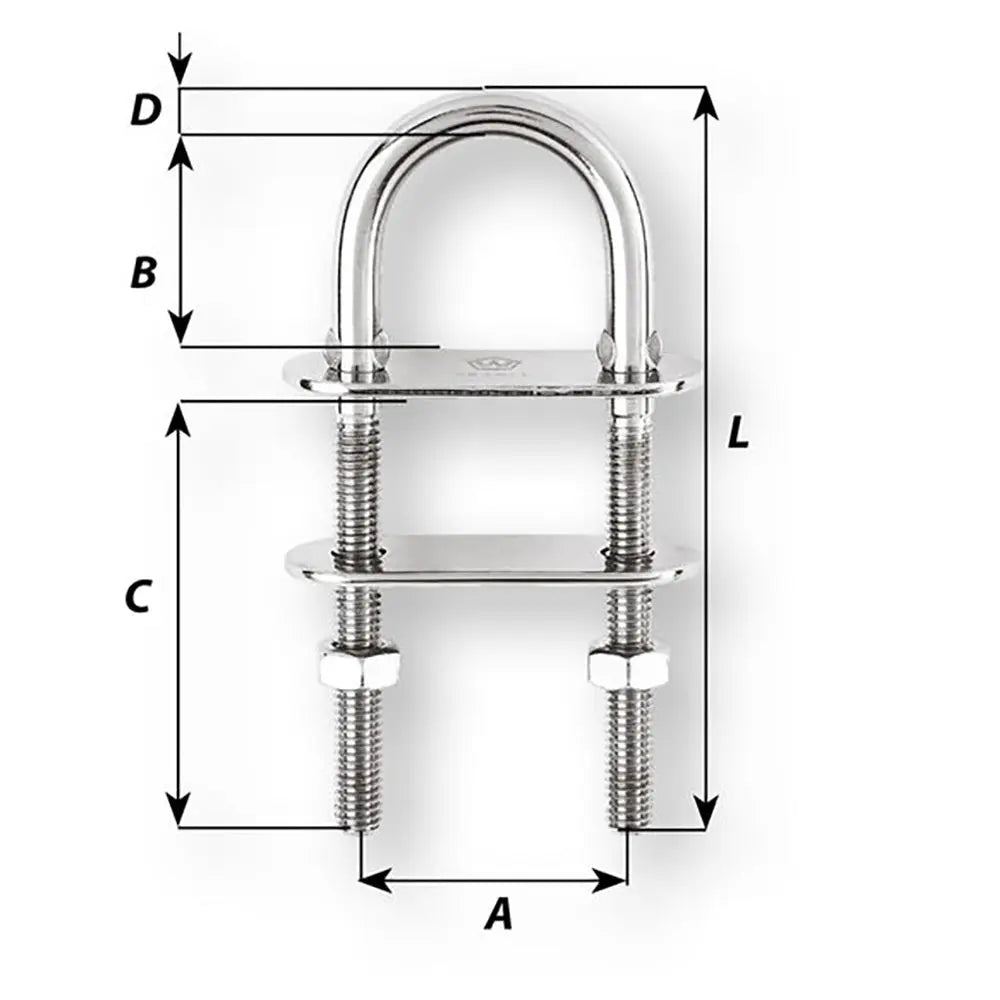

Dimensions:

• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 2 11/64" / (mm) 55
• D diameter: (inch) 15/64" / (mm) 6
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine U-Bolt Pad Eye, part number 6523W, is a high-quality stainless steel fastening component designed for demanding marine and industrial applications. Crafted from durable 316L stainless steel, this pad eye features a drop-forged construction that ensures exceptional strength and longevity. Ideal for securing shrouds, lifelines, and blocks, it provides reliable load-bearing capacity for both safety and structural stability. The product is supplied with bolts and a counter-plate, simplifying installation and ensuring a secure fit. The U-bolt's maximum tightening torque is 7.5 Nm, which helps prevent over-tightening while maintaining optimal performance. With a working load limit of 2,820 pounds and a breaking load of 6,610 pounds, this pad eye offers outstanding safety margins for various demanding applications.

Designed with precise dimensions, the pad eye measures approximately 3-5/8 inches in length with a 15/64-inch diameter U-bolt. Its compact size makes it suitable for tight spaces on boats, rigs, or industrial setups. The product's lightweight design, at just over 2.4 ounces, ensures minimal added weight without sacrificing strength. This component is perfect for securing shrouds, lifelines, or other rigging components where high load capacity and corrosion resistance are essential. Whether used in nautical environments or industrial settings, the Wichard Marine U-Bolt Pad Eye delivers dependable performance and long-lasting durability.

It is rated for nautical use with a working load of 2,820 pounds and an industrial working load limit of 565 pounds, based on a safety factor of 5 times the breaking load. This ensures safety and reliability in critical applications. The pad eye is easy to install, and its design allows for quick attachment and removal. Suitable for professionals and DIY enthusiasts alike, it is an essential component for any project requiring secure anchoring points. Trust Wichard Marine’s reputation for quality and precision engineering when selecting this versatile and dependable U-bolt pad eye.

Features:

• Drop-forged high-quality stainless steel construction for durability

• Outstanding working and breaking loads suitable for demanding applications

• Ideal for securing shrouds, lifelines, and blocks in marine and industrial environments

• Delivered with bolts and counter-plate for easy installation

• Maximum tightening torque of 7.5 Nm ensures secure fastening
