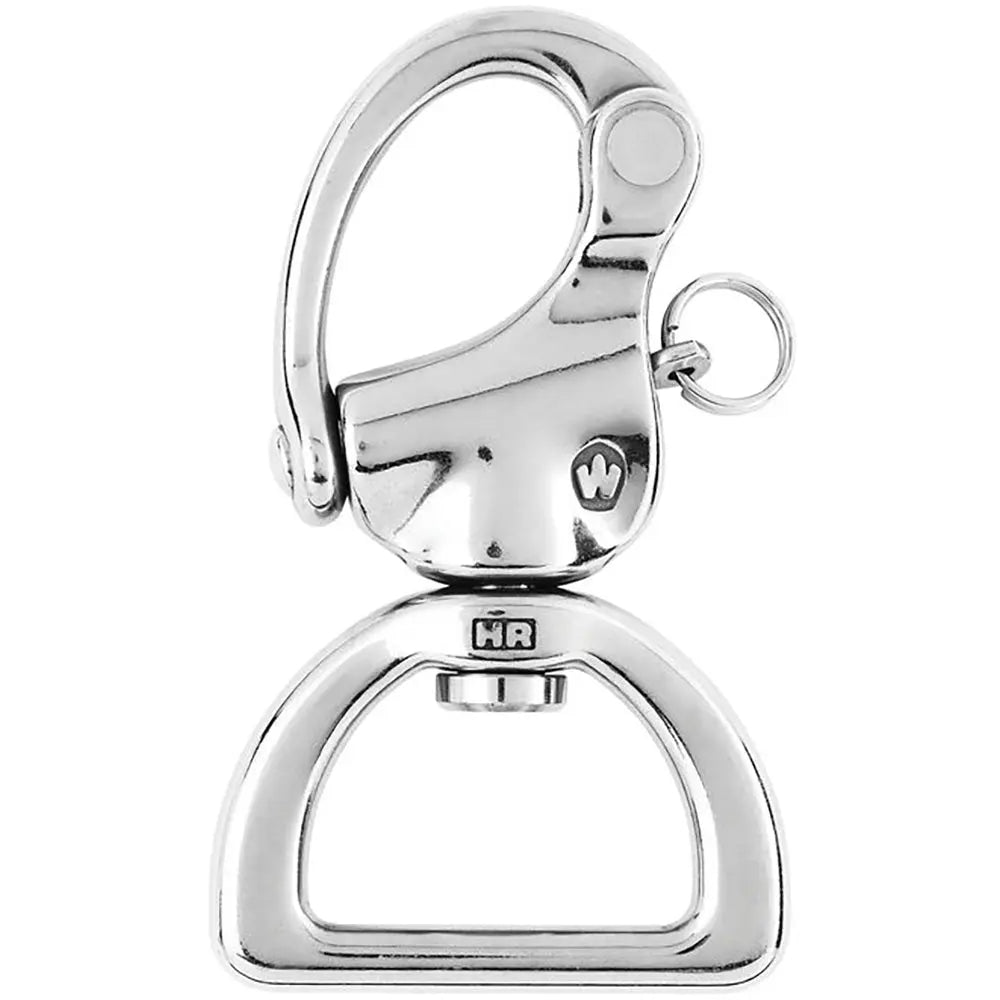

Wichard Marine Webbing Snap Shackle - 3-1/8 inch, Grade 17.4PH Stainless Steel

Web Snap Shackle - 3-1/8"

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.187 / (g) 85

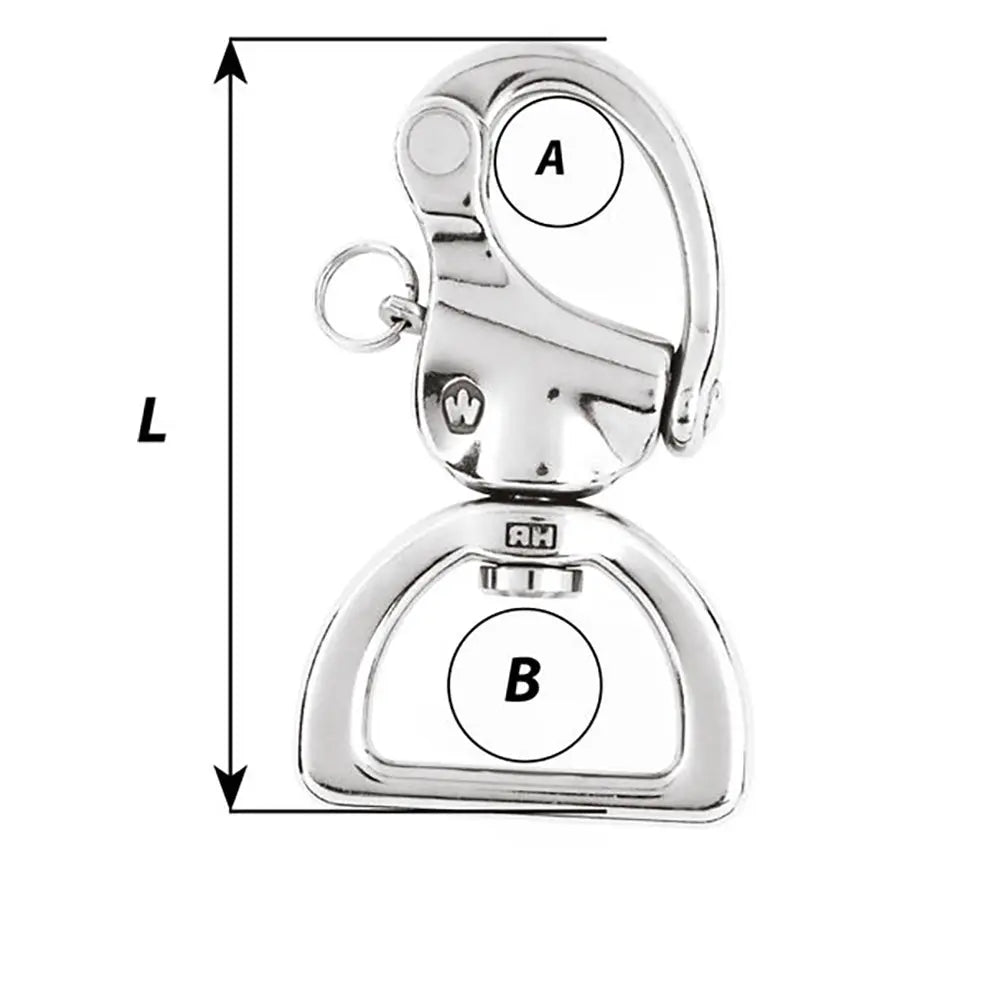

Dimensions:

• A: (inch) 5/8" / (mm) 16
• B: (inch) 1 3/16" / (mm) 30
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine Webbing Snap Shackle, part number 2374W, is a high-performance marine hardware component designed for demanding nautical applications. Crafted from durable Grade 17.4PH stainless steel, this snap shackle features a flat design that facilitates easy attachment to webbing, making it ideal for sailboat rigging and other marine setups. Its robust construction ensures excellent working and breaking loads, providing reliable performance under heavy loads. The shackle's free-rotating swivel eye allows for smooth movement and better sail orientation, reducing stress on attachment points and improving overall sailing efficiency. The captive plunger pin ensures secure closure and prevents accidental detachment, while its straightforward pull-open mechanism allows for quick release, with the option to attach a lanyard for added convenience. This versatile shackle is suitable for both nautical and industrial applications, with a working load limit of 960 kg (2,110 lbs) and a breaking load of 2,000 kg (4,400 lbs). Its compact weight and dimensions make it easy to handle and install in tight spaces. The design complies with safety standards, featuring a safety factor of five times the breaking load for industrial use, ensuring maximum security during operation. Whether used for sail rigging or industrial load management, the Wichard Marine Webbing Snap Shackle offers durability, reliability, and ease of use in a compact form factor.

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel) with webbing swivel for strength and durability

• Flat design allows easy attachment to webbing for various marine applications

• Swivel eye enables free rotation, improving sail orientation and reducing stress

• Captive plunger pin prevents detachment and ensures secure closure

• High working and breaking loads provide reliable performance under heavy loads

• Easy to open by pulling the plunger pin, with optional lanyard attachment for convenience
