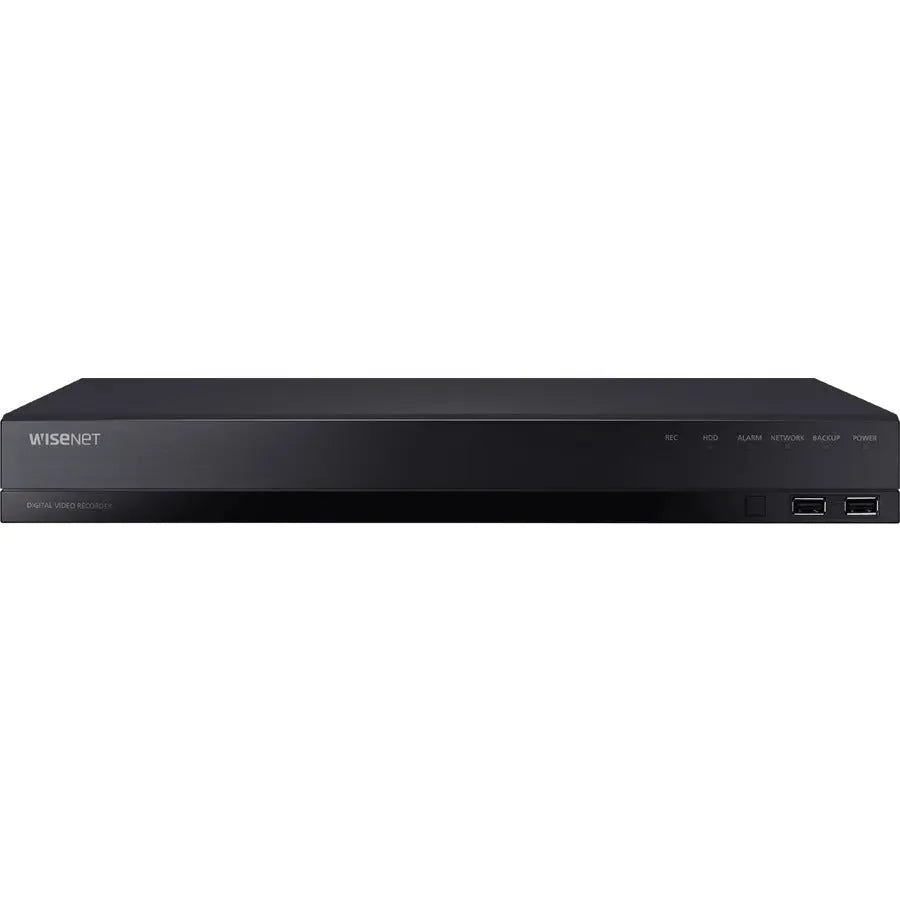

Wisenet 16-Channel Pentabrid DVR HRX-1634 for Advanced Video Surveillance

The Wisenet HRX-1634 is a versatile 16-channel pentabrid digital video recorder designed for comprehensive security monitoring. It supports a wide range of input types including AHD, HDTVI, HDCVI, CVBS, and IP, making it compatible with various camera systems. This DVR allows for up to 18 total channels—16 analog and 2 network—enabling extensive surveillance coverage with high-resolution recording up to 8MP. Equipped with advanced H.265, H.264, and MJPEG codecs, it ensures efficient compression and high-quality video playback. The system is capable of recording analog cameras at resolutions up to 8MP at 15 frames per second and supports multiple lower resolutions at higher frame rates, providing flexibility for different surveillance needs.

This model features a maximum recording bandwidth of 128Mbps and a playback bandwidth of 32Mbps, ensuring smooth video streaming and review. It includes 4 audio input channels with one output, along with 16 alarm inputs and 4 relay outputs for enhanced security integrations. The coaxial control interface simplifies camera management, while the support for up to two 6TB SATA HDDs offers ample storage for lengthy recordings. Video outputs include HDMI and VGA ports, along with a dedicated spot monitor output, providing multiple options for real-time viewing and monitoring setups. Whether for small business or large-scale security systems, the Wisenet HRX-1634 provides reliable, high-performance surveillance capabilities in a robust package.

Features:

• 5-in-1 16-channel pentabrid DVR supporting multiple camera inputs

• Supports AHD, HDTVI, HDCVI, CVBS, and IP video inputs

• Maximum of 18 channels (16 analog + 2 network), supporting up to 8MP resolution

• Advanced video codecs including H.265, H.264, and MJPEG for efficient compression

• Records analog cameras at resolutions up to 8MP (15fps) and lower resolutions at higher frame rates

• Maximum recording bandwidth of 128Mbps and playback bandwidth of 32Mbps for smooth operation

• Includes 4 audio inputs, 1 audio output, 16 alarm inputs, and 4 relay outputs for integrated security management

• Coaxial control interface for simplified camera and device management

• Supports up to 2 SATA HDDs of 6TB each for extensive storage capacity

• Multiple video output options including HDMI, VGA, and spot monitor for flexible viewing options
