Enhanced Energy Optimization SmartSolar Performance.
The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability.
Features:
Ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating
Xantrex MPPT control algorithm maximizes solar system efficiency and energy harvesting effectiveness
Manages and optimizes power output from a diverse array of solar panels under varying environmental conditions
Regulates power and current flow to protect and prolong battery lifespan
The batterys status is monitored, and the charging current is adjusted to prevent overcharging when fully charged
Protection against short-circuiting enhances safety, while protection against input overloading enhances
system reliability and longevity
Battery temperature compensation boosts both system performance and charging efficiency
Real-time monitoring provides data on energy usage and solar power system efficiency
Dynamic power reduction prevents overheating and improves battery performance and safety
Specifications:
LED indicators display PV charging, charger stage, and event status
Remote panel for monitoring and setting (requires the Solar MPPT Remote Panel)
Lead-acid, AGM (Sealed), Gel, Flooded, Lithium batteries and custom
Current-limiting charging mode
Xantrex App for ultimate control
Compliance: UL1741CSA C22.2#107.1

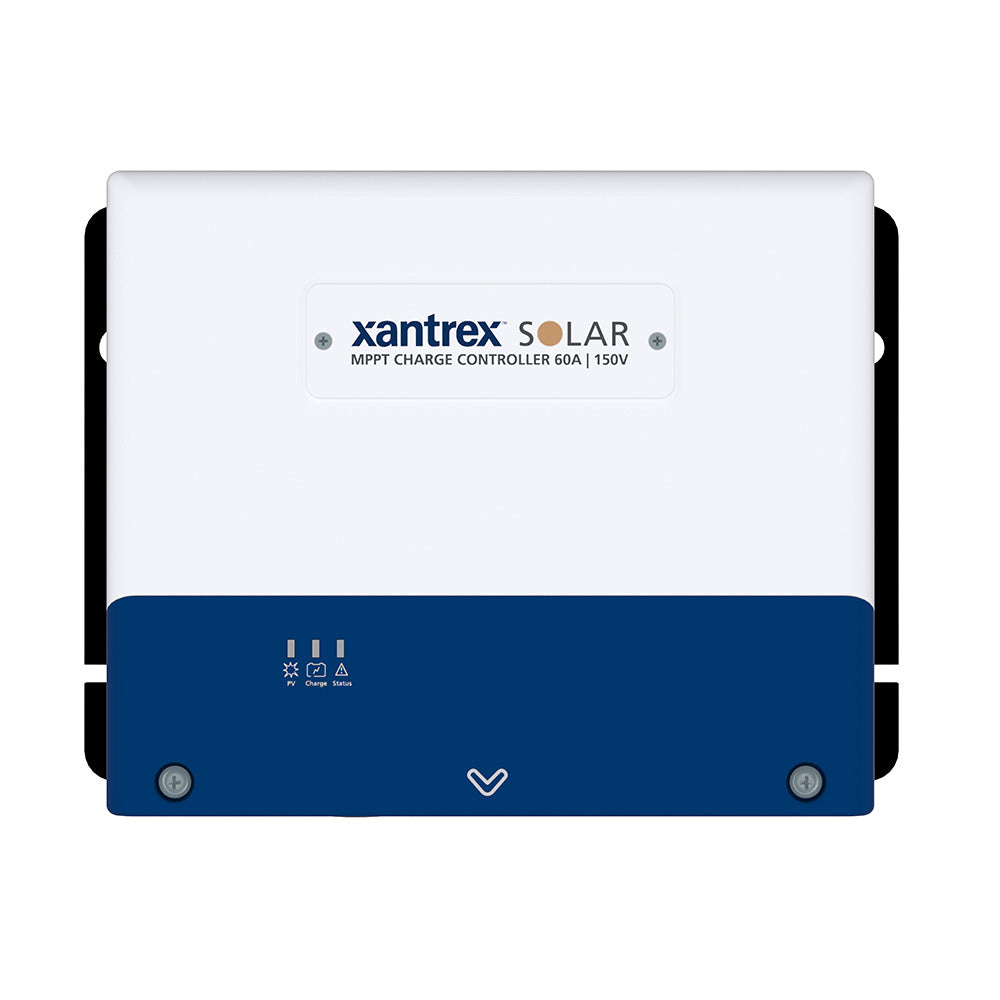

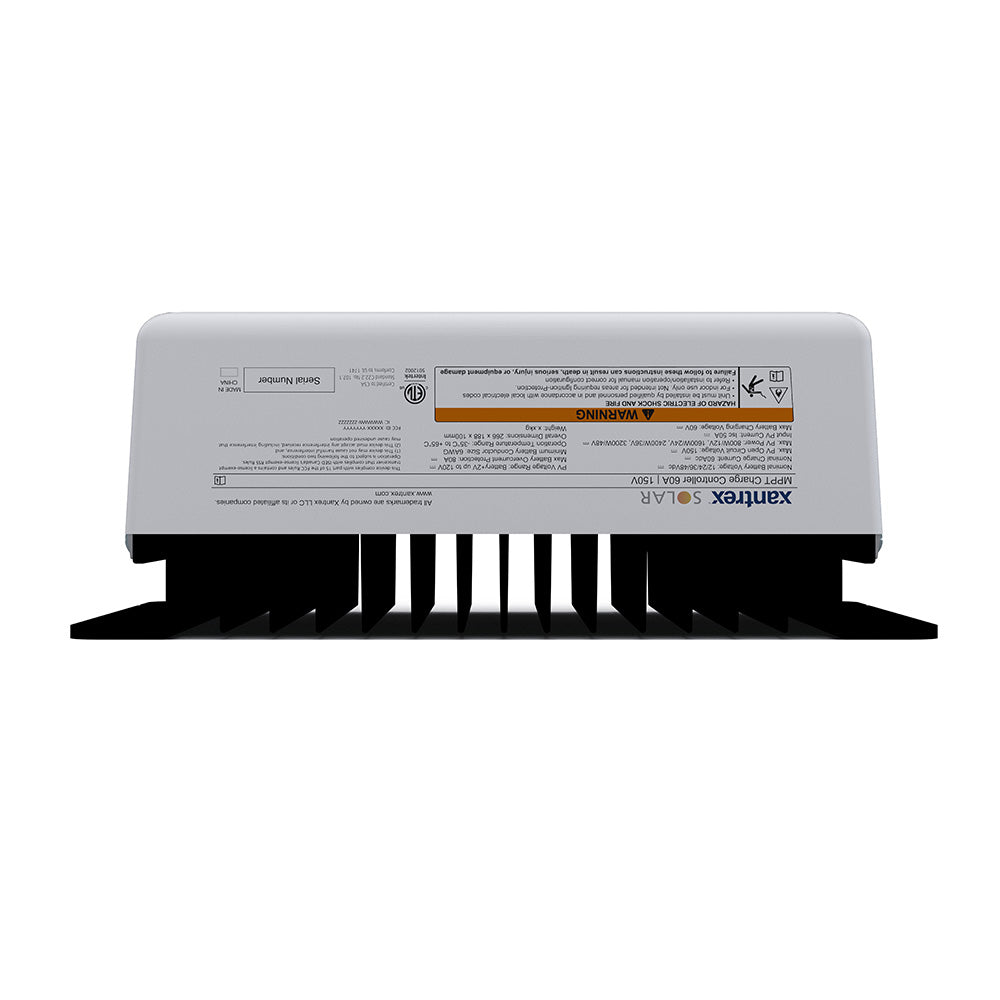

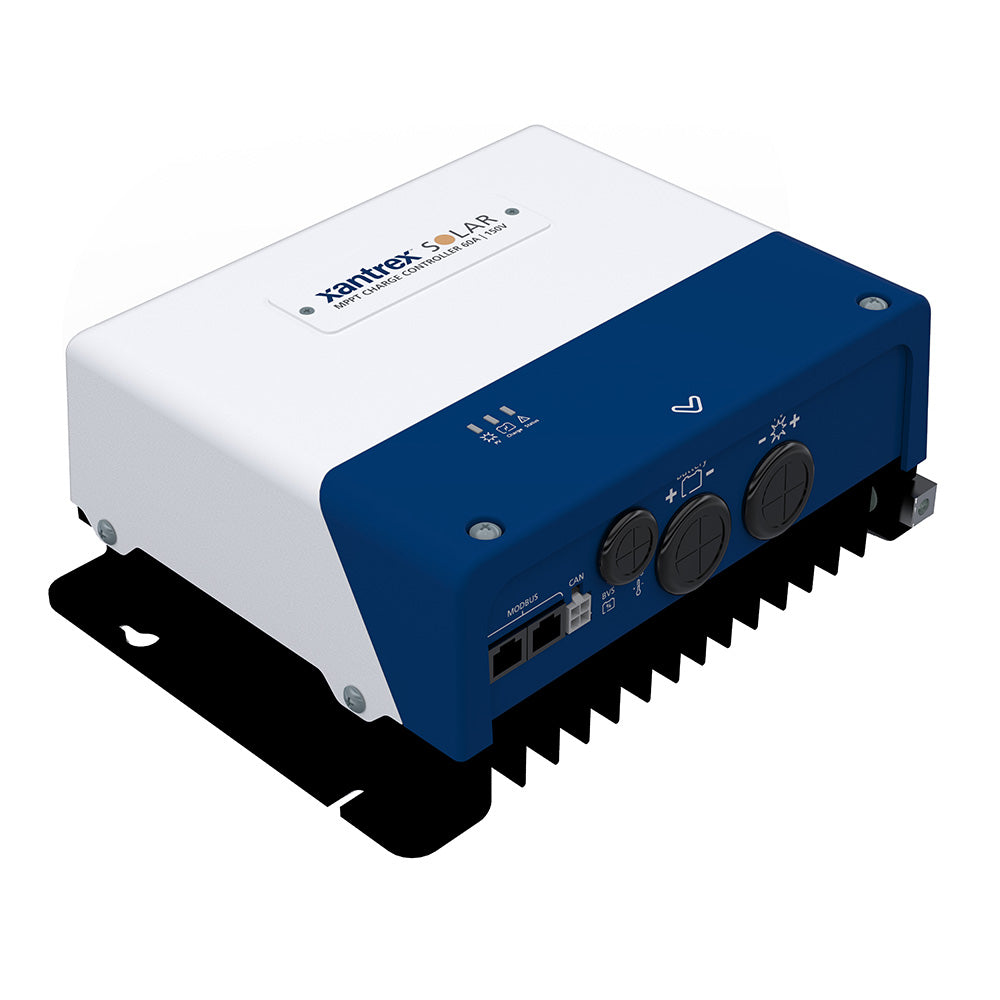

The Xantrex 60 AMP MPPT Solar Charge Controller is designed to maximize your solar energy harvesting and enhance system reliability. Supporting up to 150V and 60A, this advanced controller utilizes high-speed Maximum Power Point Tracking (MPPT) technology to deliver up to 30% more power than traditional PWM chargers. Its compatibility with 12V, 24V, 36V, and 48V battery systems makes it suitable for a wide range of applications, from RVs to off-grid installations. The controller's real-time energy monitoring and comprehensive historical data help users make informed decisions, optimize system performance, and increase energy savings. Its robust design ensures long-term durability, safeguarding your investment in renewable energy systems.
Features:
Ultra-fast tracking speed with multiple power point peaks and a 99.5% efficiency rating
Utilizes Xantrex MPPT control algorithm to maximize solar system efficiency and energy harvesting
Manages and optimizes power output from diverse solar panels under varying environmental conditions
Regulates power and current flow to protect and extend battery lifespan
Monitors battery status and adjusts charging current to prevent overcharging
Includes protection against short-circuiting and input overloading to enhance safety and system longevity
s battery temperature compensation to improve performance and charging efficiency
Provides real-time data on energy usage and solar system efficiency
Dynamic power reduction to prevent overheating and ensure safe battery operation
Equipped with LED indicators for PV charging, charger stage, and event status
Remote monitoring and control via optional Solar MPPT Remote Panel and Xantrex App
Built-in communication interfaces including RV-C, Modbus, and Bluetooth
Suitable for various battery types including lead-acid, AGM, Gel, Flooded, and Lithium
Includes current-limiting charging mode for safe operation
Compliance with UL1741 and CSA C22.2#107.1 safety standards
