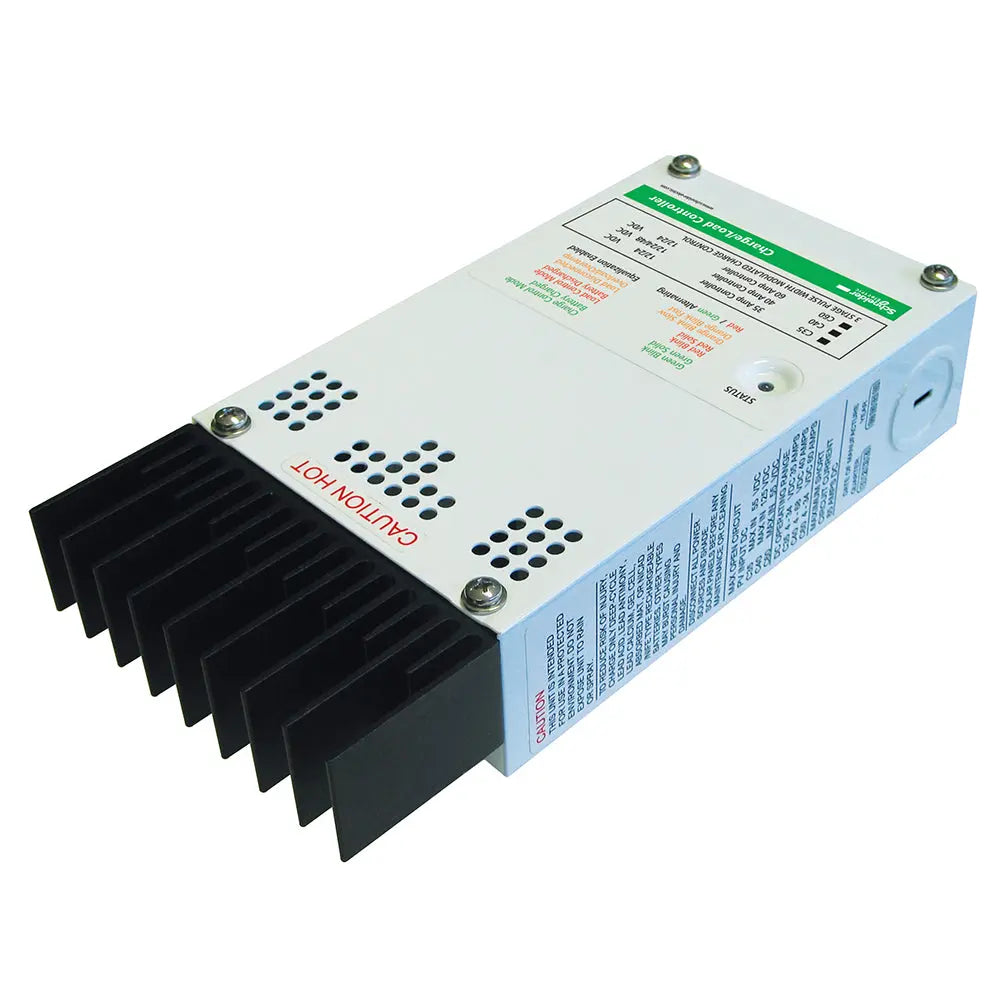

Xantrex C-Series Solar Charge Controller - 60 Amps for PV and DC Load Control

C-Series Solar Charge Controller - 60 Amps

PV charge, diversion and load controller

The C35 and C60 are field configurable for 12 V and 24 V operation. The C40 may be configured for 12 V, 24 V, or 48 V operation. C35, C40 and C60 charge controllers can be used as a charge, diversion, or load controller and come with a standard multi-color charge status LED face plate.

A Controller for Virtually any DC Charging Source. The C60 is a fully solid state, microprocessor-driven controller that is UL and cUL listed. C Series controllers may be configured for PV battery charging, or DC load control or DC diversion operation. Whatever the charging source, a C Series controller is sure to meet your DC controller needs.

Silent Microprocessor Control-All C Series controllers have a powerful microprocessor at their core which increases system performance and maximizes battery life. They are fully solid state and operate silently.

Features:

• Improve battery life with pulse width modulated (PWM) multi-stage temperature compensated charging
• Two-year standard warranty
• PV charge, diversion, load controller
• Available remote display with cumulative AMP hours
• Electronic protection against short-circuit, overload, and over-temperature conditions
• Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure
• Field adjustable voltage and battery set point
• Automatically disconnects from the battery at night
• Compatible with negative ground and ungrounded systems

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

The Xantrex C60 is a versatile, high-capacity solar charge controller designed for reliable power management in solar and DC systems. With a robust 60-amp rating, this controller is suitable for a wide range of applications including PV battery charging, diversion, and load control. Its field-configurable design supports 12 V, 24 V, and 48 V systems, providing flexibility for various energy setups. The C60 features a fully solid-state, microprocessor-driven architecture, ensuring silent operation and precise control for optimal system performance. It is UL and cUL listed, confirming its compliance with safety standards. This controller enhances battery life through pulse width modulation (PWM) multi-stage temperature compensated charging, which intelligently adjusts charging parameters based on environmental conditions. An electronic protection system safeguards against short-circuiting, overload, and overheating, maintaining system integrity under harsh conditions. The C60 includes a standard multi-color LED faceplate that displays real-time charge status, and an optional remote display offers additional features such as cumulative amp-hour tracking. Field adjustments for voltage and battery set points allow tailored system configurations, while automatic night disconnect prevents unnecessary parasitic drain. Compatible with negative ground and ungrounded systems, the Xantrex C60 is ideal for solar power installations requiring a dependable and adaptable charge management solution. Its conformal-coated boards and powder-coated enclosure ensure resilience in demanding environments, making it suitable for various outdoor and industrial settings. Whether used for PV systems or as part of a larger DC power management setup, the C60 delivers efficient, silent operation with comprehensive protection and control features.

Features:

• Improves battery life with pulse width modulation (PWM) multi-stage temperature compensated charging

• Two-year standard warranty

• PV charge, diversion, load controller

• Available remote display with cumulative amp-hour tracking

• Electronic protection against short-circuit, overload, and over-temperature conditions

• Conformal-coated boards and powder-coated enclosure for durability in hostile environments

• Field adjustable voltage and battery set points

• Automatically disconnects from the battery at night to prevent parasitic drain

• Compatible with negative ground and ungrounded systems
