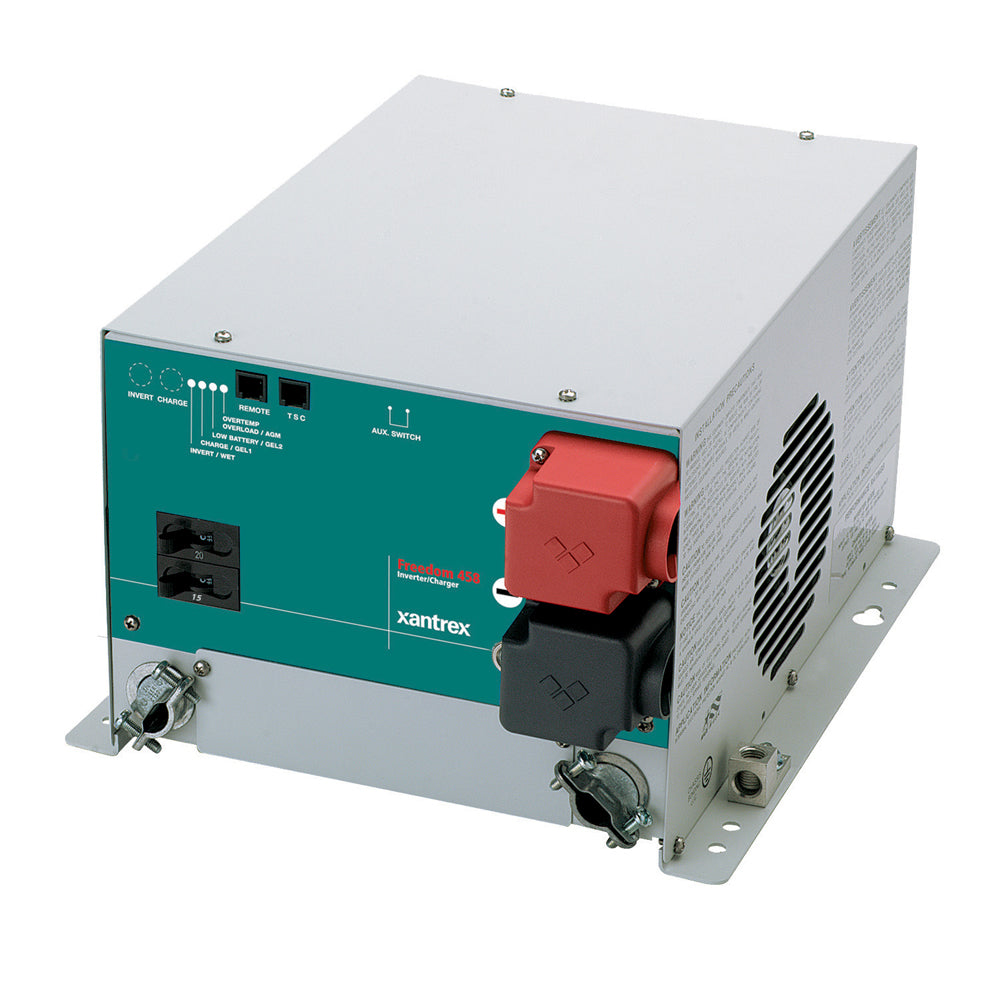

Xantrex Freedom 458 2000W Inverter/Charger with 3-Stage Battery Management

Freedom 458 Inverter/Charger

AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.

For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.

Product Features

• MSW AC power inverter with high surge capability

• Automatic 3-stage battery charger

• Temperature compensation with equalization stage provides optimal charging of deep cycle batteries

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power sharing prevents source AC input circuit breaker from tripping

• Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels

• Includes battery temperature sensor

• 30 month warranty

Protection Features

• Over voltage and under voltage protection

• Over-temperature protection

• Overload protection

• Short circuit protection

Electrical Specifications - Inverter

• Output power (continuous): 2000W

• Surge power (AC amps): 50A

• Output frequency regulation: 60Hz

• Inverter voltage regulation: 120V +/-5% true RMS

• Output wave form: Modified sine wave

• Efficiency (full load): 85%

• Peak efficiency: 92%

• No load current draw (idle mode): 0.12A

• AC output connections: Dual - 20/15 Circuit Breakers

• AC input connections: Single

• AC transfer switch: 30A

Electrical Specifications - Charger

• Charge rate: 100A DC

• AC input voltage range: 90 130 VAC

• Battery voltage (nominal): 12 VDC

• Battery voltage range: 10.0 15.5 VDC

• Low battery cut-out: 10.0 VDC

• AC input (max. charge mode): 21A AC

• Bulk charge voltage: 14.3 VDC***

• Float charge voltage: 13.4 VDC***

• Equalize charge voltage: 16.3 VDC

• Charge control: 3-stage

• Battery type settings: Wet / Gel 1 / Gel 2 / AGM

• Equalization: Yes

• Temperature sensitive charging: Yes

***Default value varies with battery type and temperature

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Xantrex Freedom 458 Inverter/Charger is a reliable power solution designed for RV, marine, and off-grid applications. Featuring a 2000-watt continuous inverter with high surge capacity, it can handle everyday electrical loads from appliances to electronics. The modified sine wave output ensures compatibility with a wide range of devices, while the built-in transfer switch automatically switches between inverter power and incoming AC power for seamless operation. Its advanced multistage charging system, including temperature compensation and equalization, ensures your deep-cycle batteries are charged efficiently and safely, extending their lifespan.
The device includes a temperature sensor for precise charge regulation and allows for customized settings via the optional Freedom Basic Remote or Link 1000 instrumentation, providing flexible system monitoring and control. Safety features such as over-voltage, under-voltage, overload, short circuit, and over-temperature protection safeguard your investment from electrical faults, ensuring reliable operation in demanding environments.
The inverter/charger's power sharing capability helps prevent circuit breaker trips by efficiently distributing power between sources. The dual AC output connections and a 30A transfer switch facilitate versatile installation options. The charger component delivers up to 100A DC current with a configurable charging profile suitable for various battery types, including wet, gel, and AGM batteries. Its temperature-sensitive charging adapts to environmental conditions, optimizing battery health and performance. This unit is backed by a 30-month warranty, ensuring peace of mind for long-term use.
Designed with user safety and system flexibility in mind, the Xantrex Freedom 458 provides an all-in-one solution for power management, combining inverter, charger, and transfer switch functionalities. Whether powering a RV or renewable energy system, this inverter/charger is engineered to deliver dependable, efficient performance while protecting your batteries and electrical devices from common faults. Its compact design and comprehensive features make it an excellent choice for those seeking a robust power conversion and management solution.

Features:

• MSW AC power inverter with high surge capability

• Automatic 3-stage battery charger

• Temperature compensation with equalization stage for optimal battery charging

• Built-in transfer switch for automatic switching between inverter and AC power

• Power sharing prevents circuit breaker tripping

• Customizable settings via optional remote and instrumentation panels

• Includes a battery temperature sensor

• 30-month warranty for reliability and peace of mind
