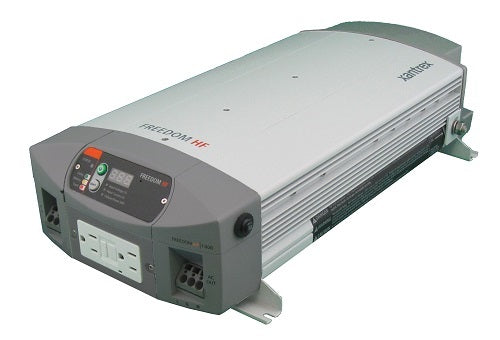

Xantrex Freedom HF1800 1800W Inverter with 40A Charger for RVs and Boats

Xantrex Freedom HF1800 1800W Inverter W/40A Charger

The Xantrex Freedom HF1800 inverter/charger offers a reliable power solution for mobile applications such as RVs, boats, and trucks. With an output power of 1800 watts and a surge capacity of 3600 watts, it efficiently powers demanding loads including microwaves, televisions, and small appliances. Its modified sine wave output ensures compatibility with a wide range of electronic devices, making it ideal for on-the-go entertainment and essential small appliance operation. The unit's compact design and lightweight construction make installation straightforward and adaptable to limited space environments, while its integrated digital display provides real-time system monitoring for user convenience. The display is removable and can be extended via a 25-foot cable for remote viewing, allowing users to keep tabs on system status from a distance.

Designed with ease of installation in mind, the Freedom HF1800 features quick-connect AC terminals on both input and output sides, eliminating the need for strain relief clamps and simplifying wiring. It incorporates an ignition lockout feature that disables the inverter when the vehicle's ignition is turned off, helping to minimize battery drain during idle periods. The unit includes a built-in 30-amp relay to automatically switch between inverter power and incoming AC utility power, ensuring seamless power transfer. Its sophisticated three-stage automatic battery charger adapts to battery needs, optimizing charge cycles and extending battery life. The inverter is compatible with various battery types, including flooded, gel, and AGM, with adjustable voltage settings for flexible system configuration.

Safety and protection are paramount; the Xantrex Freedom HF1800 is equipped with multiple safeguards such as over-voltage and under-voltage protection, over-temperature shutdown, overload and short-circuit protection, and ground-fault detection. Certified to UL458 standards, it meets the requirements for mobile RV and commercial applications. With an efficiency greater than 80% and peak efficiency exceeding 87%, this inverter/charger ensures minimal energy loss and optimal performance. Its durable construction and temperature-sensitive charging features enable reliable operation across a wide temperature range, making it a dependable choice for mobile power needs. The unit's weight is approximately 12.8 pounds, and it measures roughly 4.2 x 9.5 x 18 inches, fitting comfortably into tight spaces while delivering robust power capabilities.

Features:

• 1800-watt continuous power output with 3600-watt surge capacity for demanding loads

• Modified sine wave output suitable for various electronic devices

• Removable digital display with 25-foot extension cable for remote monitoring

• Quick-connect AC terminal blocks for easy installation and wiring convenience

• Ignition lockout feature to reduce battery drain when the vehicle is off

• Built-in 30-amp relay for automatic transfer between inverter and utility power

• Three-stage automatic battery charger optimized for different battery types

• Compatible with flooded, gel, and AGM batteries with adjustable voltage settings

• Protection features including over-voltage, under-voltage, over-temperature, overload, short-circuit, and ground-fault safeguards

• Certified to UL458 standards for mobile RV and commercial use

• High efficiency (>80%) with peak efficiency over 87% for minimal energy loss

• Durable construction suitable for demanding environments
