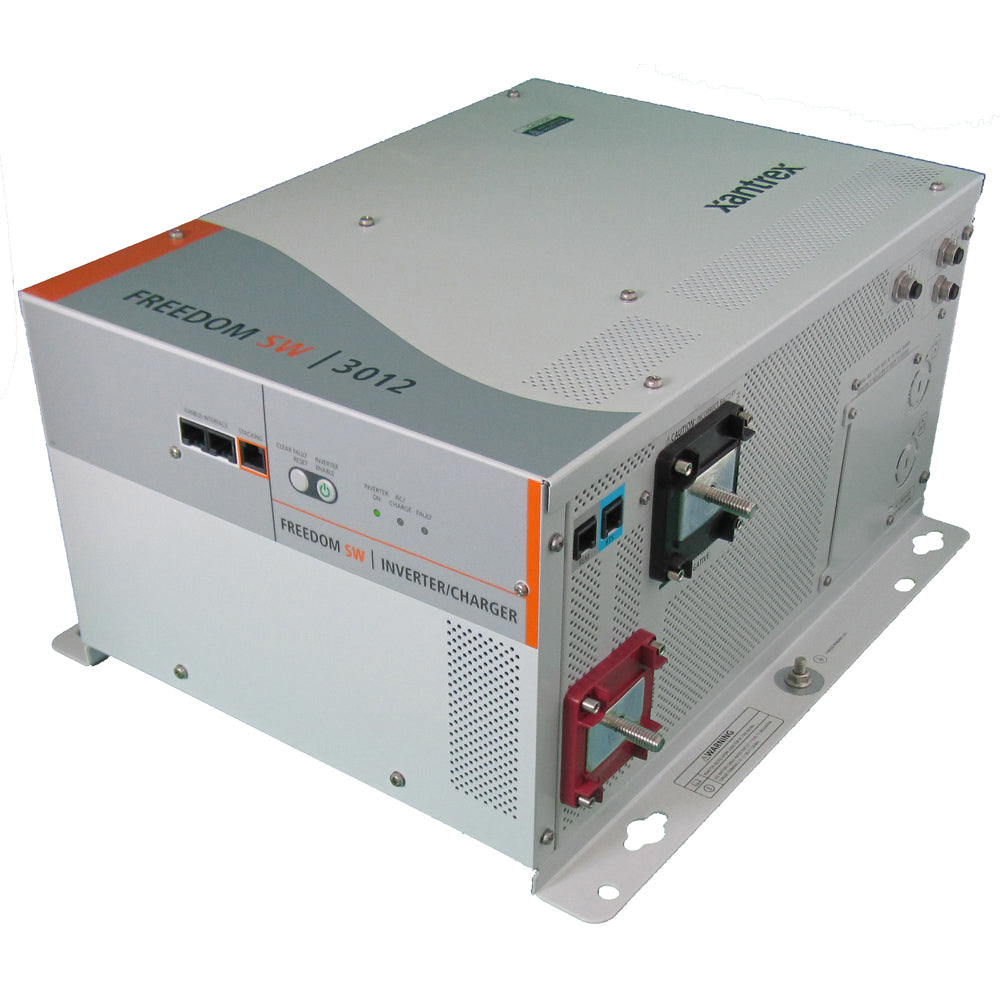

Xantrex Freedom SW3012 Inverter/Charger815-3012
12V, 3000W - 120 Vac / 60 Hz
Powerful. Configurable. Versatile...
The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.
Product DescriptionThe second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.
NEW - PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output
2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)
ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.
Product Features
- Pure sine wave output to operate sensitive electronics
- Advanced configuration options for customized applications
- Parallel and series stacking capability
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power factor corrected, multi-stage charger for fast, efficient charging
- Temperature compensated charging for a vareity of climate conditions
- Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3
- Wide operating temperature range: -4F to 140F (-20C to 60C)
- Conformal coated circuit boards for humid environments
- Dual input / Dual output AC interface for 3000 W model
- Ability to charge batteries drained to extremely low voltage
- Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915)
3When used with the remote panel
4Sold separately
Protection Features
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Integrated, resettable AC breakers
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Xantrex Freedom SW3012 Inverter/Charger is a versatile power solution designed for demanding mobile, marine, and emergency environments. With a continuous power output of 3000 watts and a peak capacity of 3000 watts, this model delivers reliable, pure sine wave power suitable for sensitive electronics and high-demand appliances. Its advanced design incorporates multiple configuration options, including parallel and series stacking, allowing users to double inverter capacity or generate split-phase 120/240 V output for increased flexibility in complex electrical setups. The built-in transfer switch ensures seamless switching between inverter power and incoming AC sources, minimizing power disruption during transitions. This model is engineered with a multi-stage, power factor corrected charger that efficiently replenishes batteries, even from extremely low voltages, while temperature compensation adapts charging based on ambient conditions, prolonging battery life. Designed for rugged environments, it features conformally coated circuit boards for humidity resistance and a broad operational temperature range from -4°F to 140°F, making it suitable for diverse climates. Compatibility with the Xantrex Automatic Generator Start enhances automation in remote or off-grid systems, providing added convenience and reliability. Safety features include battery over-voltage and under-voltage protection, over-temperature shutdown, automatic overload, and short-circuit protection, all integrated with resettable AC breakers for ease of maintenance. The inverter/charger complies with UL458, CSA, ABYC, and FCC Class B standards, ensuring safety and regulatory compliance. Its compact design and dual AC input/output interface make it ideal for various applications such as recreational vehicles, marine vessels, military, and construction equipment, offering a powerful, configurable, and dependable power management solution for challenging environments.
Features:
- Pure sine wave output suitable for sensitive electronics
- Advanced configuration options for customized applications
- Parallel and series stacking capability for expanded power and split-phase output
- Built-in transfer switch for automatic switching between inverter and AC power
- Multi-stage, power factor corrected charger for fast, efficient battery charging
- Temperature compensated charging for optimal performance in various climates
- Ignition lockout feature to prevent unnecessary battery drain when engine is off
- Wide operating temperature range from -4°F to 140°F
- Conformal coated circuit boards for humid environment durability
- Dual input / dual output AC interface for 3000 W power capacity
- Ability to charge batteries drained to extremely low voltage levels
- Compatible with the Xantrex Automatic Generator Start system
- Protection features including over-voltage, under-voltage, over-temperature, overload, and short-circuit protection with resettable breakers
