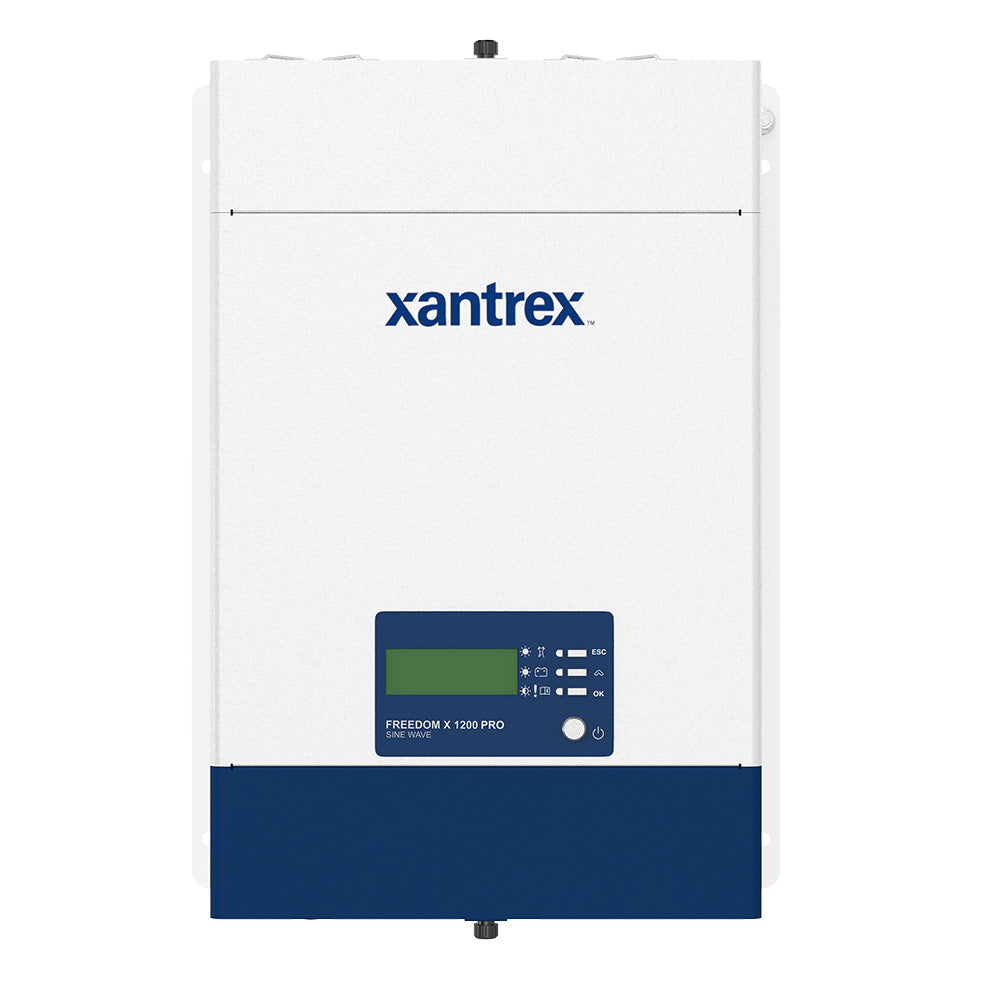

Xantrex FREEDOM X 1200 PRO Inverter - True Sine Wave 1200W, 120V AC / 12V DC, Heavy-Duty Truck and RV Power Solution

FREEDOM X 1200 PRO Inverter Truesine 1000W 120AC/12VDC Hardwire Transfer

Engineered specifically to meet the needs of heavy-duty trucks, the FREEDOM X 1200 offers a perfect blend of performance and cost. The FREEDOM X 1200 is ideal for installation in all types of commercial vehicles.

Robust. Durable. Flexible.

Its rugged, industrial design ensures optimum performance in all conditions. Quick-connect terminals at AC input output and pre-wired pigtail cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy-duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, a built-in transfer switch, and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has a built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.

Certifications:

• H.A.L.T
• ETL listed to CSA Standard C22.2 No. 107.1
• FCC Part 15, Class B
• UL458* for marine supplement compliance drip shield in specific mounting orientations when required

Applications:

• Recreational vehicles
• Heavy-duty truck
• Work truck

Specifications:

• Power Output Continuous: 1200W

The Xantrex FREEDOM X 1200 PRO inverter is engineered to deliver reliable, high-quality power for heavy-duty trucks, recreational vehicles, and commercial work trucks. Designed with durability and performance in mind, this inverter features a true sine wave output that ensures smooth operation of sensitive electronics and appliances. Its rugged metal casing and conformally coated circuit boards make it suitable for demanding mobile environments, providing long-lasting service even in extreme conditions. The quick-connect terminals at both AC input and output, along with pre-wired pigtail cables, facilitate fast and straightforward installation, making it ideal for commercial vehicle assembly lines or retrofit applications. With a built-in transfer switch and low battery voltage shutdown, the FREEDOM X 1200 PRO enhances safety and reliability, preventing electrical issues during operation.

Features:

• Power Output Continuous: 1200W for reliable high-demand applications

• True sine wave output ensures compatibility with sensitive electronics

• Heavy-duty metal casing provides durability in mobile environments

• Conformal-coated circuit boards resist moisture and vibration

• Quick-connect terminals and pre-wired cables enable fast installation

• Built-in transfer switch facilitates seamless power transfer

• Low battery voltage shutdown protects electrical systems

• Communication card for integration with third-party monitoring and control panels via RV-C

• Certified by H.A.L.T, ETL (CSA Standard C22.2 No. 107.1), FCC Part 15, Class B, and UL458 for marine compliance when mounted accordingly
