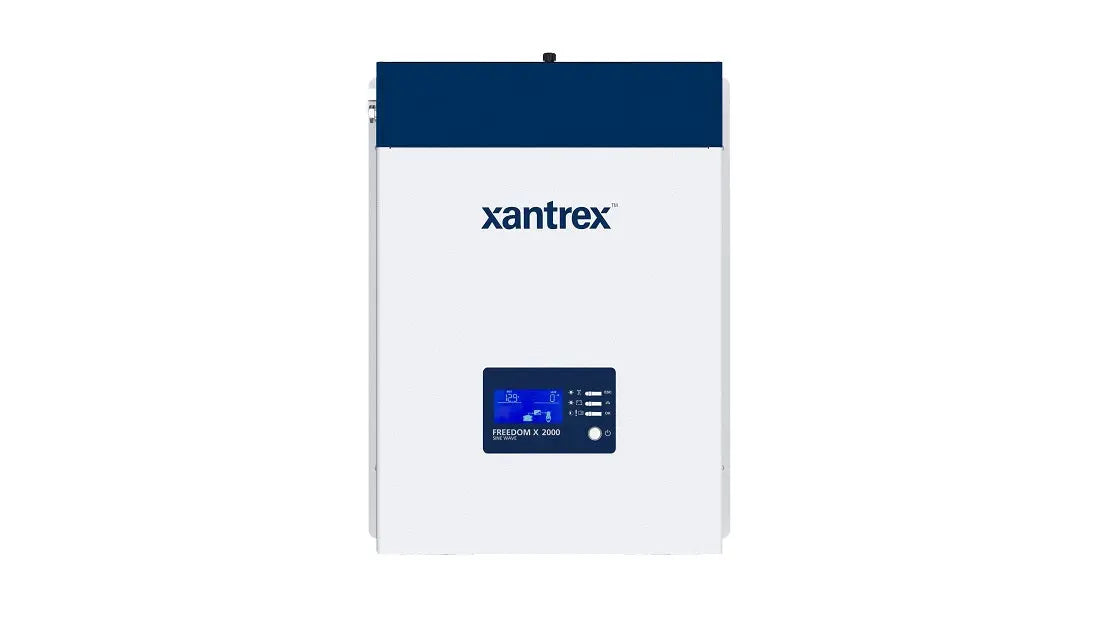

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter

Comprehensive Overview of the Xantrex Freedom X2000-12 Inverter

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter

Xantrex Freedom X 2000 230v 2000W Inverter

Model: 817-2000-12

• Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20 degC - 40 degC for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications

AC Output Operating Voltage Options 220/230/240V

Continuous Output Power
Continuous Power 2000 W @40oC True sine wave (TSW)

Continuous AC Output Current
8.3 A

Surge Power
4000 W (> 2 sec)

Frequency (Configurable)
50 Hz (or 60 Hz)

DC Input Operating voltage range
10.0 - 17.0 V

DC Input Max Non-Operating Voltage
25.2 V

DC Input Nominal Voltage (inverting)
12.0 V

DC Nominal Current at Full Load
192 A

Peak Efficiency
91%

Full Load Efficiency
> 87.5%

GENERAL SPECS

Operating Temperature Range
-20 to 60 oC, with output derated above 40 degC

Storage Temperature Range
-40 to 70 oC

Operating Humidity Range
5 to 95% RH, non-condensing

Operating Input AC Pass-Through Voltage Range
170-280V

Safe Non-Operating Input AC Voltage Range
Up to 300V

Transfer Relay AC Current Rating
30 A , 24 A continous

L x W x H (without flanges)
370 mm x 275 mm x 100 mm

L x W x H (with flanges)
370 mm x 305 mm x 100 mm

Net Weight
7.2 kgs

REGULATORY APPROVALS

Safety
CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050)

EMC
CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant

Environmental
CE Marking, RoHS Directive Compliant

What's in the Box:

• Freedom X 2000 230v
• Documentation
• one set of plastic bushings for large DC cables
• one pre-installed DC earth enclosure lug (not shown)
• one bonding screw

Powerful and Efficient Performance

The Xantrex Freedom X2000-12 offers a 2000W continuous output with a peak surge capacity capable of handling challenging electrical loads. This 230V inverter delivers clean, stable power using advanced true sine wave technology, ensuring compatibility with sensitive electronics such as laptops, medical devices, and audio equipment. Designed to provide reliable off-grid power conversion, it combines efficiency with durability, making it ideal for RVs, boats, and emergency backup systems.

Easy Installation and User-Friendly Controls

This model features a compact, lightweight design with simple connection terminals and clear wiring instructions, allowing for quick installation even by non-experts. The built-in LCD display provides real-time system information like output voltage, battery status, and fault alerts, improving ease of use and ongoing monitoring. Additionally, integrated protective features like overload, over-temperature, and low voltage shutdown enhance device safety and longevity.

Durability and Versatile Applications

Engineered for tough conditions, the Xantrex Freedom X2000-12 is housed in a robust enclosure that dissipates heat effectively, permitting extended runtime without overheating. It supports various off-grid applications including solar systems and mobile power needs. Whether for outdoor adventures or critical backup power at home, this inverter ensures a consistent 230V AC supply while protecting connected devices with clean, high-quality sine wave output.
