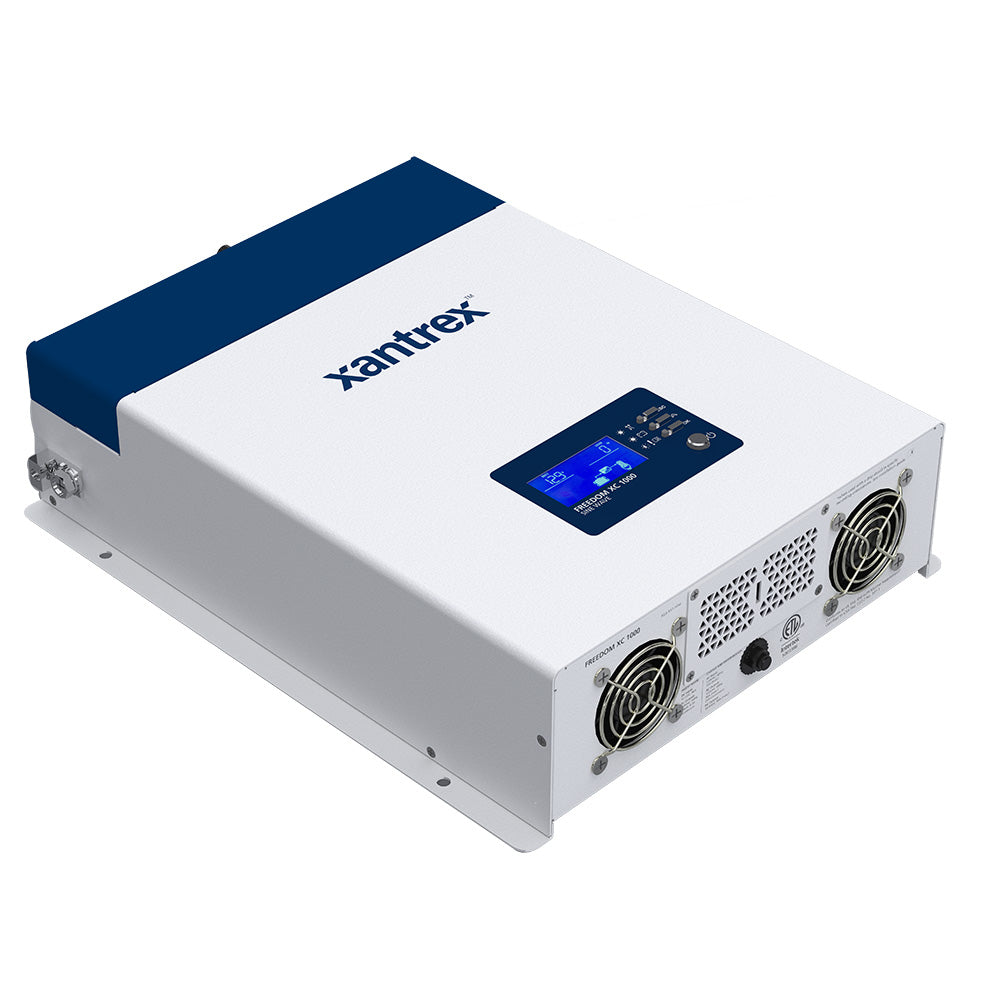

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12V DC to 120V AC, 1000W with Built-In Transfer Switch

Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A

True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4F - 104F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Inverter Features:

• Extended Surge Rating:nbsp;Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power:nbsp;For operation of sensitive and motor loads
• Ignition Control:nbsp;Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range:nbsp;Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown:nbsp;Feature ideal to operate under weak shore power or generator input
• Built-in 30A AC Transfer Relay:nbsp;Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging:nbsp;Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable:nbsp;Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization:nbsp;Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

The Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger provides reliable power conversion for both recreational and commercial applications. Designed for durability and efficiency, it delivers a pure sine wave output at 120V AC, ensuring smooth operation of sensitive electronics and motor loads. Its lightweight and compact form factor make installation straightforward, whether in mobile, RV, or off-grid setups. The inverter features an extended surge capacity, capable of handling motor startup loads such as refrigerators and microwaves, making it suitable for demanding power needs. With quick connect terminals for AC input and output, setup is quick and hassle-free, saving valuable installation time.

The built-in charger incorporates power factor corrected multi-stage charging, which optimizes battery health and minimizes shore power consumption. Its programmable three-stage, temperature-compensated charging algorithm supports batteries up to 18V, maximizing lifespan through effective maintenance routines. Additional features include battery equalization to extend flooded battery life and dead battery charging down to 0V, ensuring readiness when needed. The inverter's power sharing capability intelligently manages AC loads, reducing charge current to prevent breaker trips and maintaining consistent power delivery. The integrated 30A AC transfer relay automatically switches between inverter and external power sources, providing seamless transitions during power outages or generator operation. The wide input voltage range accommodates high-voltage alternators common in many vehicles, ensuring compatibility across diverse power sources.

Designed to operate across a broad temperature spectrum from -4°F to 104°F, the Freedom XC 1000 maintains full output capacity in various environmental conditions. Its ignition control feature allows remote activation and deactivation via a 12VDC signal, helping to conserve battery life when the vehicle or system is not in use. The inverter/charger's robust performance, combined with advanced features like programmable shutdowns and power sharing, makes it a versatile solution for mobile and off-grid power systems. For detailed installation instructions and maintenance guidelines, refer to the owner’s manual available online. Please note, this product contains chemicals known to California to cause cancer and reproductive harm, as detailed in the P65 warning.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds, suitable for motor loads

• True Sine Wave AC Power: Ensures safe operation of sensitive and motor loads

• Ignition Control: Enables remote on/off control via 12VDC signal, reducing battery drain

• Wide 10-18 VDC Input Range: Compatible with high-voltage alternators found in many vehicles

• Programmable AC Under-Voltage Shutdown: Protects against weak shore power or generator input

• Built-in 30A AC Transfer Relay: Seamlessly switches between inverter and external power sources

• Power Factor Corrected Multi-Stage Charging: Optimizes battery charging and reduces shorepower use

• Configurable 3-Stage Battery Charging: Supports batteries up to 18V with temperature compensation

• Battery Equalization: Extends flooded battery lifespan through maintenance routines

• Dead Battery Charging: Capable of charging batteries down to 0V for maximum readiness

• Power Share: Manages AC loads by adjusting charge current to prevent breaker trips
