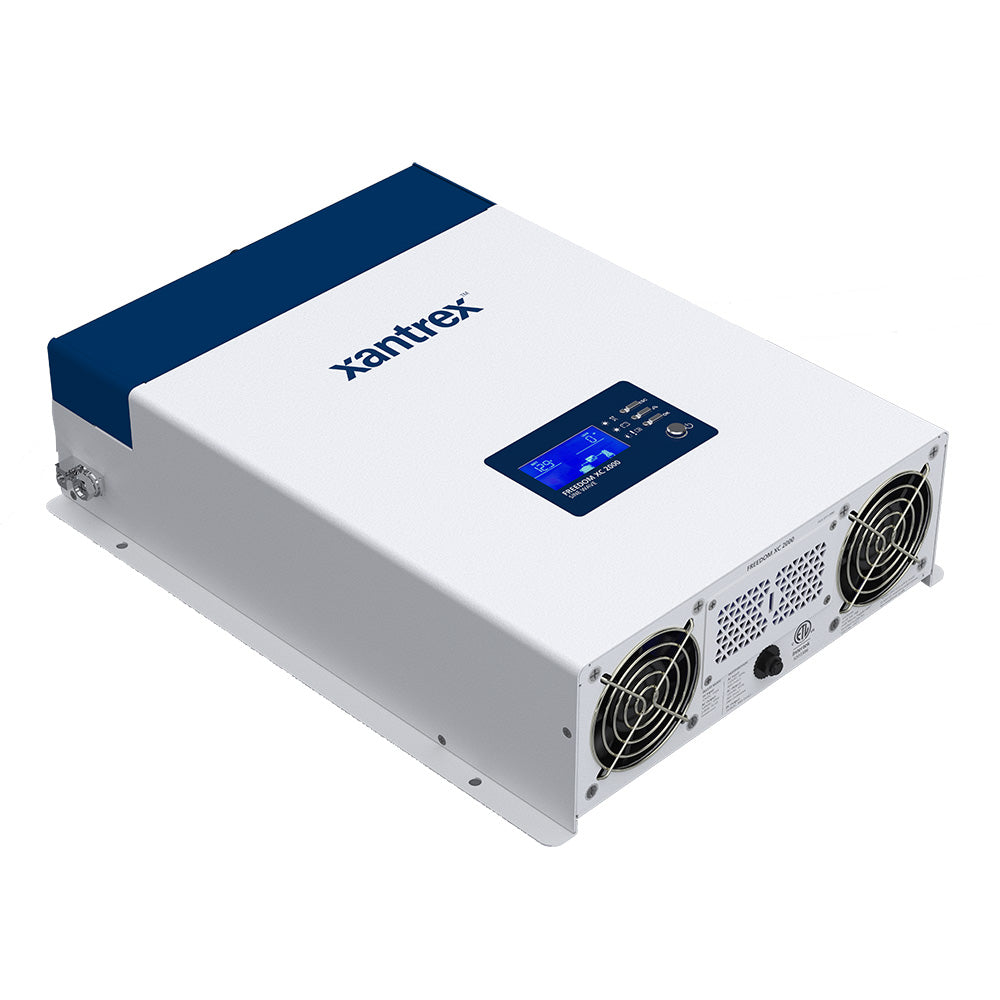

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC to 120VAC, 2000W, Model 817-2080

Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4F - 104F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Inverter Features:

• Extended Surge Rating:nbsp;Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power:nbsp;For operation of sensitive and motor loads
• Ignition Control:nbsp;Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range:nbsp;Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown:nbsp;Feature ideal to operate under weak shore power or generator input
• Built-in 30A AC Transfer Relay:nbsp;Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging:nbsp;Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable:nbsp;Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization:nbsp;Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

The Xantrex Freedom XC 2000 is a versatile and reliable true sine wave inverter/charger designed for both recreational and commercial applications. It provides clean, stable power suitable for sensitive electronic devices and motor loads, making it ideal for use in RVs, boats, and off-grid setups. This unit combines a powerful 2000-watt inverter with an efficient multi-stage charger in a compact, lightweight package, simplifying installation and operation. Its ability to operate across a wide temperature range from -4°F to 104°F ensures dependable performance in various climates. The extended surge capability, doubling the continuous power for up to 2 seconds, allows it to handle demanding starting loads such as refrigerators and microwaves. Quick connect terminals at AC input and output facilitate quick and straightforward installation, saving time and effort. The built-in 30A AC transfer relay automatically switches between inverter and external power sources like shore power or generators, ensuring seamless power management. The inverter features ignition control, enabling remote on/off operation via a 12 VDC signal and reducing battery drain when the vehicle is turned off. It also supports high voltage input from vehicle alternators, making it compatible with modern vehicles. The programmable AC under-voltage shutdown enhances reliability when operating on weak power sources, preventing overloads and potential damage. The integrated charger includes power factor corrected multi-stage charging, which optimizes battery health and reduces shorepower consumption. It supports up to 18V batteries, with configurable three-stage temperature compensation for precise charging, and offers battery equalization to extend flooded battery life. The dead battery charging feature allows recovery of batteries down to 0 VDC, providing added flexibility. Power sharing functionality prioritizes AC loads by adjusting charge current to maintain overall system stability. This product is compliant with safety standards, but users should be aware of California Proposition 65 warnings related to certain chemicals. For detailed installation and operation instructions, consult the provided manual. The Xantrex Freedom XC 2000 is an essential component for reliable power management in mobile and off-grid applications, ensuring continuous operation of your electrical devices with clean, stable power.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads

• True Sine Wave AC Power: Suitable for sensitive and motor loads

• Ignition Control: Remote on/off via 12 VDC signal to reduce battery drain

• Wide 10-18 VDC Input Range: Compatible with high voltage vehicle alternators

• Programmable AC Under-Voltage Shutdown: Protects system during weak power conditions

• Built-in 30A AC Transfer Relay: Seamless switching between inverter and external AC sources

• Power Factor Corrected Multi-Stage Charging: Efficient battery charging, reduces shorepower usage

• Configurable 3-Stage Battery Charging: Temperature compensated for optimal battery health

• Battery Equalization: Extends flooded battery life

• Dead Battery Charging: Recharges batteries down to 0 VDC

• Power Share: Prioritizes AC loads and manages input current effectively
