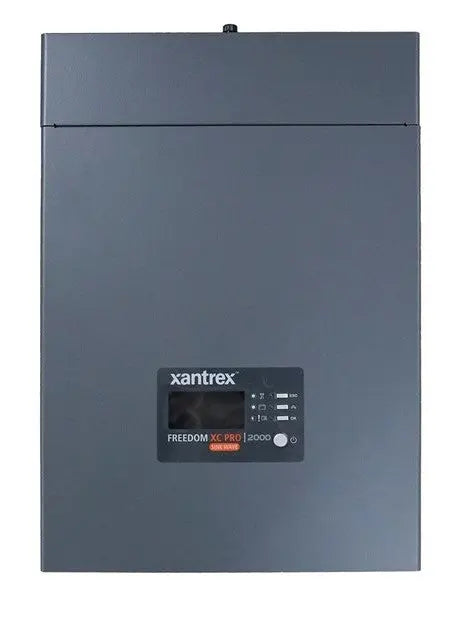

Xantrex Freedom XC PRO 2000 2000W Inverter Charger 12vDC in 120vAC Out

Xantrex Freedom XC Pro 2000 Watt Inverter, 100A Charger

Model: 818-2010

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Easily configurable settings to charge any lithium ion battery
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degF (-20 degC) - 104 degF (40 degC) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

AC Output Operating Voltage Options120, 110, 108 Vac

Continuous Output Power
Continuous Power 2000 W @40oC True sine wave (TSW)

Continuous AC Output Current
16.7A

Surge Power
4000 W ( 5 sec)

Frequency (Configurable)
60 (or 50) Hz

Peak Efficiency
91%

Full Load Efficiency
86%

Operating Input AC Pass-Through Voltage Range
85-140 Vac

Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS

Power Factor at Full Charge Rate
> 98%

Battery Charger Specifications

Min Battery Voltage for Charging
0.0 Vdc

Max DC Output Voltage
18.0 Vdc (custom battery type)

Selectable DC Output Current
User Selectable: 5 - 100 A

Full Load Max AC Input Current
24 Arms

Max DC Charge Current
10A

General Specifications

Operating Temperature Range
4 to 140 oF (-20 to 60 oC), with output derated above 104 oF (40 degC)

Storage Temperature Range
-40 to 158 oF (-40 to 70 oC)

Operating Humidity Range
5 to 95% RH, non-condensing

Transfer Relay AC Current Rating
30 A surge, 24 A continous

DC Input Operating voltage range
10.1 - 18.0 VDC

DC Input Max Non-Operating Voltage
25.2 Vdc

DC Input/Output Nominal Voltage (inverting/ Charging)
12.0 Vdc

DC Nominal Current at Full Load
192Adc

L x W x H (without flanges)
5.4 in(390 mm) x 10.8 in(275 mm) x 4.9 in(125 mm)

L x W x H (with flanges)
16.0 in(406 mm) x 12.0 in(305 mm) x 4.9 in(125 mm)

What's in the Box:

• Freedom XC Pro 2000
• Owners Manual
• Pre-installed DC ground enclosure lug
• Plastic bushings for large DC cables
• 2 AC knockout hole plugs

Reliable Power Conversion with Xantrex Technology

The Xantrex Freedom XC PRO 2000 inverter charger offers a powerful 2000-watt continuous output, converting 12vDC battery power into clean 120vAC electricity. Designed for both residential and mobile applications, this inverter ensures reliable energy conversion with minimal distortion, making it ideal for sensitive devices. Its advanced design supports a wide array of electronic equipment, providing stable and continuous power for demanding loads while enhancing operational safety and efficiency.

Integrated Charger for Battery Maintenance

Equipped with a state-of-the-art battery charger, the Xantrex Freedom XC PRO 2000 efficiently manages 12-volt battery charging needs. It features multi-stage charging technology, which optimizes battery life and performance by preventing overcharging and undercharging. This integrated charger provides flexible installation options and automatic temperature compensation, ensuring batteries remain healthy and fully charged regardless of environmental conditions or usage patterns.

User-Friendly Interface and Advanced Protection

The Freedom XC PRO 2000 from Xantrex includes a simple and intuitive user interface that allows easy configuration and monitoring. It incorporates essential safety features such as overload protection, short circuit shutoff, and thermal monitoring, ensuring safe and reliable operation. Additionally, a remote control panel option enhances user convenience, allowing users to monitor system status and adjust settings from a distance, making it a versatile solution for various power management needs.
