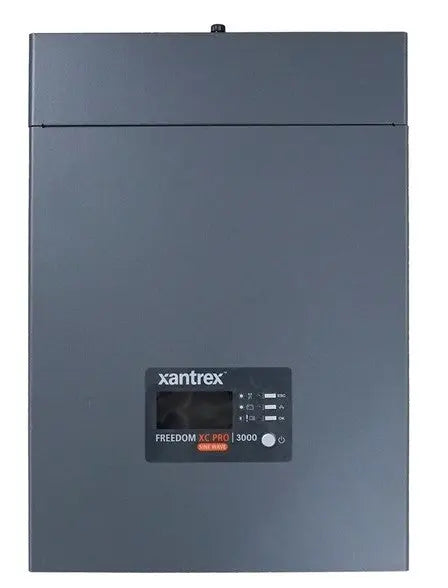

Xantrex Freedom XC PRO 3000 3000W Inverter 150A Charger 12vDC in 120vAC Out

Xantrex Freedom XC PRO 3000: Powerful Inverter and Charger Solution

Xantrex Freedom XC PRO 3000 3000W Inverter 150A Charger 12vDC in 120vAC Out

Xantrex Freedom XC Pro 3000 Watt Inverter, 150A Charger with 50A Transfer Switch

Model: 818-3010

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium ion battery

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 150 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degF (-20 degC) - 104 degF (40 degC) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

AC Output Operating Voltage Options120, 110, 108 Vac

Continuous Output Power
Continuous Power 3000 W @40oC True sine wave (TSW)

Continuous AC Output Current
25A

Surge Power
6000 W ( 5 sec)

Frequency (Configurable)
60 (or 50) Hz

Peak Efficiency
91%

Full Load Efficiency
greater than or equal to 84%

Operating Input AC Pass-Through Voltage Range
85-140 Vac

Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS

Power Factor at Full Charge Rate
> 98%

Battery Charger Specifications

Min Battery Voltage for Charging
0.0 Vdc

Max DC Output Voltage
18.0 Vdc (custom battery type)

Selectable DC Output Current
User Selectable: 5 - 150 A

Full Load Max AC Input Current
25 Arms

Max DC Charge Current
150A

General Specifications

Operating Temperature Range
4 to 140 oF (-20 to 60 oC), with output derated above 104 oF (40 degC)

Storage Temperature Range
-40 to 158 oF (-40 to 70 oC)

Operating Humidity Range
5 to 95% RH, non-condensing

Transfer Relay AC Current Rating
50 A surge, 40 A continous

DC Input Operating voltage range
10.1 - 18.0 VDC

DC Input Max Non-Operating Voltage
25 Vdc

DC Input/Output Nominal Voltage (inverting/ Charging)
12.0 Vdc

DC Nominal Current at Full Load
304Adc

L x W x H (without flanges)
5.4 in(390 mm) x 10.8 in(275 mm) x 4.9 in(125 mm)

L x W x H (with flanges)
16.0 in(406 mm) x 12.0 in(305 mm) x 4.9 in(125 mm)

What's in the Box:

• Freedom XC Pro 3000
• Owners Manual
• Pre-installed DC ground enclosure lug
• Plastic bushings for large DC cables
• 2 AC knockout hole plugs

Robust 3000W Power Output for Versatile Energy Needs

The Xantrex Freedom XC PRO 3000 inverter provides a powerful 3000-watt continuous power output, ensuring it meets a broad range of energy demands. Designed for use in off-grid, mobile, and backup power systems, this inverter delivers clean and stable 120v AC power from a 12v DC battery source. Its robust design supports sensitive electronics and heavy-duty appliances alike, making it a versatile choice for RVs, boats, and remote locations. The unit’s reliable performance guarantees users access to consistent electricity wherever they need it most.

Integrated 150A Battery Charger for Efficient Charging

This Xantrex model features an integrated 150-ampere multi-stage battery charger that helps maintain and extend battery life. The advanced charging technology automatically adjusts to different battery types, optimizing the charging process while preventing overcharging. This charger is ideal for keeping your batteries fully charged and healthy, reducing downtime and improving overall system reliability. It simplifies your power setup by combining both inverter and charger functions in a single compact unit, improving convenience and installation efficiency.

Advanced Features and User-Friendly Design

The Freedom XC PRO 3000 includes built-in safety protections such as overload, over-temperature, and short-circuit safeguards for reliable operation. It also supports remote monitoring and control, allowing users to easily manage power settings and monitor system status. The compact and rugged design ensures durability in challenging environments, making it suitable for both mobile and stationary applications. With the Xantrex brand’s reputation for quality and innovation, this inverter charger provides dependable power conversion with user-friendly features tailored to demanding energy needs.
