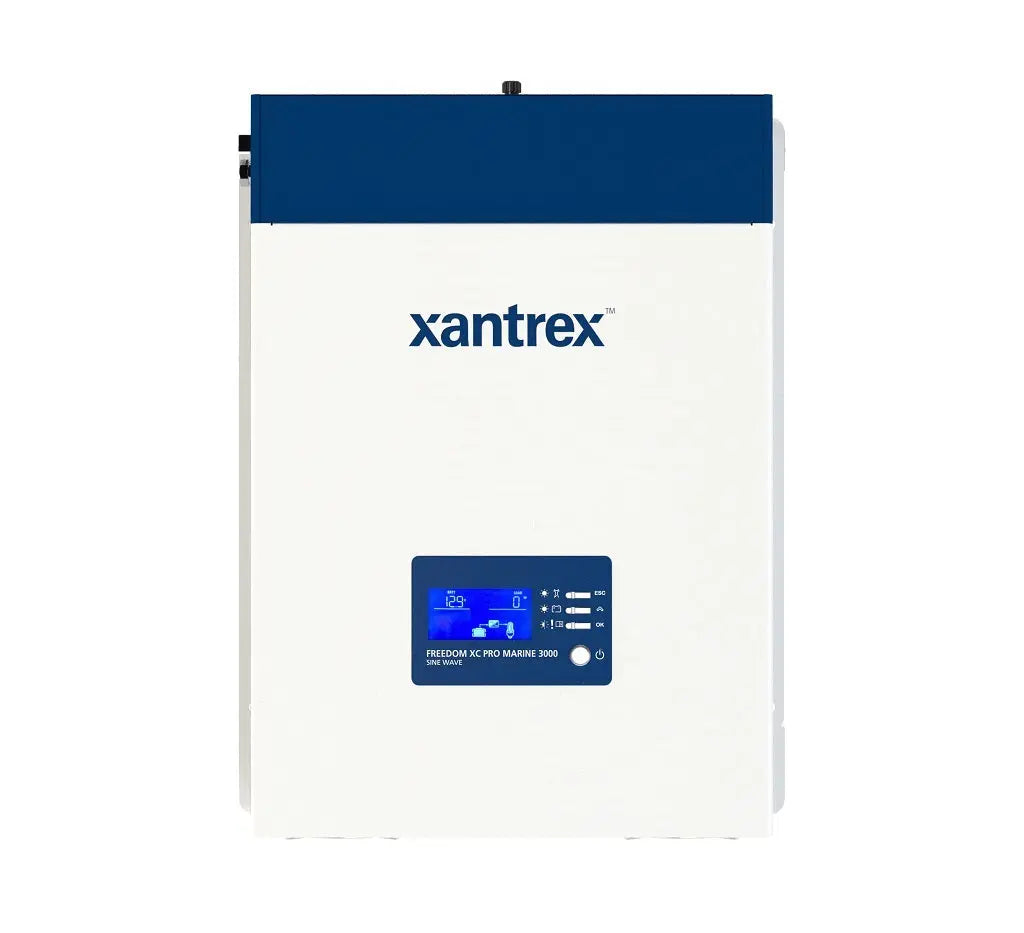

Xantrex Freedom XC PRO 3000 3000W Marine Inverter Charger 12vDC in 120vAC Out

Xantrex Freedom XC PRO Marine 3000

Model: 818-3015

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium ion battery

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR

The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degF (-20 degC) - 104 degF (40 degC) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

AC Output Operating Voltage Options120, 110, 108 Vac

Continuous Output Power
Continuous Power 3000 W @40oC True sine wave
(TSW)

Continuous AC Output Current
25 A

Surge Power
6000 W ( 5 sec)

Frequency (Configurable)
60 (or 50) Hz

Peak Efficiency
91%

Full Load Efficiency
gretaer than or equal to 84%

DC Input Operating voltage range
10.1 - 18.0 VDC

DC Input Max Non-Operating Voltage
25.2 Vdc

DC Nominal Current at Full Load
304 Adc

ELECTRICAL SPECS - BATTERY CHARGER

Min Battery Voltage for Charging
0.0 Vdc

Max DC Output Voltage
18.0 Vdc (custom battery type)

Selectable DC Output Current
User Selectable: 5 - 150 A

Full Load Max AC Input Current
25 Arms

Max DC Charge Current (selectable down to 5A)
150A

Operating Input AC Pass-Through Voltage Range
85-140 Vac

Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS

Power Factor at Full Charge Rate
> 98%

GENERAL SPECS

Operating Temperature Range
4 to 140 oF (-20 to 60 oC), with output derated
above 104 oF (40 degC)

Storage Temperature Range
-40 to 158 oF (-40 to 70 oC)

Operating Humidity Range
5 to 95% RH, non-condensing

Transfer Relay AC Current Rating
50 A surge, 40 A continous

DC Input/Output Nominal Voltage (inverting/
Charging)
12.0 Vdc

L x W x H (without flanges)
15.4 in(390 mm) x 10.8 in(275 mm) x 4.9 in(125 mm)

L x W x H (with flanges)
16.0 in(406 mm) x 12.0 in(305 mm) x 4.9 in(125 mm)

What's in the Box:

• Freedom XC PRO 2000
• one set of plastic bushings for large DC cables
• one pre-installed DC ground enclosure lug
• two AC knockout hole plugs

Powerful and Reliable Marine Inverter Charger

The Xantrex Freedom XC PRO 3000 is a robust marine inverter charger designed to convert 12-volt DC power into clean 120-volt AC power with a continuous output of 3000 watts. This model ensures reliable electricity for onboard appliances, making it ideal for boats and marine applications where dependable power conversion and supply are critical. Its advanced design supports smooth transition and protection features, giving users peace of mind when powering sensitive devices out at sea or on the water.

Advanced Battery Charging Capabilities

Equipped with a smart multi-stage battery charger, the Xantrex Freedom XC PRO 3000 optimizes battery health by providing efficient charging profiles tailored to battery types. Its intelligent charging system reduces overcharging risks while ensuring batteries are charged quickly and safely. This feature extends battery life and enhances overall system performance, making it a preferred choice for marine professionals seeking reliable, long-lasting energy management.

User-Friendly Interface and Safety Protections

Designed for straightforward operation, the Xantrex Freedom XC PRO 3000 features an easy-to-read LCD display and intuitive controls enabling users to monitor system status effortlessly. Built-in safety protections guard against overvoltage, undervoltage, over-temperature, and short circuits. These safeguards contribute to safe usage, protecting both the inverter charger and connected electronics, which is essential in demanding marine environments where safety and reliability are paramount.
