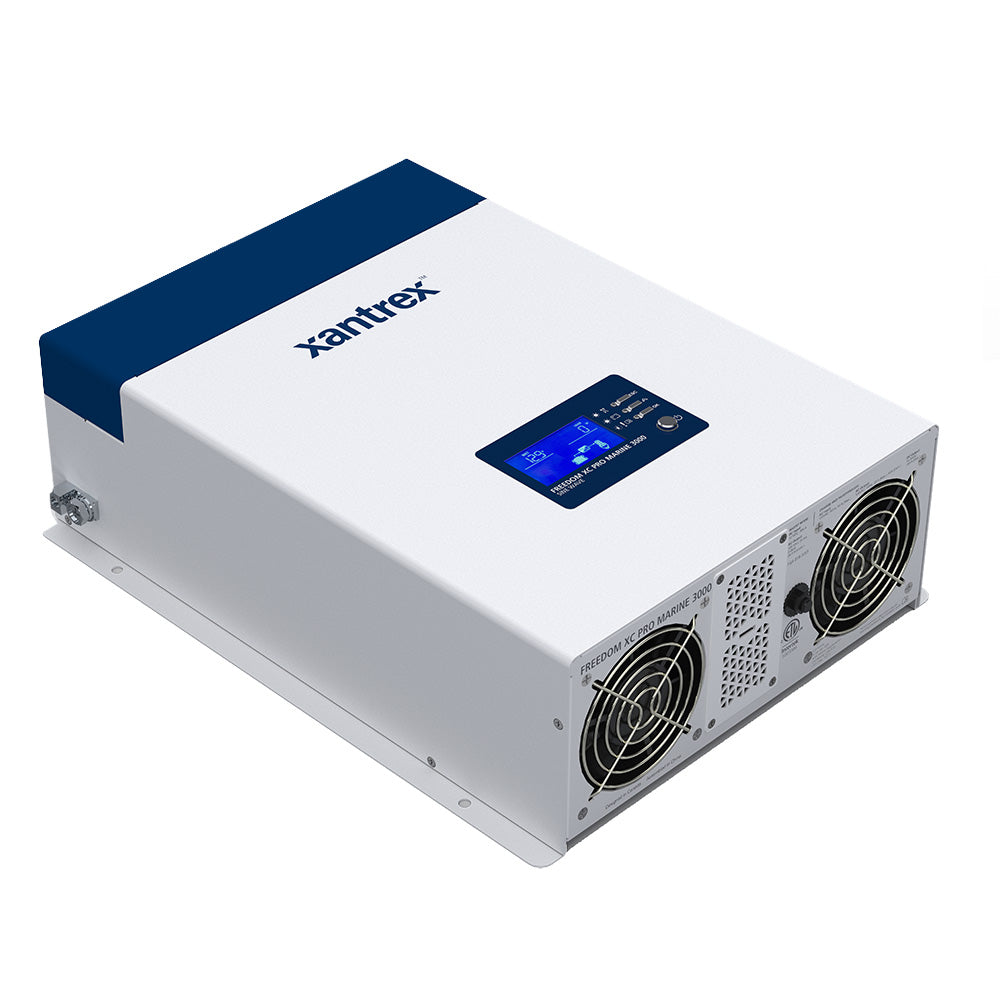

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W, 150A, 120V, 12V

Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02).

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) - 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power:For operation of sensitive and motor loads
• Ignition Control:Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range:Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown:Feature ideal to operate under weak shore power or generator input
• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable:Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization:Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share:Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium ion battery

The Xantrex Freedom XC Pro 3000 Inverter/Charger is a versatile power solution designed for demanding applications such as RVs, boats, and off-grid systems. This unit features a true sine wave inverter that provides clean, reliable power suitable for sensitive electronics and motor loads. Its integrated lithium-ion battery charger and transfer switch allow seamless switching between inverter and AC power sources, ensuring continuous operation. Bluetooth compatibility with the optional remote panel enables easy system monitoring and configuration from a mobile device, offering enhanced control and convenience. Supporting RV-C and J1939 protocols, it is compatible with a wide range of vehicle and system configurations, making it a flexible choice for complex power management needs. The unit supports a 150 amp (3000W) battery charger and maintains operation across a broad temperature range, from -4°F to 104°F. Its extended surge capacity ensures reliable startup of inductive loads such as air conditioners or refrigerators, providing peace of mind during demanding start-up conditions. The design incorporates a built-in 50A AC transfer relay, which automatically switches loads from inverter to external AC power when available, facilitating seamless power transfer and reducing downtime. Additionally, the inverter features ignition control to turn the unit on or off via a 12 VDC signal, helping conserve battery life when not in use. The wide input voltage range of 10-18 VDC ensures compatibility with high-voltage alternators commonly found on vehicle chassis, broadening its application scope. Programmable features include AC under-voltage shutdown and configurable charging algorithms for various battery types, including lithium-ion batteries, optimizing battery health and lifespan. The built-in multi-stage, power factor corrected charger reduces shore power consumption and minimizes the risk of tripping breakers, making it an efficient charging solution. Battery maintenance features such as equalization and dead battery charging down to zero volts help maximize battery life and readiness. Overall, the Xantrex Freedom XC Pro 3000 inverter/charger combines power, flexibility, and advanced features in a compact, lightweight package suitable for a wide array of mobile and stationary power needs.

Features:

• Extended surge rating: Surges to 2X continuous power for 5 seconds for motor loads

• True sine wave AC power: For operation of sensitive and motor loads

• Ignition control: Turns inverter on/off via a 12 VDC signal to reduce battery drain

• Wide 10-18 VDC input range: Compatible with high-voltage alternators on vehicle chassis

• Programmable AC under-voltage shutdown: Operates under weak shore power or generator input

• Built-in 50A AC transfer relay: Senses external AC power and transfers load automatically

• Power factor corrected multi-stage charging: Efficient charging that reduces shorepower consumption

• Configurable 3-stage temperature compensated battery charge: Suitable for various battery types

• Battery equalization: Extends flooded battery lifespan

• Dead battery charging: Capable of charging batteries down to 0 Vdc

• Power sharing: Prioritizes AC loads by controlling charge current to prevent breaker trips

• Supports lithium-ion battery charging: Easily configurable for different battery chemistries
