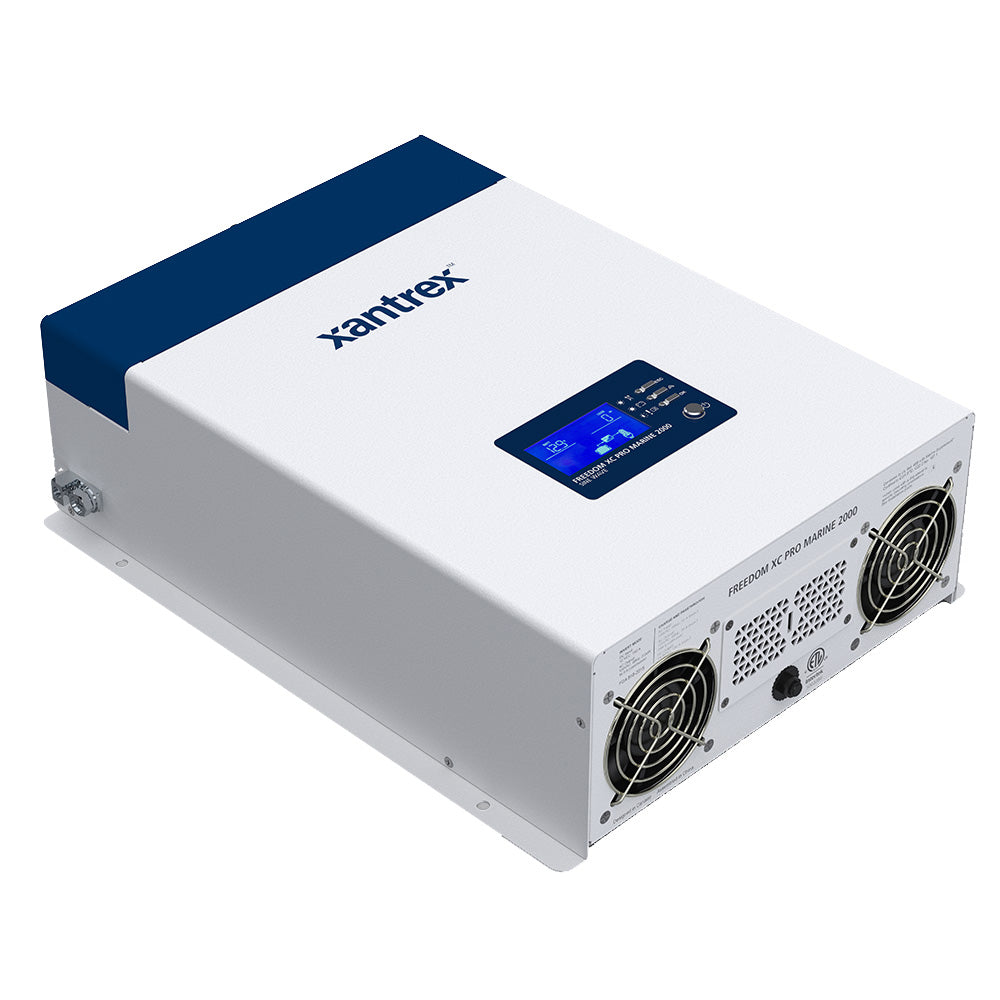

Xantrex Freedom XC PRO Marine 2000W Inverter/Charger - 12V

Freedom XC PRO Marine 2000W Inverter/Charger - 12V

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.

The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4F (-20C) - 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power:For the operation of sensitive and motor loads
• Ignition Control:Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range:Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown:Feature ideal to operate under weak shore power or generator input
• Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable:Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization:Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share:Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium-ion battery

The Xantrex Freedom XC PRO Marine 2000W inverter/charger combines advanced power conversion with versatile functionality, making it an ideal choice for marine and RV applications. This true sine wave inverter delivers clean, reliable AC power suitable for sensitive electronics and motor loads, ensuring optimal performance across a wide range of devices. Its compact and lightweight design allows for easy installation in tight spaces without sacrificing power or features.

Equipped with a built-in lithium-ion battery charger and a transfer switch, the Freedom XC PRO supports seamless switching between inverter power and external AC sources. It offers a 100 amp (2000W model) / 150 amp (3000W model) multi-stage charger with power factor correction, which reduces shorepower consumption and maximizes battery life. The system is configurable via Bluetooth using an optional remote panel, providing convenient monitoring and control from a smartphone or tablet. Its compatibility with Micro-C NMEA 2000 protocol facilitates integration with third-party monitoring systems, enhancing overall system management.

Designed to operate in extreme temperatures from -4°F to 104°F, the inverter/charger supports extended surge ratings to handle compressor loads such as air conditioners and refrigerators reliably. Features like ignition control allow the inverter to turn on or off with the vehicle ignition, minimizing battery drain during vehicle shutdown. The wide DC input range ensures compatibility with high-voltage alternators, while programmable under-voltage shutdown protects batteries during weak power conditions. The built-in 50A AC transfer relay automatically switches between inverter power and external AC sources, maintaining continuous power delivery without interruption.

The built-in charger includes advanced features such as battery equalization, dead battery charging, and configurable settings for various battery chemistries, including lithium-ion. These features extend battery lifespan and ensure optimal charging performance under different conditions. Overall, the Xantrex Freedom XC PRO Marine inverter/charger offers a comprehensive, flexible power solution designed for demanding marine and mobile applications, providing reliable power management and ease of use in a compact package.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads

• True Sine Wave AC Power: Provides clean power for sensitive and motor loads

• Ignition Control: Turns inverter on/off via 12 VDC signal and minimizes battery drain

• Wide 10-18 VDC Input Range: Ensures operation on high-voltage alternators

• Programmable AC Under-Voltage Shutdown: Protects system during weak power sources

• Built-in 50A AC Transfer Relay: Senses external AC power and switches load seamlessly

• Power Factor Corrected Multi-Stage Charging: Reduces shorepower consumption and enhances efficiency

• Configurable Battery Charging: Supports various battery types, including lithium-ion

• Battery Equalization: Extends flooded battery life

• Dead Battery Charging: Capable of charging batteries down to 0 Vdc
