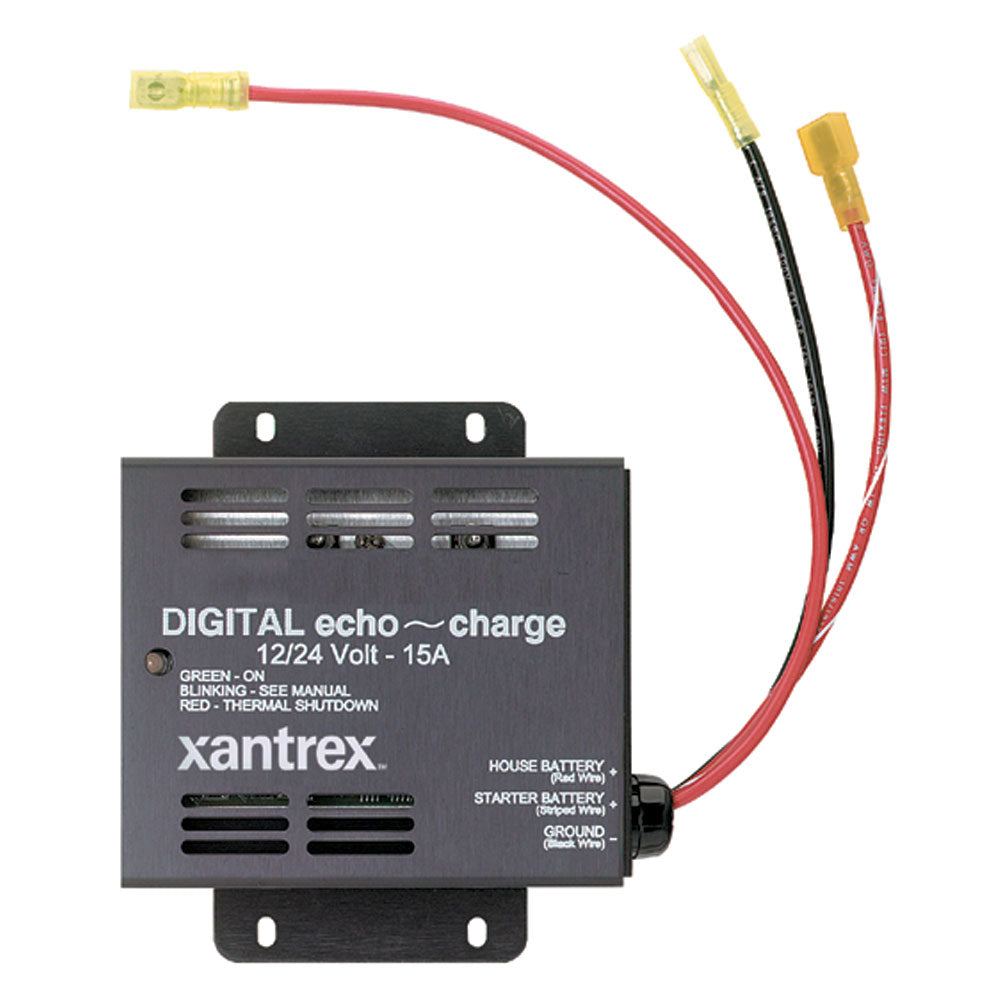

Xantrex Heart EchoCharge Dual Battery Charger Panel Part #82-0123-01

Convenient Dual Battery Bank Charging

Xantrex digital echocharge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.

Product Features

• 15 A maximum charge current

• Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)

• Automatically switches on/off without affecting the in-house battery bank or over-charging

• Utilizes excess current from the primary charging source

• Built-in thermal and over-current circuits

• Reverse polarity protection

• Easy three wire installation

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

The Xantrex Heart EchoCharge (Part #82-0123-01) is a versatile solution designed for efficient dual battery bank charging in various applications. This device allows you to charge auxiliary or starting batteries directly from your inverter/charger or other power sources with minimal voltage drop, ensuring reliable power management for your RV, boat, or off-grid setup. The EchoCharge detects when your main battery bank is being charged and automatically directs up to 15 amps of current to auxiliary or starting batteries, optimizing your energy use without overloading your primary system. Its intelligent design ensures seamless operation by automatically switching on and off without impacting your main battery bank or risking overcharging, providing peace of mind during extended trips or power demands.

Features:

• Maximum charge current of 15 amps for efficient power transfer

• Automatically adjusts for 12 or 24-volt battery banks, provided both banks share the same voltage and battery type

• Automatic switching on/off to prevent overcharging and protect your batteries

• Utilizes excess current from primary charging sources to optimize energy use

• Built-in thermal and over-current protection circuits for safety and durability

• Reverse polarity protection to prevent damage from incorrect wiring

• Simple three-wire installation process for quick setup and integration
