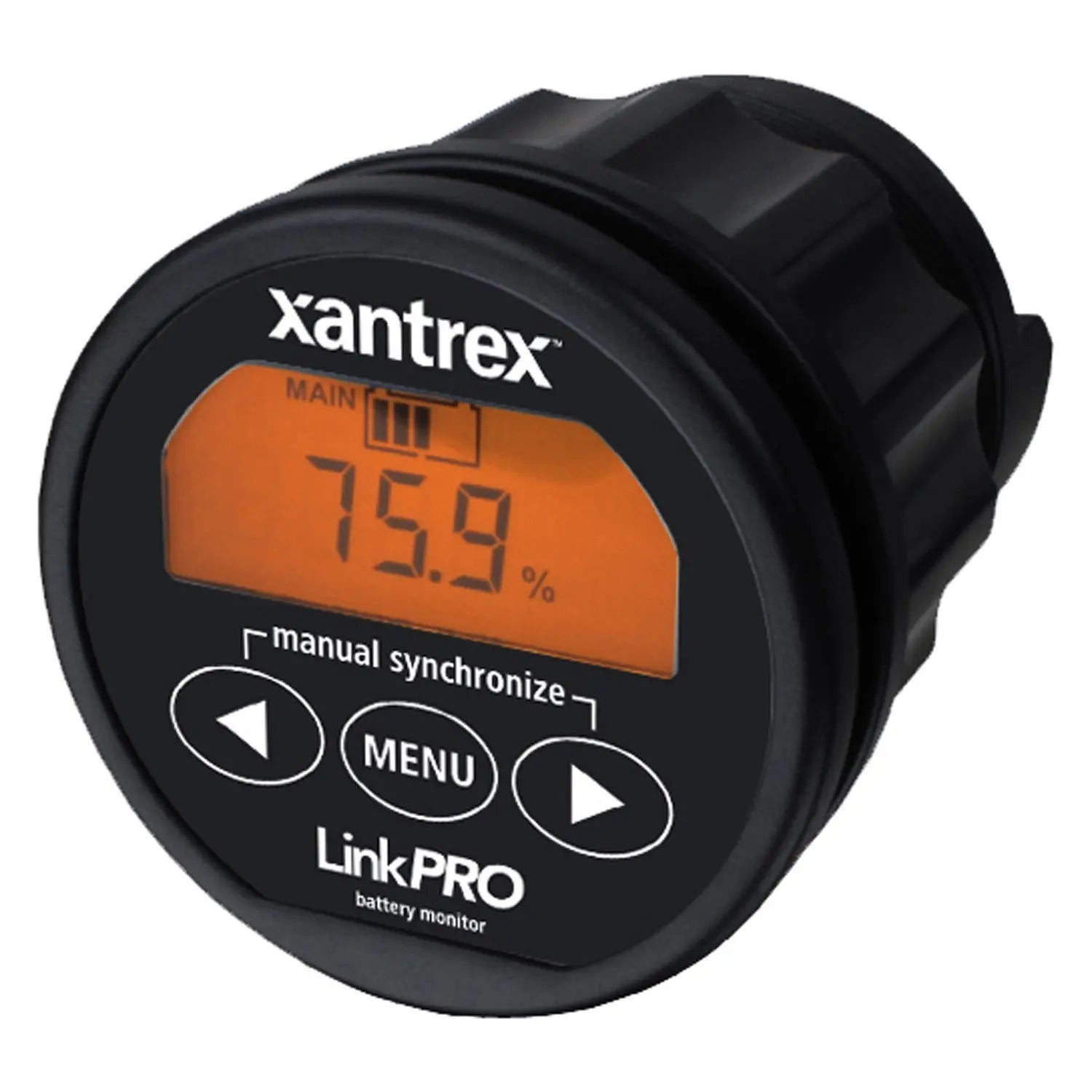

Xantrex LinkPRO 2 Bank Battery Monitor Part #84-2031-00 for Accurate Battery Monitoring

The Xantrex LinkPRO Battery Monitor model 84-2031-00 offers comprehensive monitoring for your battery banks, providing critical insights into voltage, current, consumed amp-hours, and remaining capacity. Designed with high-performance measuring circuits and advanced software algorithms, this device accurately determines available energy despite variables like battery age, discharge rate, and temperature. Its ability to measure currents up to 10,000 amps through a selectable shunt makes it suitable for large-scale applications. The clear backlit LCD display and intuitive interface allow quick access to essential parameters, including a secondary battery voltage input for multi-battery systems. The internal programmable alarm relay enables automated generator start-up or device shutdown when voltage thresholds are reached, enhancing system safety and efficiency.

Features:

• Measures currents up to 10,000 amps with selectable shunt

• Displays voltage, charge/discharge current, consumed amp-hours, and remaining capacity

• Includes a secondary battery voltage monitoring input

• Large backlit LCD for easy readout

• Quick nut mounting for simple installation

• Internal programmable alarm relay for automated control

• Splash-proof front panel for durability

• CE and e-mark certification ensure compliance

• Displays estimated time remaining in the battery bank

• Communication and expansion port for system integration

• Stores event history internally for diagnostics

• Battery temperature sensor input for accurate readings

• CE and e-mark certified for safety and reliability
