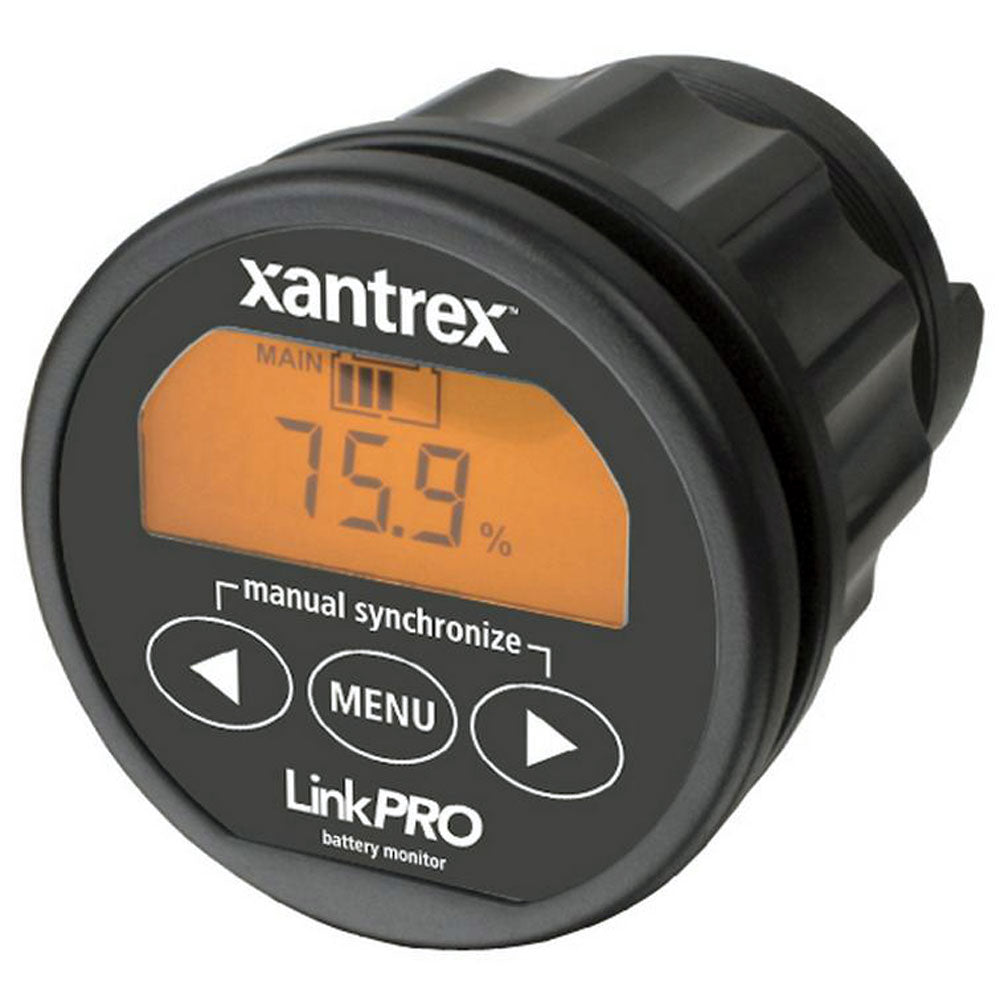

LinkPRO Battery MonitorBattery Status At A GlanceDefining the amount of energy available in a battery is a complex task since battery age, discharge current and temperature all influence the actual battery capacity. High performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A new shunt selection feature enables the LinkPRO to measure currents up to 10,000 Amps.
The LinkPRO selectively displays voltage, charge and discharge current, consumed amp hours, remaining battery capacity and the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor voltage on a second battery.
It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.
Performance Features
- Read your battery bank like a fuel gauge
- Provides critical information about the status of your battery bank
- Displays voltage, current, consumed amp hours and remaining battery capacity
- Two battery inputs
- Auto sensing battery voltage inputs
- Large backlit LCD Display
- Quick nut mounting construction
- Programmable alarm relay
- Shunt selection capability enables flexible system integration
- Splash proof front panel
- 500 Amp shunt included
- CE and e-mark certified
- Displays time remaining
- Communication/expansion port
- Stores a wide range of history events in internal memory
- Advanced programmable alarm relay
- Battery temperature sensor input
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
The Xantrex LinkPRO Battery Monitor provides comprehensive insight into your battery bank, making it an essential tool for off-grid, RV, marine, and renewable energy systems. Designed with advanced measuring circuits and sophisticated software algorithms, it accurately determines the remaining capacity of your batteries by considering factors such as age, discharge current, and temperature. The monitor features a new shunt selection capability that allows measurement of currents up to 10,000 amps, offering flexibility for a wide range of applications.
Equipped with a large backlit LCD display and an intuitive interface, the LinkPRO makes it easy to observe key parameters such as voltage, charge and discharge current, amp hours consumed, and the estimated time remaining on your battery bank. Its dual battery input allows monitoring of two separate batteries simultaneously, with auto-sensing voltage inputs simplifying installation. The device also includes an internal programmable alarm relay, enabling automation such as generator start-up or device shutdown based on user-defined voltage thresholds. Additional features include a communication port for expansion, internal memory for event logging, and a battery temperature sensor input to enhance monitoring accuracy.
Constructed with a splash-proof front panel and quick-mount hardware, the Xantrex LinkPRO is designed for durability and ease of installation. Its CE and e-mark certifications attest to its quality and safety standards. The included 500-amp shunt offers robust current measurement, while the programmable alarm relay provides customizable control options. Whether managing a single battery bank or multiple sources, this monitor delivers critical data to optimize your system’s performance and longevity. For detailed installation and operation instructions, refer to the owner’s manual available online.
Features:
- Provides real-time battery state of charge similar to a fuel gauge
- Displays voltage, charge/discharge current, amp hours consumed, and remaining capacity
- Supports monitoring of two batteries simultaneously with auto-sensing voltage inputs
- Large backlit LCD display for clear visibility in various lighting conditions
- Quick mounting hardware for easy installation
- Internal programmable alarm relay for automation control
- Shunt selection feature supporting currents up to 10,000 amps
- Splash-proof front panel ensures durability in harsh environments
- Includes a 500-amp shunt for accurate current measurement
- Communication and expansion port for system integration
- Stores historical event data internally for diagnostics
- Battery temperature sensor input for enhanced monitoring
- CE and e-mark certified for safety and compliance
