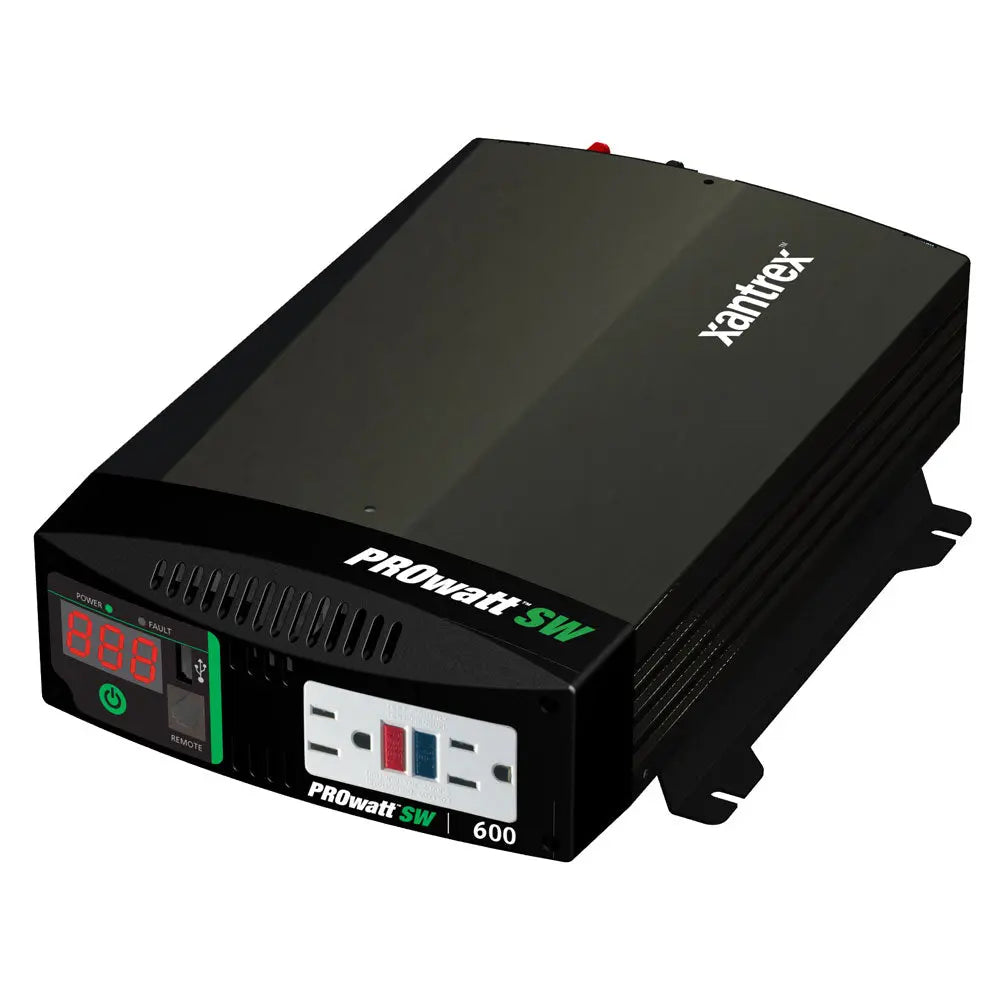

Xantrex PROwatt SW600 True Sine Wave Inverter for RV, Marine, and Commercial Use

PROwatt SW Sine Wave Inverter

PURE POWER. TRUE VALUE.

The PROwatt SW offers affordable, quality pure sine wave inverter solution for both recreational and commercial applications. PROwatt SW provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverters output when the vehicles ignition is not engaged.

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

Product Features:

• 50W Continuous, 1200W Surge Capability
• Built-in digital display for DC volts and output power
• Built-in USB port
• Dual GFCI AC receptacles for safe operation
• Heavy duty terminals for trouble-free battery connection
• Available ON/OFF remote switch (with ignition lockout)
• Two year warranty

Protection Features:

• Low voltage shutdown (10.5 Vdc)
• Low voltage alarm (11.0 Vdc)
• Over voltage protection (15.5 Vdc)
• Over load shutdown
• Over temperature shutdown
• GFCI protection

Electrical Specifications:

• Continuous Power:540W
• Surge Capacity (Peak): 1200W
• DC Input: 12 Vdc (nominal)
• AC Output Frequency: 60 0.5 Hz
• AC Output Voltage Range: 104 - 127 Vac
• USB Output: 5 V / 500 mA
• Output Waveform: True Sine Wave
• Optimum Efficiency: 90%
• No Load Current Draw: < 0.6 A
• Input Voltage Range: 10.5 - 15.5 Vdc

General Specifications:

• Operating Temperature Range: 32F - 104F (0C - 40C)
• AC Receptacle: Dual GFCI
• USB Receptacle: Single Port (Type A)
• DC Connection: Hardwire
• Recommended DC Fuse:150 A
• Digital Display: DC voltage, AC output power error codes
• Dimensions (H x W x L): 3.5 x 8.7 x 12.2 (89 x 220 x 310mm)
• Weight: 6.5lb (3.0kg)
• Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

The Xantrex PROwatt SW600 is a reliable and affordable pure sine wave inverter designed to deliver household AC power in a compact, easy-to-install package. Its 540W continuous power and 1200W surge capacity make it suitable for a wide range of applications, from recreational vehicles to commercial trucks and marine environments. The inverter features dual GFCI AC receptacles and a built-in USB port, enabling safe operation and convenient charging of USB devices. Its advanced safety features include low voltage shutdown, over voltage protection, overload shutdown, temperature shutdown, and GFCI protection, ensuring reliable operation under demanding conditions.
The PROwatt SW600's digital display provides real-time DC voltage and output power readings, aiding in system monitoring. Designed with heavy-duty terminals, it ensures trouble-free battery connections, and the optional remote ON/OFF switch with ignition lockout offers added control, especially useful in vehicle applications. The inverter's true sine wave output guarantees compatibility with sensitive electronics, variable speed power tools, and household appliances like microwaves, providing clean, stable power anywhere. Its efficient design achieves up to 90% efficiency, minimizing energy loss during operation.
Built to operate within a temperature range of 32°F to 104°F, the PROwatt SW600 is suitable for diverse environments. Its compact dimensions and lightweight construction make installation straightforward in tight spaces. The product is backed by a two-year warranty, ensuring peace of mind for users. Whether powering a mobile workspace or providing backup power on the go, the Xantrex PROwatt SW600 combines safety, convenience, and performance in a compact inverter ideal for demanding electrical loads.

Features:

• 50W continuous power with 1200W surge capacity for demanding loads

• Built-in digital display for monitoring DC volts and output power

• Integrated USB port for charging USB devices

• Dual GFCI AC receptacles for safe operation

• Heavy-duty terminals for secure battery connections

• Optional remote ON/OFF switch with ignition lockout

• Two-year warranty for reliable performance

• Advanced safety features including low voltage shutdown and over temperature shutdown

• True sine wave output for compatibility with sensitive electronics

• High efficiency up to 90% with minimal no-load current draw
