Xantrex Solar PWM 30A Charge Controller

Xantrex Solar PWM 30A Charge Controller Overview

Xantrex Solar PWM 30A Charge Controller

Xantrex PWM Charge Controller

Model: 709-3024-01

• Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
• Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
• Best-in-class PV array and battery protections
• Aesthetic flush-mount industrial design

Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.

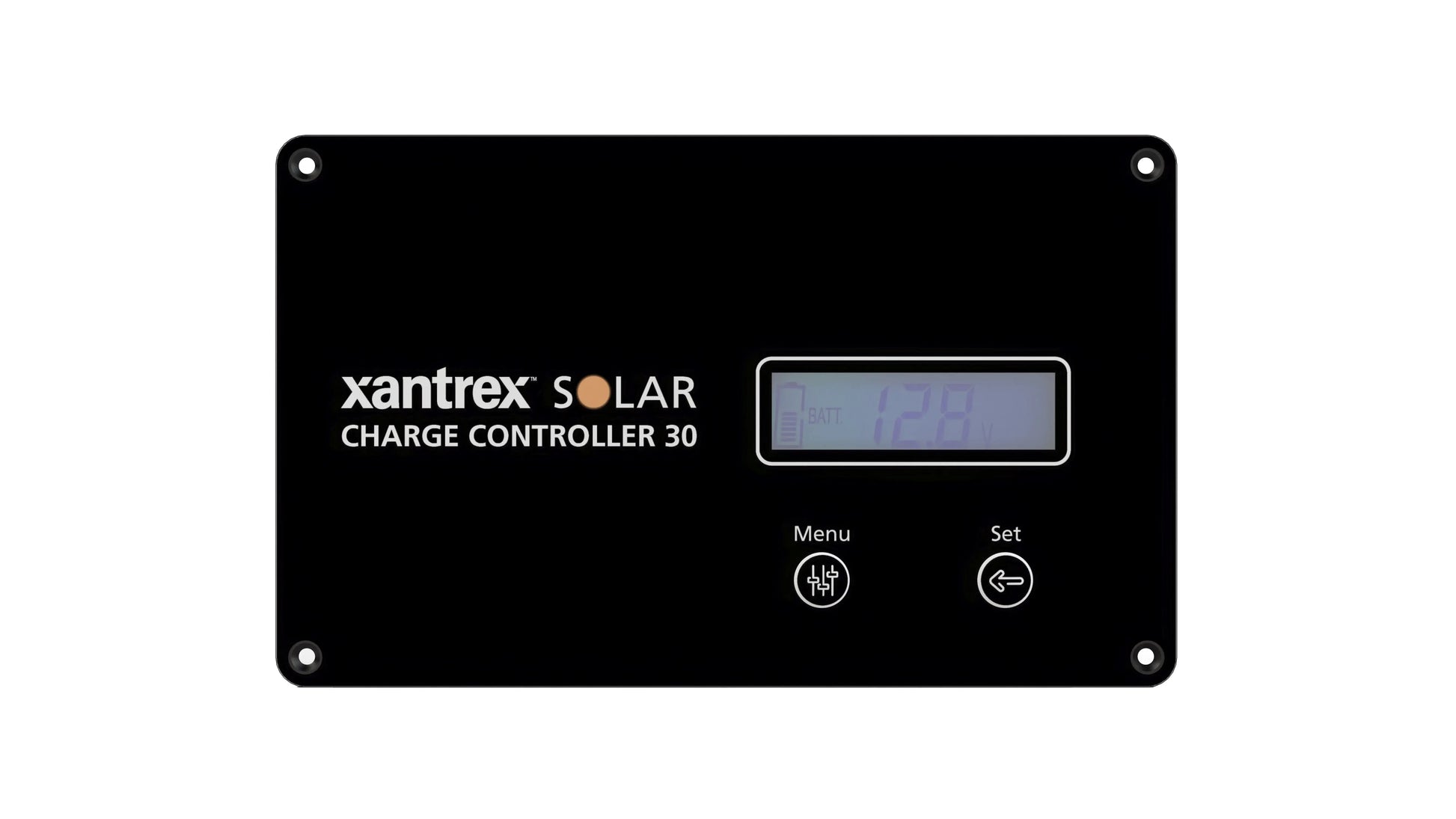

The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.

Specifications

Nominal System Voltag12/24V Auto-Detect

Battery Input Voltage Range
8V to 32V

Rated Charge Current
30A

Max. PV Short Circuit Current
30A

Max. PV Open Circuit Voltage
50A

Battery Types Supported
Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO )

elf-consumption
12V: 4.2mA
24V: 2.6mA

Temperature Compensation Coefficient
-3mV/ degC/2V

Grounding
Common negative

ENVIRONMENTAL DATA

Storage Temperature Range
-30 degC to 80 degC

Operating Temperature Range
-20 degC to 55 degC (fully rated output)

MECHANICAL DATA

Dimensions
7.03 W x 4.31 in H x 1.86 in D (178.5mm W x 109.4mm H x 47.3mm D)

Max. Cable Size (PV Array and Battery
0.63in2 (16mm2) / 6AWG

Recommended Cable Size
0.24in2 (6mm2) / 10AWG or larger

"

Reliable Performance for Solar Systems

The Xantrex Solar PWM 30A Charge Controller offers reliable performance for managing solar power in residential and commercial solar systems. Designed with precision, this controller regulates battery charging by using Pulse Width Modulation (PWM) technology, which extends battery life and maximizes energy efficiency. By preventing battery overcharge and discharging, the Xantrex controller ensures safe and consistent power delivery. Its durable construction and easy installation make it suitable for various solar setups, providing users with a dependable solution for managing and optimizing their renewable energy systems.

Advanced Features for Optimal Energy Management

Equipped with intelligent load control and comprehensive battery status monitoring, the Xantrex Solar PWM 30A Charge Controller offers advanced features that enhance solar energy utilization. It includes user-friendly indicators and diagnostics that inform users about the system's condition, preventing unexpected power failures. The controller supports multiple battery types, including sealed, gel, and flooded batteries, adapting charging profiles appropriately. This versatility not only safeguards battery health but also increases overall system efficiency, making it a perfect choice for eco-conscious users seeking reliable energy management solutions.

Easy Installation and User-Friendly Operation

The Xantrex controller is designed with user convenience in mind, featuring straightforward installation procedures and accessible connection points for solar panels and batteries. Its compact size enables flexible mounting options in various environments, whether for off-grid cabins, RVs, or small solar power systems. Once connected, the controller operates automatically, requiring minimal user intervention, yet offering manual control options for experienced users. The intuitive interface and comprehensive manual make the Xantrex Solar PWM 30A charge controller an optimal device for both beginners and professionals aiming for efficient, reliable solar energy control.
