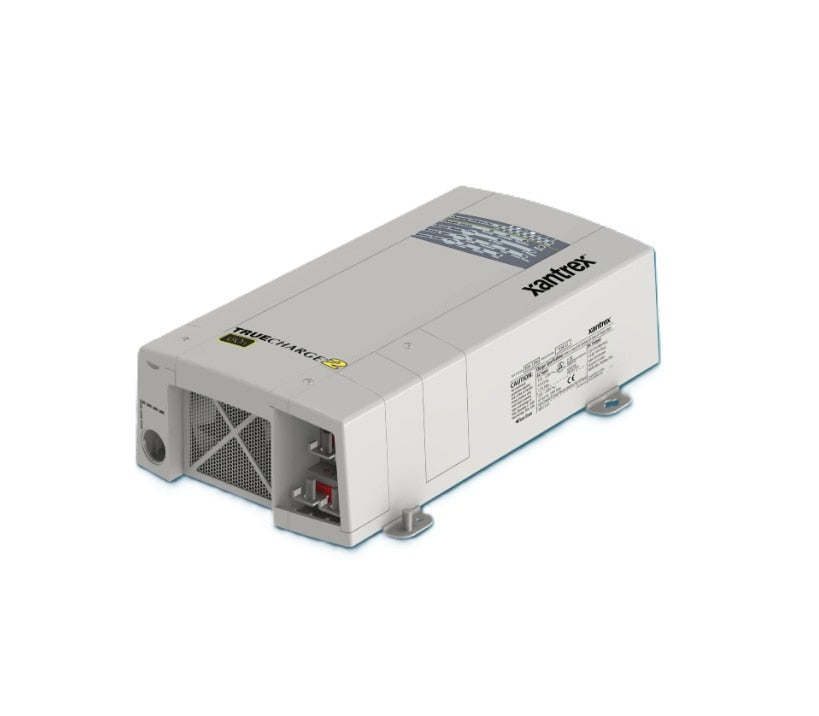

Xantrex TrueCharge2 40-Amp 3-Bank 12-Volt Battery Charger, Part 804-1240-02

Xantrex Truecharge2 40AMP 3 Bank 12v Charger New Version

Important compatibility notice: Xantrex TrueCharge2 Part 804-1240-02 is not compatible with the older 808-8040-00 remote. This charger must be used with the newer 808-8040-01 remote.

The Xantrex TrueCharge2 40-Amp 12-Volt Battery Charger delivers reliable, efficient, multistage charging for marine, commercial, recreational, and other demanding applications. Its microprocessor-controlled charging system supports flooded, gel, AGM, and lead-calcium batteries, while temperature compensation helps optimize charging performance. The three-bank design allows the charger to maintain multiple battery banks from a single compact unit.

Designed for worldwide use, the TrueCharge2 features an auto-ranging AC input that accepts 90 to 265 volts AC at 47 to 63 Hz, making it suitable for shore power, generators, and variable-quality electrical sources. Power factor correction improves charging efficiency, and the charger can recover and charge deeply discharged batteries. A drip-proof housing, certified ignition protection, reverse-polarity protection, overcharge protection, DC over-voltage protection, and temperature safeguards support dependable installation in demanding environments, including suitable gasoline engine rooms.

Installation is simplified with accessible AC and DC wiring compartments and protected battery connections. The charger provides selectable charge, float, and equalization voltages, along with compatibility for a remote battery temperature sensor. The Xantrex TrueCharge2 804-1240-02 is rated for a 40-Amp output and is recommended for battery banks of at least 80 amp-hours. A two-year warranty is included. California Proposition 65 warning: Cancer and Reproductive Harm—www.P65Warnings.ca.gov.

Features:

• 40-Amp output for 12-volt battery systems
• Three-bank charging design for maintaining multiple battery banks
• Microprocessor-controlled multistage charging algorithms
• Compatible with flooded, gel, AGM, and lead-calcium batteries
• Auto-ranging 90 to 265-volt AC input at 47 to 63 Hz
• Power factor correction for efficient charging
• Temperature-compensated charging with selectable settings or remote sensor support
• Battery equalization function and ability to charge deeply discharged batteries
• Reverse battery polarity, overcharge, DC over-voltage, and temperature protection
• Drip-proof housing and certified ignition protection
• Three positive battery connections and one negative connection
• Recommended minimum battery bank size of 80 amp-hours
• Compatible with Xantrex remote model 808-8040-01 only
