Xantrex TRUEcharge3 10A 3-Bank 24V Battery Charger – Multistage, Lithium-Compatible, Compact Power Management

TRUEcharge3 10A 3 Bank Battery Charger - 24V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

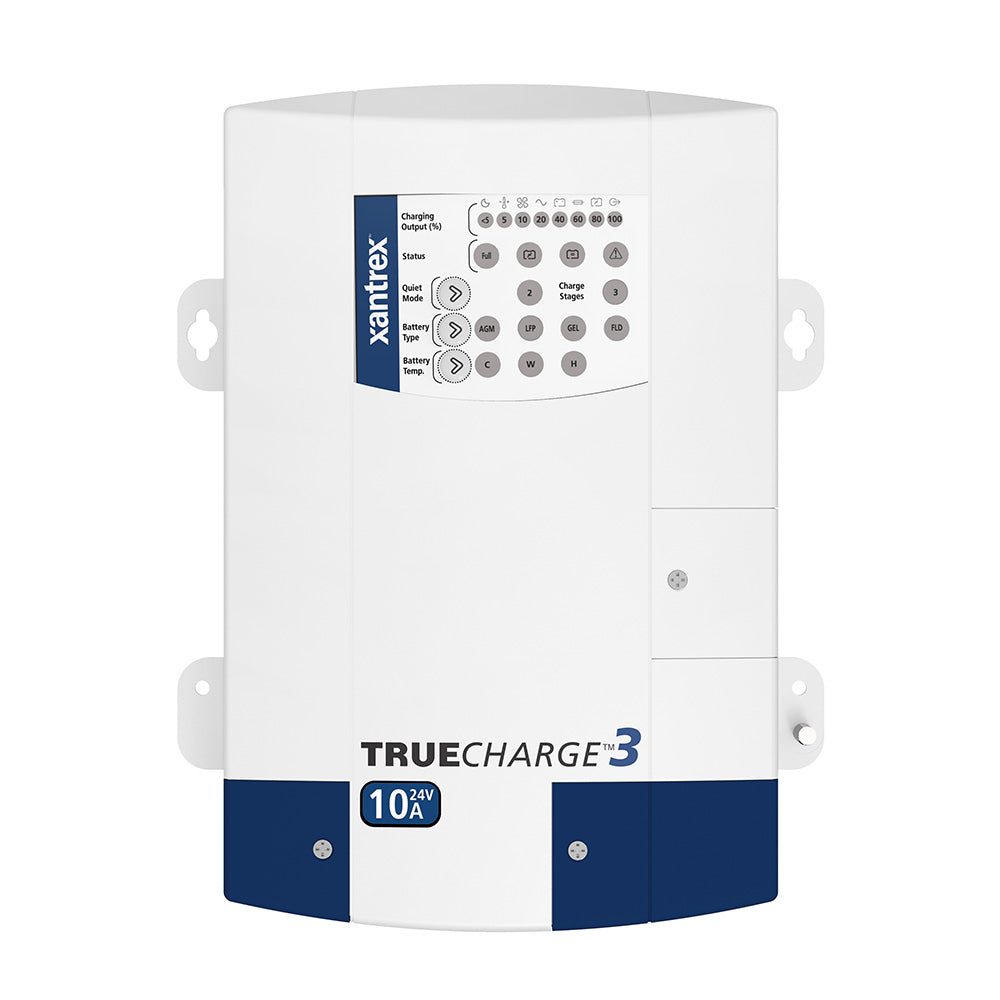

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90265 Vac, and 4763 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 7080% of the batterys state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 10 A
• Output Voltage (nominal, depending on settings): Charge 28.431.0 Vdc; Float 26.827.6 Vdc; 32 Vdc
• DC Output Connections: Three
• AC Input Voltage: 90265 Vac; 4763 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 20 Ah

General Specifications:

• Operating Temperature Range: 060C (32140F)
• Storage Temperature -4080C (-40176F)

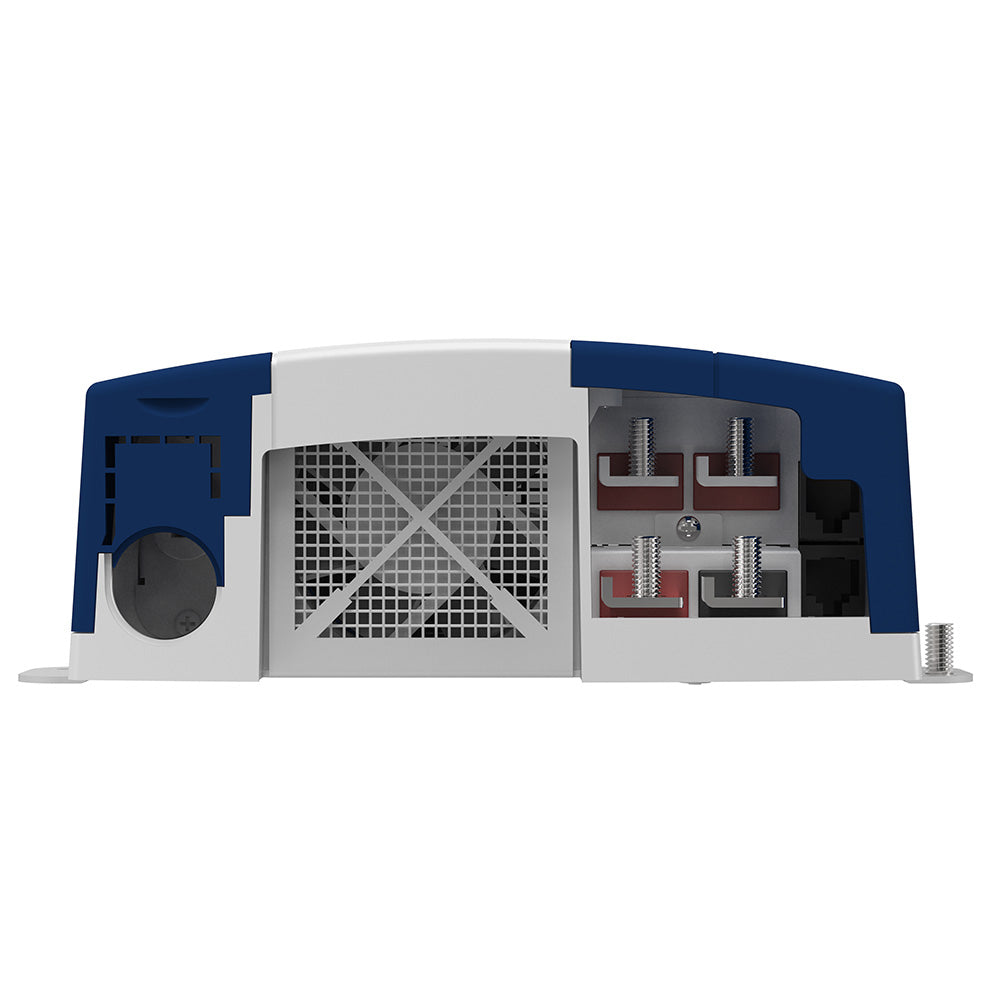

• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8)
• Weight 2.2 kg (4.8 lb)

Regulatory Approvals

Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

The Xantrex TRUEcharge3 10A 3-Bank Battery Charger is designed for versatile applications, offering reliable and efficient power management for 24V battery systems. Its compact, drip-proof design allows for flexible mounting options, making it suitable for both recreational and commercial environments. This charger is fully compatible with lithium-ion batteries, including LiFePO4, and features a state-of-the-art multistage charging process that ensures batteries are charged safely and optimally while minimizing wear over time. The charger adapts seamlessly to various global power standards, accepting input voltages from 90 to 265 VAC and frequencies from 47 to 63 Hz, making it ideal for international travel and installations with inconsistent power quality. The intuitive display can be upgraded with an optional remote panel, providing easy monitoring and control of charging status and parameters. Built-in surge and spike protection safeguard against electrical disturbances, enhancing system reliability and longevity. The TRUEcharge3 employs microprocessor-controlled algorithms with settings for two- and three-stage charging, along with a battery-equalization feature that maintains battery health and performance. It supports multiple battery types, including flooded, gel, AGM, and lithium-ion, and incorporates a parallel stacking capability that allows multiple units to work together for increased capacity, with a remote panel required for operation. The charger can recover deeply discharged batteries, bringing them back to life without damage, and features a quiet mode to reduce operational noise. Safety features include reverse polarity protection, over-voltage and over-temperature safeguards, drip-proof construction, and circuit breaker protection, ensuring safe and reliable operation in demanding environments. The three-stage charging process—bulk, absorption, and float—delivers the right amount of voltage and current at each stage to optimize battery life and performance. Its power factor correction reduces the electrical load on shore power sources, freeing up more power for other devices and decreasing the likelihood of tripping circuit breakers. With an efficiency rating exceeding 80%, the Xantrex TRUEcharge3 provides a dependable and energy-efficient solution for maintaining and charging multiple batteries, making it an essential component for RV, marine, and off-grid power systems. Its lightweight, compact form factor, and comprehensive safety and protection features ensure ease of installation and long-term durability in diverse environments.

Features:

• Microprocessor-controlled, multistage charging algorithms

• Settings for two- and three-stage charging

• Battery-equalization feature

• Supports flooded, gel, AGM, and lithium-ion batteries

• Parallel stacking capability (remote panel required)

• Ability to charge deeply discharged batteries

• Quiet mode for reduced operational noise
