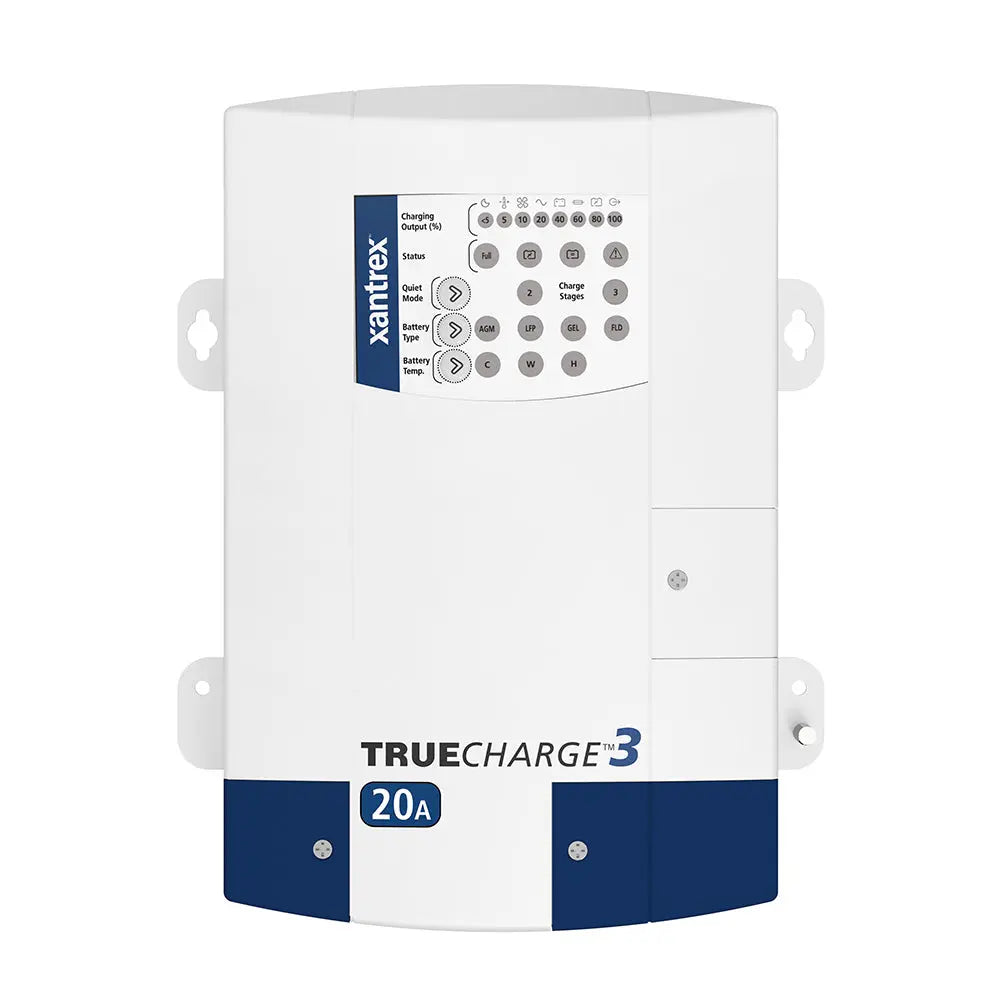

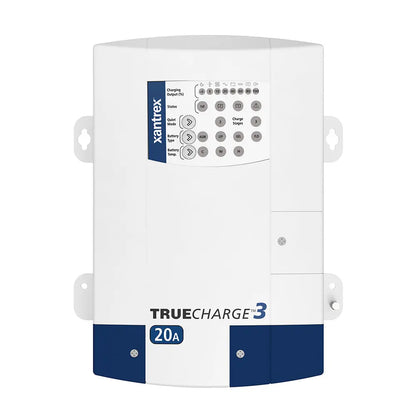

Xantrex TRUEcharge3 20A 3-Bank Battery Charger for 12V Lithium, AGM, Gel, and Flooded Batteries

TRUEcharge3 20A 3 Bank Battery Charger - 12V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90265 Vac, and 4763 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 7080% of the batterys state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 20 A
• Output Voltage (nominal, depending on settings): Charge 14.215.5; Float 13.413.8 Vdc; 16 V
• DC Output Connections: Three
• AC Input Voltage: 90265 Vac; 4763 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 40 Ah

General Specifications:

• Operating Temperature Range: 060C (32140F)
• Storage Temperature -4080C (-40176F)

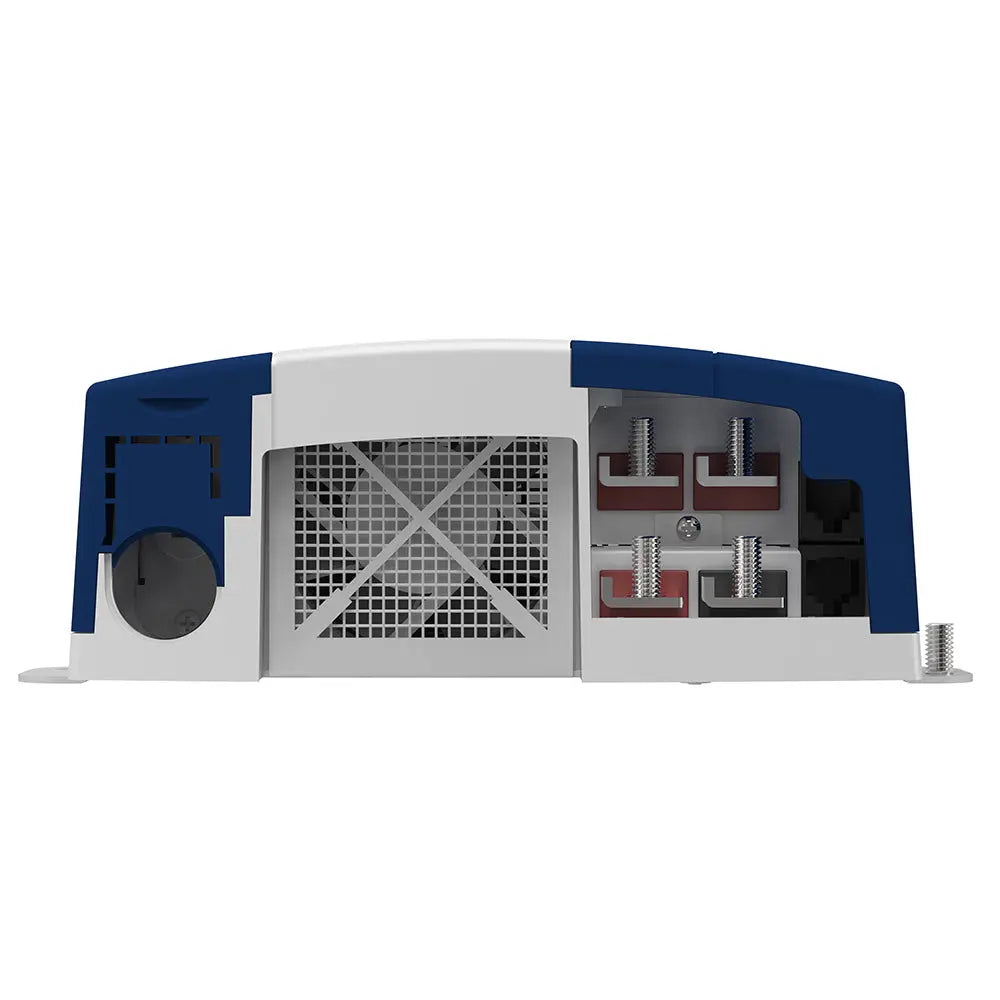

• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8)
• Weight 2.2 kg (4.8 lb)

Regulatory Approvals

Meets CSA 60335-2-29, CE Marked for the Low Voltage Directive (safety) and the EMC Directive, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

The Xantrex TRUEcharge3 20A 3-Bank Battery Charger is engineered for reliable and efficient power management in recreational and commercial applications. Its compact, drip-proof design allows versatile mounting options, making it suitable for various environments. This charger features advanced multistage, microprocessor-controlled charging algorithms that optimize battery health and longevity. It supports settings for flooded, gel, AGM, and lithium-ion batteries, providing flexibility for different power setups. The charger’s power factor correction (PFC) reduces the amount of shore power needed, freeing up additional electrical capacity and decreasing the risk of tripping circuit breakers. Its built-in surge and spike protection, along with reverse polarity safeguards, ensure safe operation across diverse power sources and conditions. The TRUEcharge3 can handle low-voltage batteries and includes an optional remote panel to enhance user interface, making it ideal for remote or hard-to-access installations. Designed to meet global safety standards, it accepts 90-265 VAC at 47-63 Hz, making international travel and varied power sources manageable. The three-stage charging process—bulk, absorption, and float—ensures batteries are charged quickly and safely while minimizing wear, extending their useful life. The charger’s efficiency exceeds 80%, delivering high performance with minimal energy waste. Its robust protection features, such as over-temperature, over-voltage, and circuit breaker protections, contribute to increased durability and reliability. Whether maintaining a deep cycle battery bank for RVs, boats, or off-grid systems, the Xantrex TRUEcharge3 ensures optimal power delivery, safety, and longevity, making it a valuable addition to any mobile or fixed power system.

Features:

• Microprocessor-controlled, multistage charging algorithms for optimal battery health

• Supports two- and three-stage charging modes

• Battery-equalization feature for balanced charging

• Compatible with flooded, gel, AGM, and lithium-ion batteries

• Parallel stacking capability with remote panel (sold separately)

• Capable of charging batteries with extremely low voltage

• Quiet mode for silent operation
