Xantrex TRUEcharge3 40A 3 Bank Battery Charger for 12V Lithium and Lead-Acid Batteries

TRUEcharge3 40A 3 Bank Battery Charger - 12V

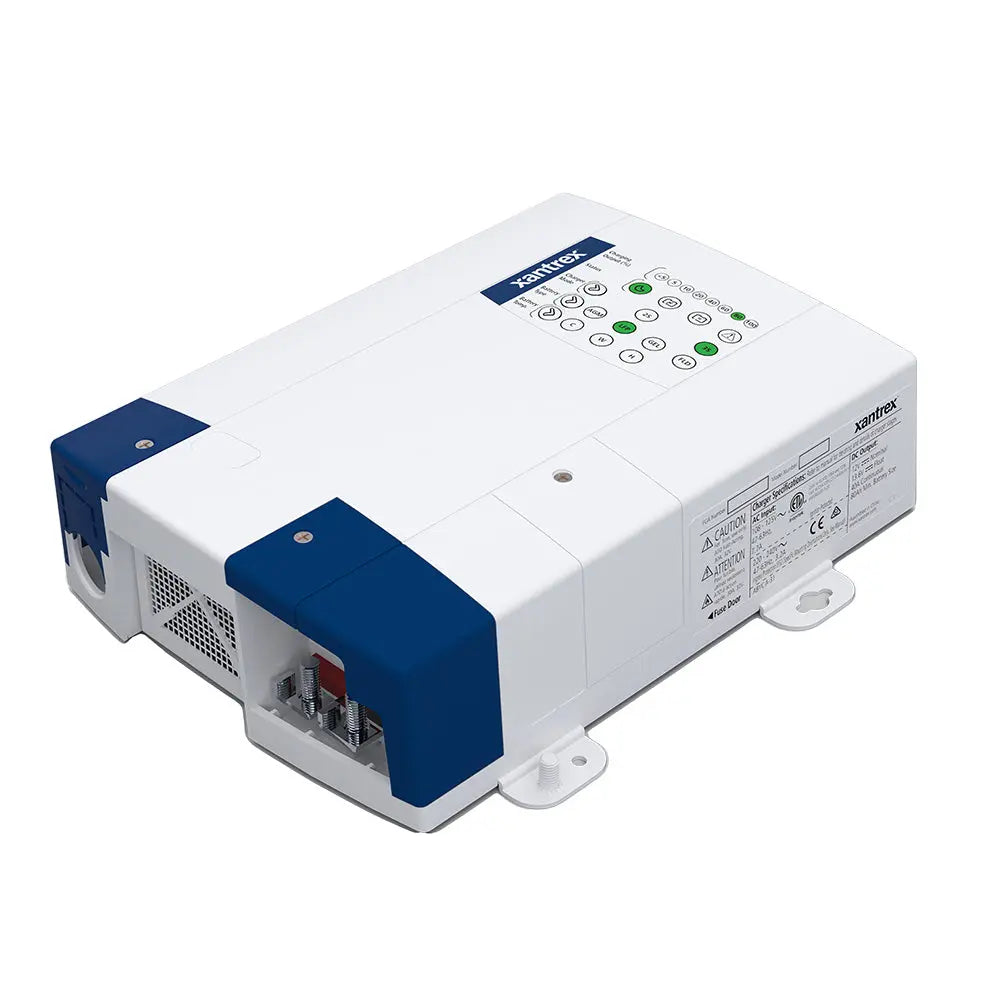

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

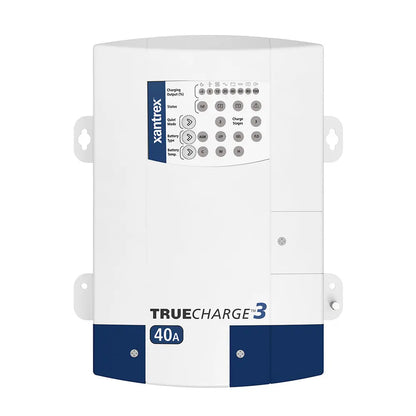

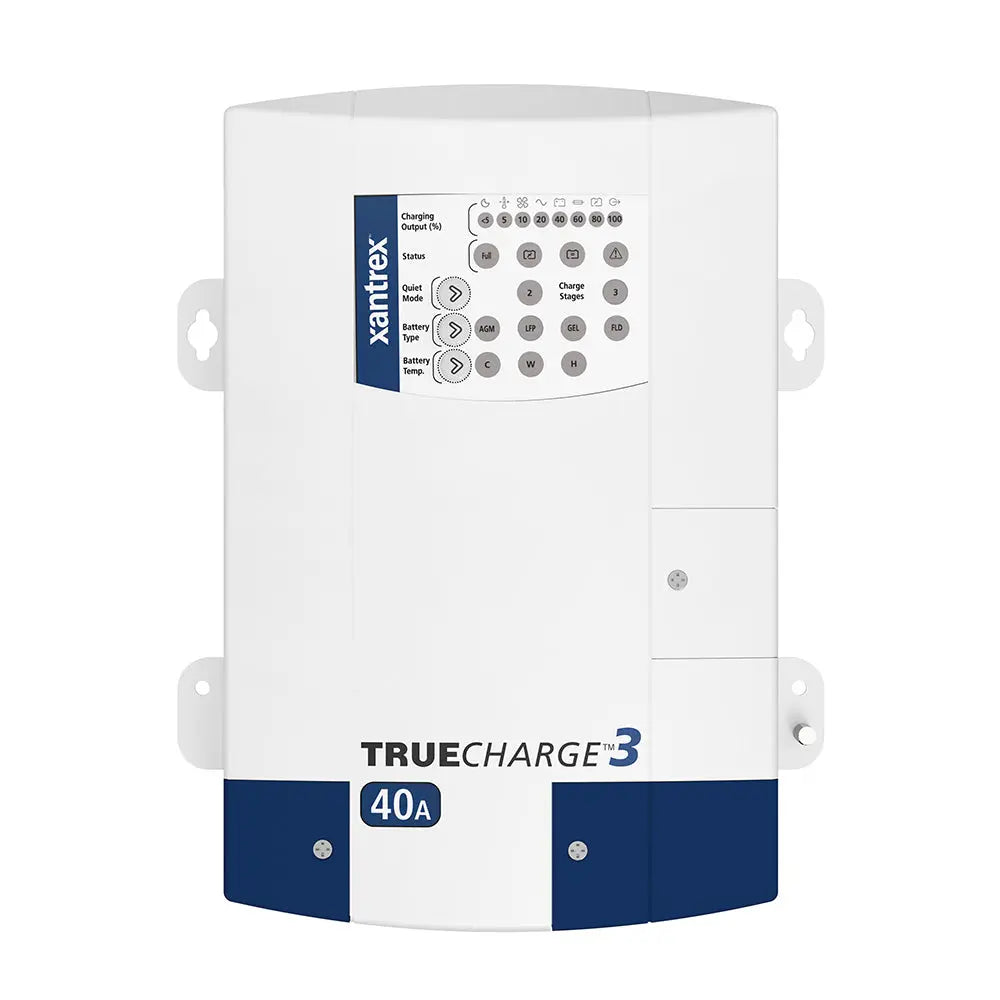

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90265 Vac, and 4763 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 7080% of the batterys state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 2030% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 40 A
• Output Voltage (nominal, depending on settings): Charge 14.215.5; Float 13.413.8 Vdc; 16 V
• DC Output Connections: Three
• AC Input Voltage: 90265 Vac; 4763 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 80 Ah

General Specifications:

• Operating Temperature Range: 060C (32140F)
• Storage Temperature -4080C (-40176F)

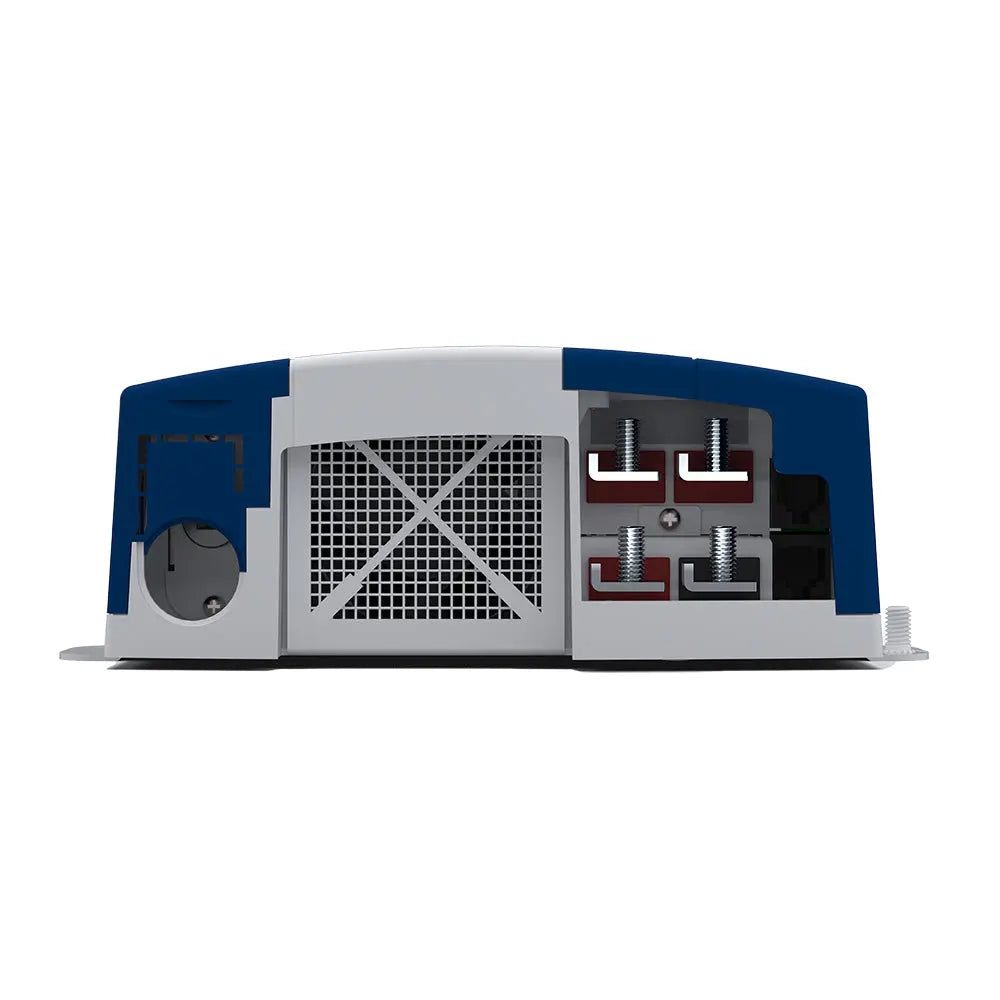

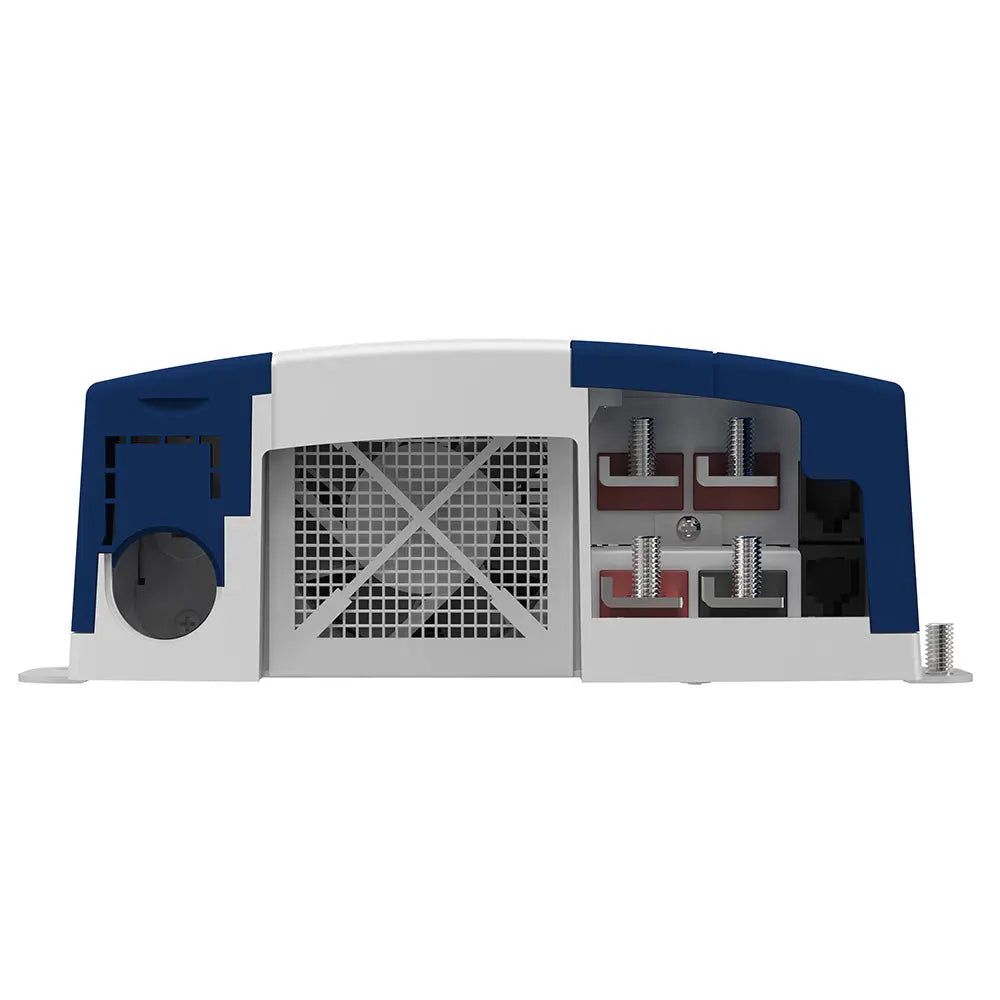

• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8)
• Weight 2.2 kg (4.8 lb)

Regulatory Approvals

Meets CSA 60335-2-29, CE Marked for the Low Voltage Directive (safety) and the EMC Directive, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

The Xantrex TRUEcharge3 40A 3 Bank Battery Charger offers a reliable and efficient charging solution for both recreational and commercial applications. Its compact, drip-proof design allows versatile mounting options, making it suitable for various environments. This charger is compatible with a wide range of battery types, including flooded, gel, AGM, and lithium-ion batteries, ensuring optimal performance for your power needs. The advanced microprocessor-controlled multistage charging algorithms deliver precise, safe, and fast charging while minimizing battery wear and extending lifespan. With three automatic stages—bulk, absorption, and float—the charger maintains batteries at full capacity, efficiently replenishing drained batteries and preventing overcharging.

Designed for global use, the TRUEcharge3 accepts input voltages ranging from 90 to 265 VAC at 47-63 Hz, making it ideal for international travel and handling inconsistent power supplies. Its power factor correction reduces the electrical load on shore power sources, freeing up more power for your other devices and decreasing the risk of tripping breakers. The charger includes features such as battery equalization, settings for different battery chemistries, and the ability to recover batteries with extremely low voltage. Safety is prioritized with integrated protections against reverse polarity, surges, spikes, over-temperature, and over-voltage events, ensuring reliable operation in demanding environments.

Additional features include an optional remote panel for enhanced visibility, quiet mode operation for noise-sensitive environments, and parallel stacking capability for increased charging capacity. The charger’s efficiency exceeds 80%, making it an energy-conscious choice. Its compact dimensions and lightweight design facilitate easy installation without sacrificing performance. Certified to meet CSA, UL, IEC, FCC, and other international standards, the Xantrex TRUEcharge3 is a robust solution for maintaining battery health and ensuring dependable power supply across diverse applications.

Features:

• Microprocessor-controlled, multistage charging algorithms for precise battery management

• Automatic three-stage charging: bulk, absorption, and float for optimal battery health

• Battery-equalization feature to balance cell voltage and extend battery life

• Compatible with flooded, gel, AGM, and lithium-ion (LiFePO4) batteries

• Global input voltage compatibility from 90 to 265 VAC at 47-63 Hz

• Power factor corrected (PFC) design reduces electrical load and improves efficiency

• Remote panel capability for enhanced monitoring (remote panel sold separately)

• Ability to charge batteries drained to extremely low voltage levels

• Built-in surge and spike protection for reliable operation

• Quiet mode for silent operation in sensitive environments

• Parallel stacking capability for increased charging capacity

• Compact and lightweight design for easy installation and versatile mounting options

• Certified to international safety and efficiency standards, including CSA, UL, IEC, and FCC
