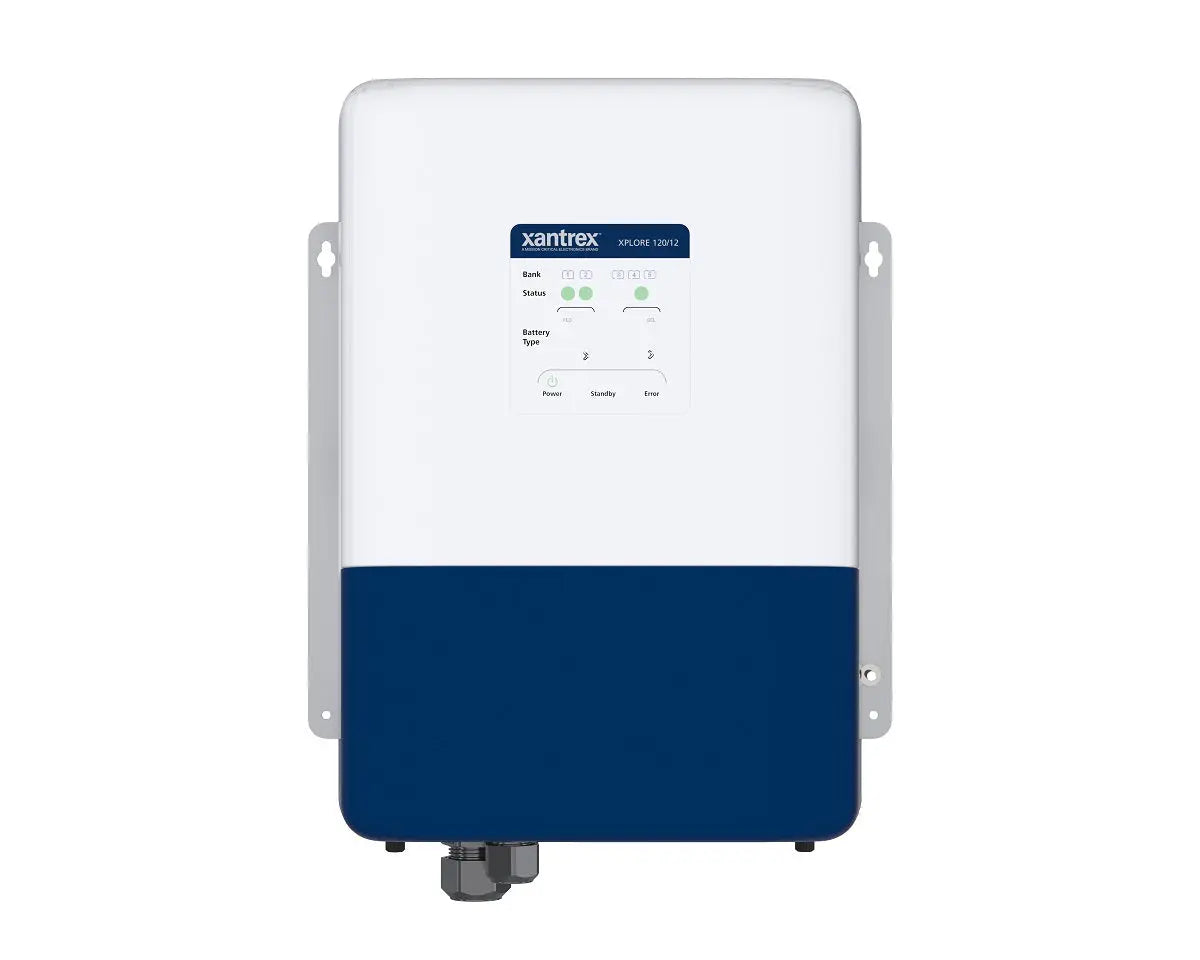

Xantrex Xplore Battery Charger 120 Amp 6 Bank 12v Charger

Xantrex Xplore: Advanced 120 Amp 6 Bank 12V Battery Charger

Xantrex Xplore Battery Charger 120 Amp 6 Bank 12v Charger

Xantrex Xplore battery Charger 12v 120 Amp

Model: 819-0120-12

• 6 Battery Banks and Dual-Chemistry Charging
• Xantrex Lithium and Custom Battery Charging
• NMEA 2000 Connectivity
• Xantrex App Connectivity
• Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
• Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
• Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
• Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
• Dead Battery Charging: ability to charge a battery as low as 0V back to full-charge
• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.

Specifications

Max Total BAT1-6 DC Output Current120A

Max Total BAT1-2 DC Output
Current 5 to 120A (selectable)

Max Total BAT3-6 DC Output
Current 5 to 40A (selectable)

DC Output Voltage
12Vdc (nominal)

DC Output Connections
6

AC Input Voltage (Auto Ranging)
120Vac / 230Vac (nominal), 80 to 265 Vac

Power Factor at Full Charge Rate
> 98%

Charging Modes
3-Stage, 2-Stage, Constant Voltage

Supported Battery Types
AGM, FLD, GEL, Xantrex LFP, Custom

Equalization (FLD Battery Only)
Yes

GENERAL SPECIFICATIONS

Operating Temperature
4 to 140oF (-20 to 60oC), with output derated above 122oF (50 degC)

Storage Temperature
40 to 176oF (-40 to 80oC)

Operating Humidity
5 to 95% RH, non-condensing

AC Input Terminal Connection
3-position tool-free spring clamp terminal

DC Output Terminal Connection
BAT1-2: Two M6 stud terminals

L x W x H Charger
16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm)

Ingress Protection (IP) Rating Charger:
IP-32 (vertical)

REGULATORY APPROVALS

Safety
ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement)

EMC
47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B)

Ignition Protection
SAE J1171, ABYC C-1500

What's in the Box:

• XPLORE Charger unit
• Xantrex BLE Module (PN: 808-0889)
• Owner's Guide and extra labels

High-Performance Charging for Multiple Batteries

The Xantrex Xplore battery charger offers a robust 120 Amp output across six independent banks, making it ideal for simultaneously charging multiple 12V batteries. This capability allows users to efficiently manage battery systems for boats, RVs, or off-grid power setups. Designed to provide consistent, reliable power, the Xantrex Xplore ensures each battery receives optimal charge without interference. Its advanced multi-bank design reduces charging time and extends battery life, making it a preferred choice for professionals and enthusiasts who demand performance and durability from their charging equipment.

Innovative Safety Features and Smart Technology

Equipped with cutting-edge smart charging technology, the Xantrex Xplore battery charger monitors battery conditions to deliver safe and efficient power. Features like automatic temperature compensation, overcharge protection, and short-circuit prevention ensure batteries are charged safely. The charger adapts to varying battery types and conditions, maximizing energy efficiency while safeguarding your investment. This intelligent management system not only protects the batteries but also enhances overall charger reliability and longevity, providing users peace of mind during every charging cycle.

Compact, User-Friendly Design for Easy Integration

The Xantrex Xplore charger combines powerful performance with a compact footprint, making it easy to install in a variety of settings. Its intuitive interface and LED status indicators simplify the monitoring and management process, allowing users to quickly assess charge levels and system health. Designed for durability, the charger withstands harsh environments, making it suitable for marine and recreational applications. The easy-to-use design, paired with flexible mounting options, ensures seamless integration into existing battery systems without compromising space or accessibility.
